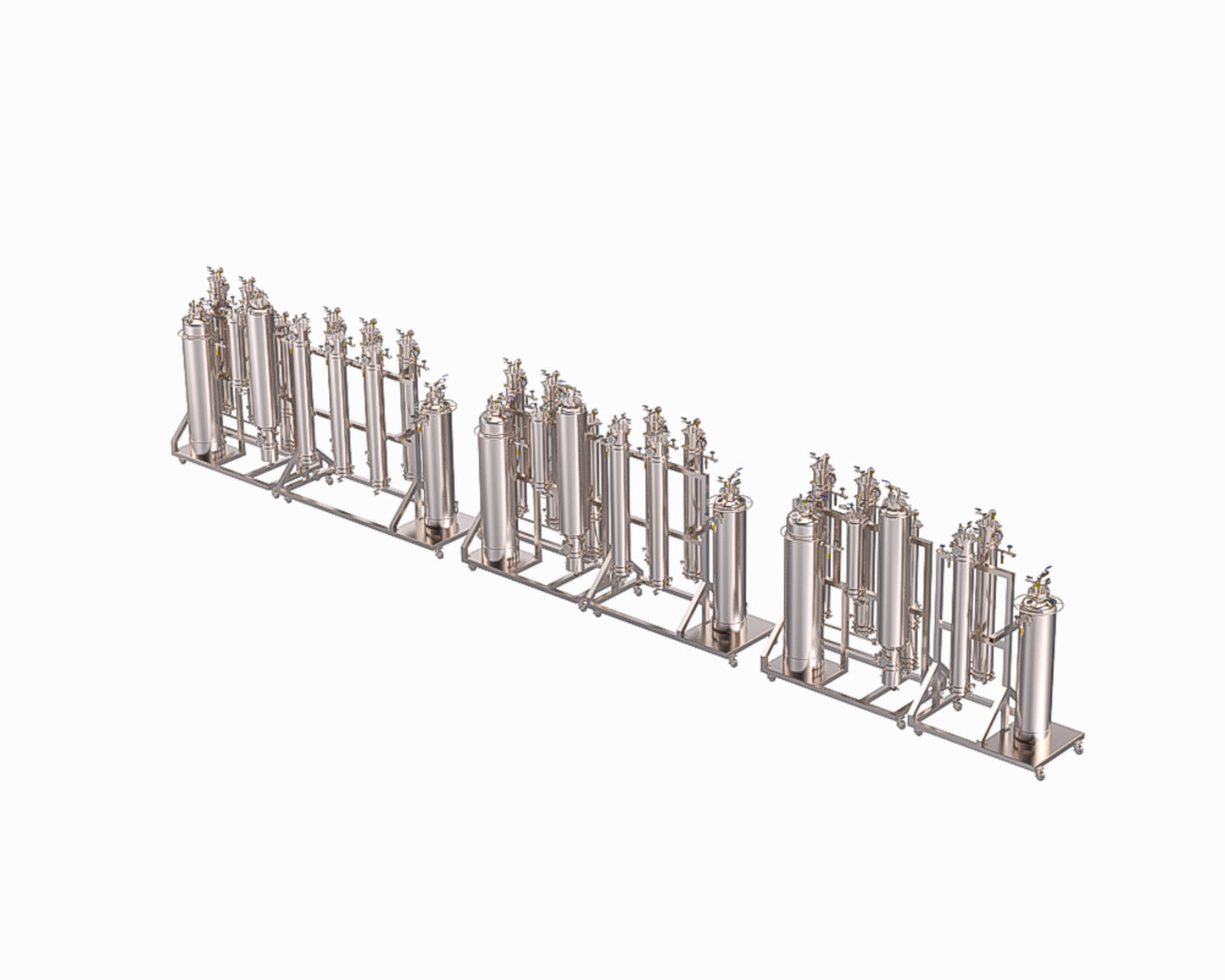

Material Column Rack (Secondary Material Vessel Rack)
ABOUT THIS PART
Stand-alone stainless rack that adds material column positions to a closed loop hydrocarbon system, so you soak one set of columns while the other set drains. 2x $19,000. 4x $33,000. 6x $45,000. Each configuration is also sold with a 100 LB ASME solvent tank already mounted on it.
SPECIFICATIONS
| 2x rack, NB-HC-MC-RACK-2 | $19,000 |
|---|---|
| 2x rack with 100 LB ASME solvent tank, NB-HC-MC-RACK-2-SOL | $47,750 |
| 4x rack, NB-HC-MC-RACK-4 | $33,000 |
| 4x rack with 100 LB ASME solvent tank, NB-HC-MC-RACK-4-SOL | $61,750 |
| 6x rack, NB-HC-MC-RACK-6 | $45,000 |
| 6x rack with 100 LB ASME solvent tank, NB-HC-MC-RACK-6-SOL | $73,750 |
| Solvent tank uplift | $28,750, the same as the tank bought on its own |
| Column size | 10 lb, 6 in x 48 in with a 7 in jacket |
| Material | 304L stainless, welded in Bend, Oregon |
| Mounting | Free standing, or bolted to the main extraction skid |
| Solvent tank option | 100 LB ASME Section VIII Division 1, U stamp, DCR-200101-R1, CRN R8694.5 |
| Crate | 48 in wide x 60 in long x 80 in tall |
| Shipping weight | 2,000 lb, LTL freight |
| Solvent tank crating | The 100 LB tank ships in the rack crate, so a -SOL order is one crate, not two |
| Shipping | LTL freight, quoted after the crate is measured |
The rack can stand on its own or be bolted to the main extraction skid for stability. Sized for 10 lb material columns, which are the 6 in x 48 in jacketed columns used on N.B. Oler systems.
PRICING
| Configuration | SKU | Rack only | With 100 LB ASME solvent tank |
| 2x 10 LB material columns | NB-HC-MC-RACK-2 | $19,000 | $47,750 |
| 4x 10 LB material columns | NB-HC-MC-RACK-4 | $33,000 | $61,750 |
| 6x 10 LB material columns | NB-HC-MC-RACK-6 | $45,000 | $73,750 |
The solvent tank versions carry the -SOL suffix and add exactly $28,750 to the rack price, which is the list price of the 100 LB ASME solvent tank bought on its own. There is no bundle discount and no hidden markup: it is the rack price plus the tank price. Order the tank with the rack and it arrives mounted, plumbed to the rack and tested as one assembly rather than as two crates you have to marry up on site. The 100 LB tank ships in the rack crate, so a -SOL order arrives as one crate, not two.
BUILT, NOT RESOLD
- Fabricated in Bend, Oregon. All stainless on the rack is welded here.
- The 100 LB solvent tank option is an ASME Section VIII Division 1 vessel with the U stamp, design report DCR-200101-R1, registered in Canada as CRN R8694.5.
- The rack is welded to the same drawings as the columns it carries, so a 6 in x 48 in jacketed column off an N.B. Oler system drops straight in without adapters or re-plumbing.
FITS
- N.B. Oler 20 LB and 40 LB Double Barrel systems.
- Holds 10 lb material columns, meaning 6 in x 48 in jacketed columns with a 7 in jacket.
- Bolts to the main skid or stands alone on its own feet.
- Butane, propane and blends. Not an ethanol product.
- If you run a system built by someone else, call 541-330-6409 with your column dimensions and manifold sizes before ordering.
LEAD TIME AND TERMS
- Built to order. Call 541-330-6409 for the current lead time on the configuration you want.
- Paid in full before it ships. We do not offer net 30 or purchase order terms.
- Ships LTL freight, in a crate 48 in wide x 60 in long x 80 in tall weighing 2,000 lb. The 100 LB solvent tank option ships in that same crate. Freight is quoted and invoiced after the crate is measured, not charged at checkout.
CONSUMABLES
Every added column position adds consumables on the same schedule as the rest of the system: Viton gaskets every 3 to 6 months, cryogenic PRVs every 3 to 6 months, 6 in high pressure tri clamps every 6 months with their M12 bolt kits, and 6 in filter socks and sintered filters per column.
| FITS | N.B. Oler 20 LB and 40 LB Double Barrel hydrocarbon systems. Holds 10 lb material columns, meaning 6 in x 48 in jacketed columns with a 7 in jacket. Bolts to the main skid or stands alone. Butane, propane and blends, not ethanol. For a system built by someone else, call with your column and manifold sizes first. |
|---|
▦ IN YOUR MANUAL
This part appears in the operator manual that ships with your system. The QR code there links to this page.
◈ REFERENCE FOR THIS PART
COMMON QUESTIONS
What does the rack actually do for me?
It adds column positions, so one set of columns soaks while the other set drains and your recovery side stops waiting on a load.
What is the difference between the two prices on each size?
The higher price adds a 100 LB ASME solvent tank, mounted and plumbed to the rack. The uplift is $28,750, exactly what the tank costs on its own.
Can I bolt it to my existing skid?
Yes. It stands alone on its own feet or bolts to the main extraction skid for stability.
Which columns does it hold?
10 lb material columns, which are 6 in x 48 in with a 7 in jacket.
How does it ship?
LTL freight, in a crate 48 in wide x 60 in long x 80 in tall weighing 2,000 lb. Freight is quoted and invoiced after the crate is measured and nothing is charged at checkout.
Does the solvent tank ship in its own crate?
No. On the -SOL configurations the 100 LB ASME solvent tank ships in the same crate as the rack, mounted and plumbed, so you receive one crate rather than two.
What is the lead time?
Built to order. Call 541-330-6409 for the current lead time on your configuration.
Do you offer net 30 or purchase order terms?
No. Racks are paid in full before they ship.
