6 in. nylon filter sock, tie top with sewn-on ties
FB-6-24-80

6 in. Filter Sock, 80 Micron Nylon Mesh, Tie Top, 24 and 48 in.

$44.00BACKORDERED
BACKORDERED. Ship date to be confirmed. You can order now and it ships as soon as it is in.
8 sizes, $44.00 to $2,500.00
SELECT SIZE AND PACK

ABOUT THIS PART

A double stitched, 80 micron food grade nylon filter sock with a tie top for 6 in. material columns, in 24 and 48 in. nominal lengths. It is cut long on purpose so a packed sock can still be tied off, and it is washable and reusable.

SPECIFICATIONS

Mesh80 micron food grade nylon
Fits6 in material columns only
Lengths24 in and 48 in nominal, cut longer on purpose so a packed sock can be tied

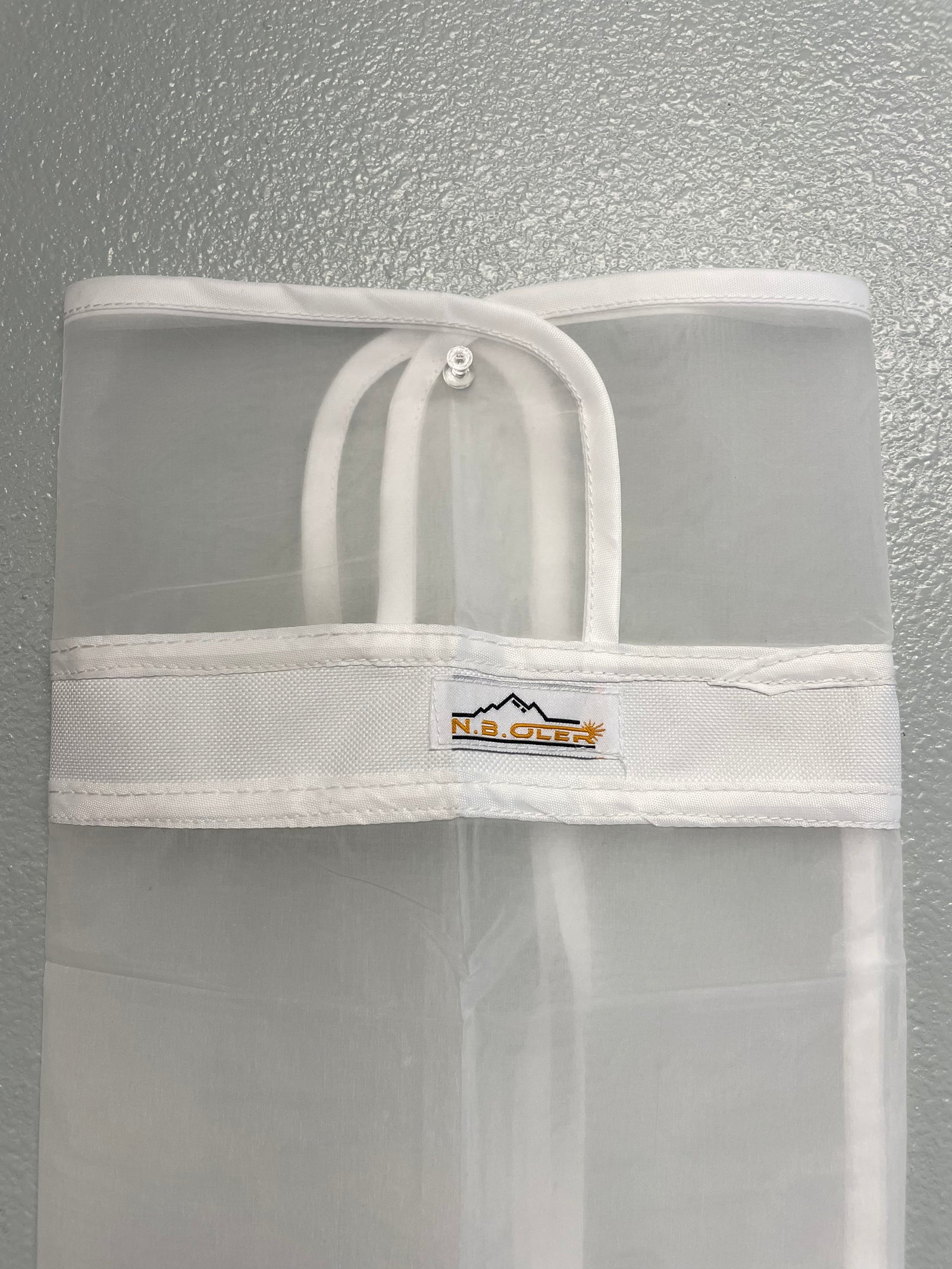

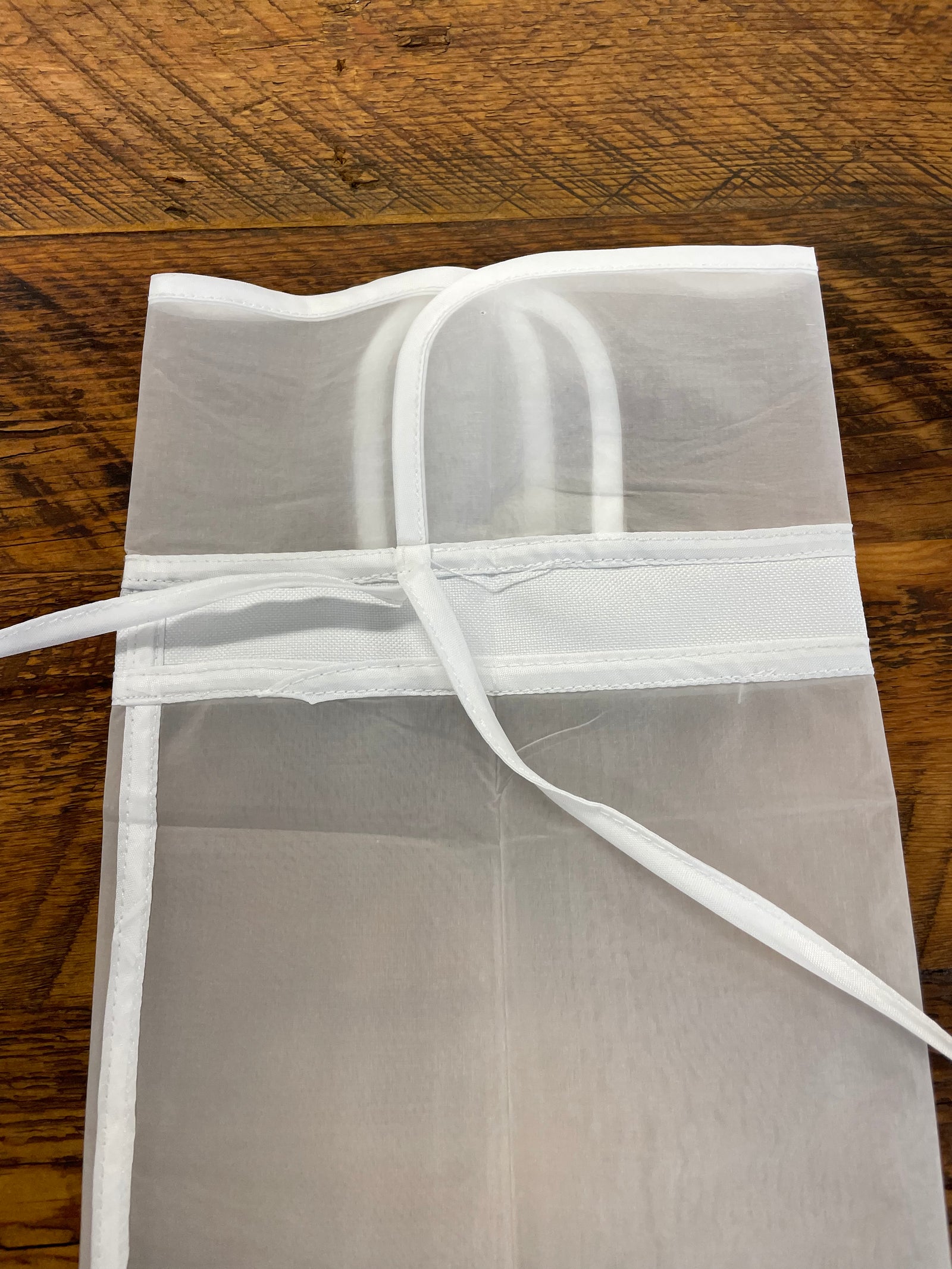

ClosureTie top, two sewn-on ties, not a drawstring

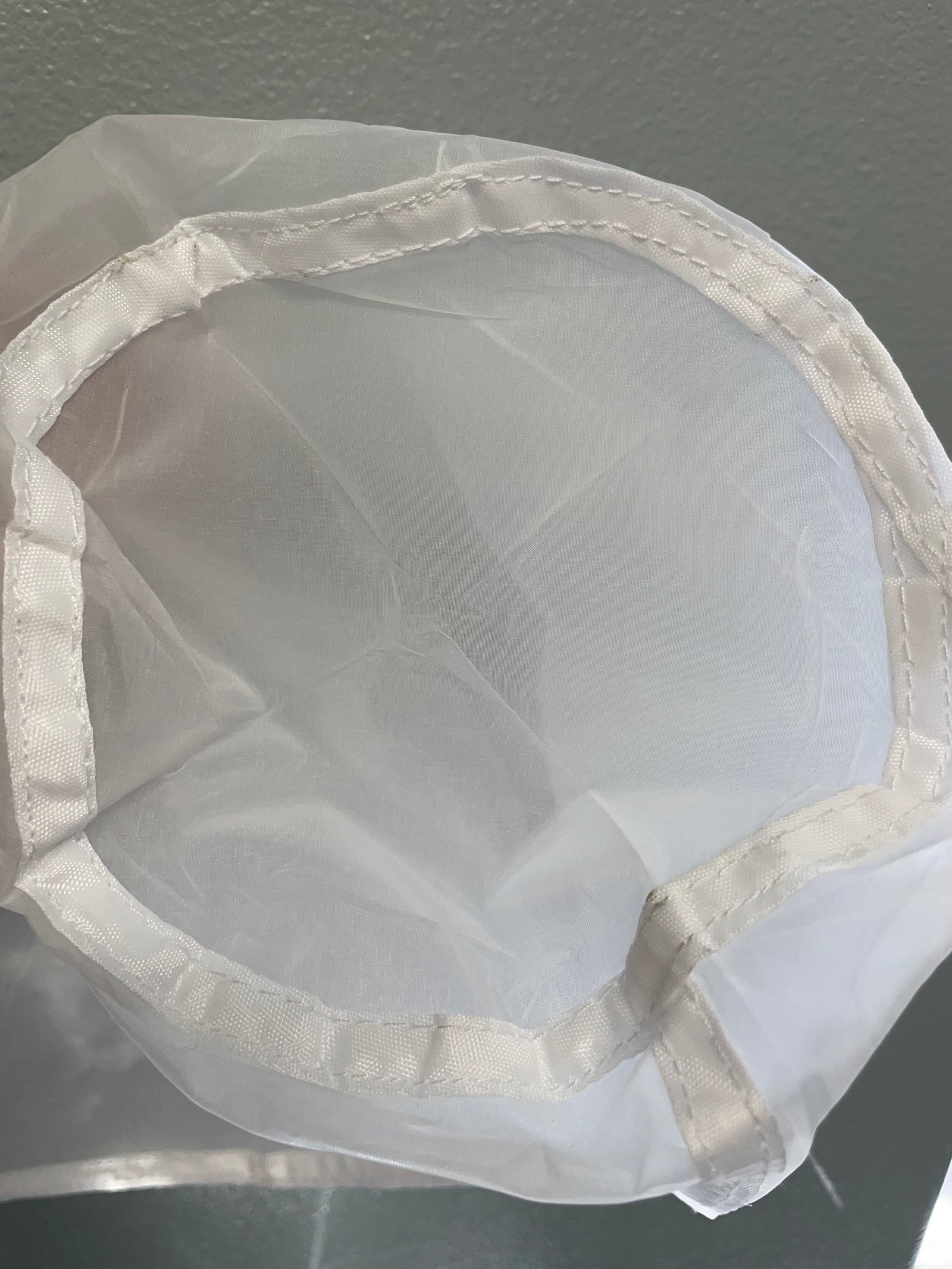

StitchingDouble stitched throughout, including the bottom seam
ReuseWashable and reusable
Sold asSingle, or packs of 10, 20 or 50
Per sock, 6 x 24$44.00 single, $42.00 at 10, $41.00 at 20, $40.00 at 50
Per sock, 6 x 48$55.00 single, $52.00 at 10, $51.00 at 20, $50.00 at 50
Shipping weight2 lb per sock
TECHNICAL DETAILS

An 80 micron food grade nylon filter sock for 6 inch material columns, double stitched throughout, with a tie top rather than a drawstring. Buy one, or buy a pack of 10, 20 or 50 and the price per sock comes down. Also searched as a filter bag, a material sock or a column sock.

Price per sock, and what a pack saves

Most shops run through these ten at a time, which is why the packs exist. The per-sock price is what to compare.

6 in x 24 in Pack price Per sock SKU
Single $44.00 $44.00 FB-6-24-80
10 pack $420.00 $42.00, saves $20.00 FB-6-24-80-10
20 pack $820.00 $41.00, saves $60.00 FB-6-24-80-20
50 pack $2,000.00 $40.00, saves $200.00 FB-6-24-80-50
6 in x 48 in Pack price Per sock SKU
Single $55.00 $55.00 FB-6-48-80
10 pack $520.00 $52.00, saves $30.00 FB-6-48-80-10
20 pack $1,020.00 $51.00, saves $80.00 FB-6-48-80-20
50 pack $2,500.00 $50.00, saves $250.00 FB-6-48-80-50

Savings are against buying the same count as singles. Need an odd quantity, or more than 50? Call the shop at 541-330-6409.

Sizes

Two nominal sizes: 6 in x 24 in and 6 in x 48 in. Each is cut a little longer than its nominal length, on purpose. A sock cut to the exact column height comes up short the moment it is packed full, so the extra length is what lets you pack tight and still have something to tie.

How it loads

  1. Stand a section of 6 inch PVC on the bench and drop the sock in.
  2. Flip the top back over the outside of the pipe.
  3. Pack your flower, then tie the string around the end and cinch it tight.
  4. Freeze the whole thing. On run day it drops straight into the material column, already dense.

Two 24 inch socks tie together like nunchucks and load as one 48 inch column. That is the way around a ceiling too low to lift a full 48 inch sock over a column.

Fitment

  • Fits 6 inch material columns on N.B. Oler 10, 20 and 40 LB systems, and any 6 inch material column of the same bore.
  • The 24 inch also suits molecular sieve beads, which keeps the beads contained instead of loose in the housing.
  • Does not fit 4 inch or 8 inch columns. Six inch only.

Reuse, and when to retire one

  • Washable and reusable. Wash a used sock in a 20 L rotovap and you also reclaim what is left on the mesh.
  • Service life is a house policy call. Some shops retire a sock weekly for contamination control, others run the same sock six months.
  • Every seam is double stitched, including the bottom seam, which is the one that fails on a loaded sock.
  • 80 micron is the coarse stage by design. The sintered discs downstream run 50 and 20 micron on the material columns, and the sock exists to keep bulk material off them. See Sintered Filter Technical Specifications.

Try one free

Run it against whatever you are using now. Pack a column, freeze it, run it, wash it, run it again. Email info@nboler.com with your shipping address, or call 541-330-6409. One 6 x 24 per shop, US addresses, postage on us.

Manufactured to N.B. Oler drawings and specification, stocked in Bend, Oregon.

FITS6 in material columns on N.B. Oler 10, 20 and 40 LB hydrocarbon systems, and any 6 in material column of the same bore. The 24 in also suits molecular sieve beads. Two 24 in socks tie together to load a 48 in column, which is the option for shops without the ceiling height to lift a full 48 in sock. Does not fit 4 in or 8 in columns. Sold as a single sock or in packs of 10, 20 or 50, and the per-sock price comes down with the pack size.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Sintered Filter Technical Specifications →
Micron selection and the cleaning procedure for the filters this sock protects.
Molecular Sieves →
What the sieve is doing, and why the 24 in sock is the tidy way to change beads.
What CRC Media Should You Use? →
The stage after the sock, and what it has to catch.

COMMON QUESTIONS

How do I pre-pack a column?

Stand a section of 6 in PVC on the bench, drop the sock in, flip the top over the outside of the pipe, pack your flower, tie it off tight, and freeze it. On run day it drops straight into the material column already frozen and dense.

Why is the sock longer than its name?

A sock cut to the exact column height comes up short once it is packed full. The extra length lets you pack tight and still tie off.

Can I use two 24 inch socks instead of one 48?

Yes. Tie two 24 inch socks together and load them as one 48 inch column, for a shop without the ceiling height to lift a full 48 inch sock.

Can I try one before I order?

Yes. We will send one 6 x 24 free, postage on us, one per shop, US addresses. Email info@nboler.com with your shipping address, or call 541-330-6409.
