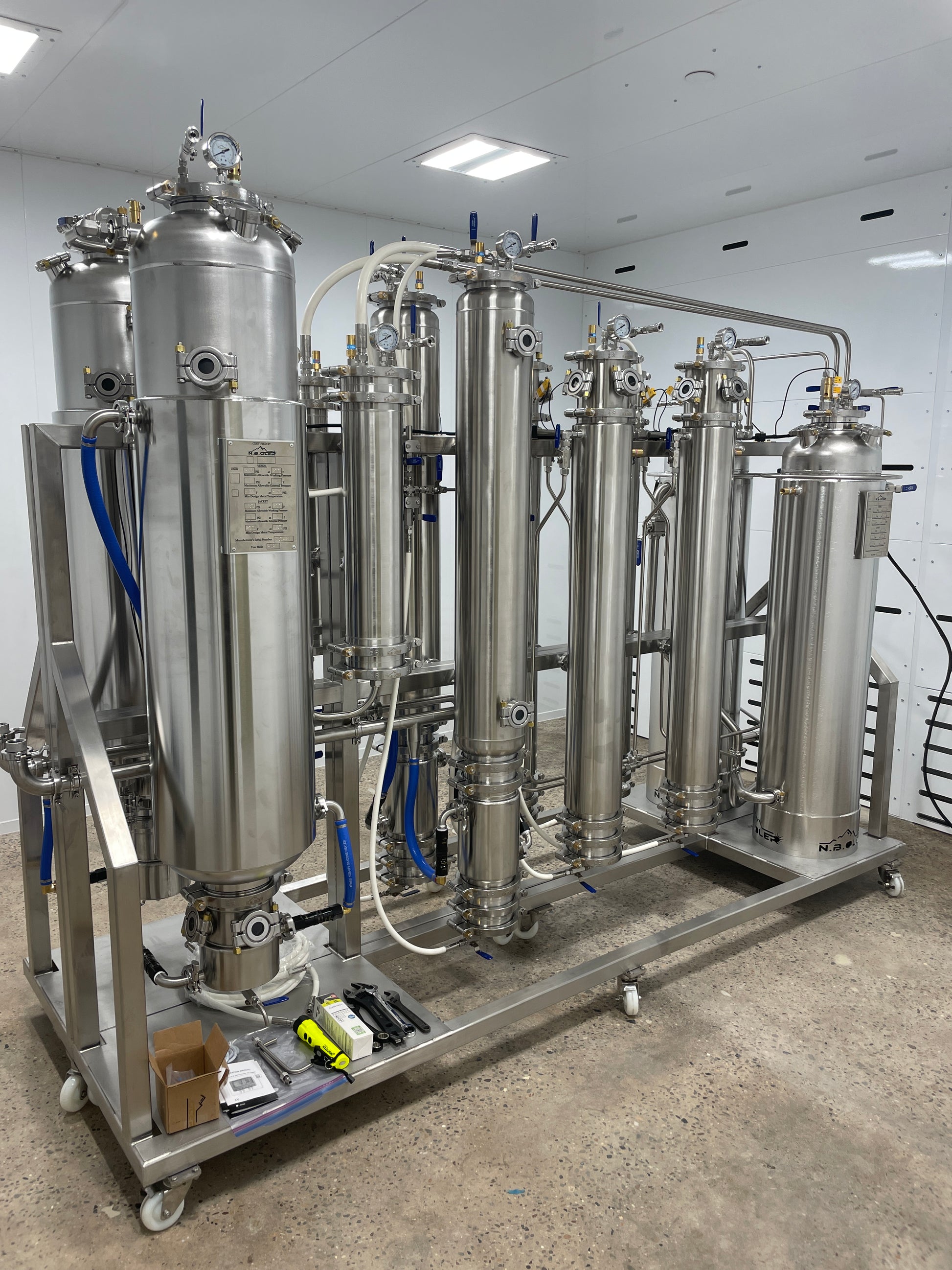

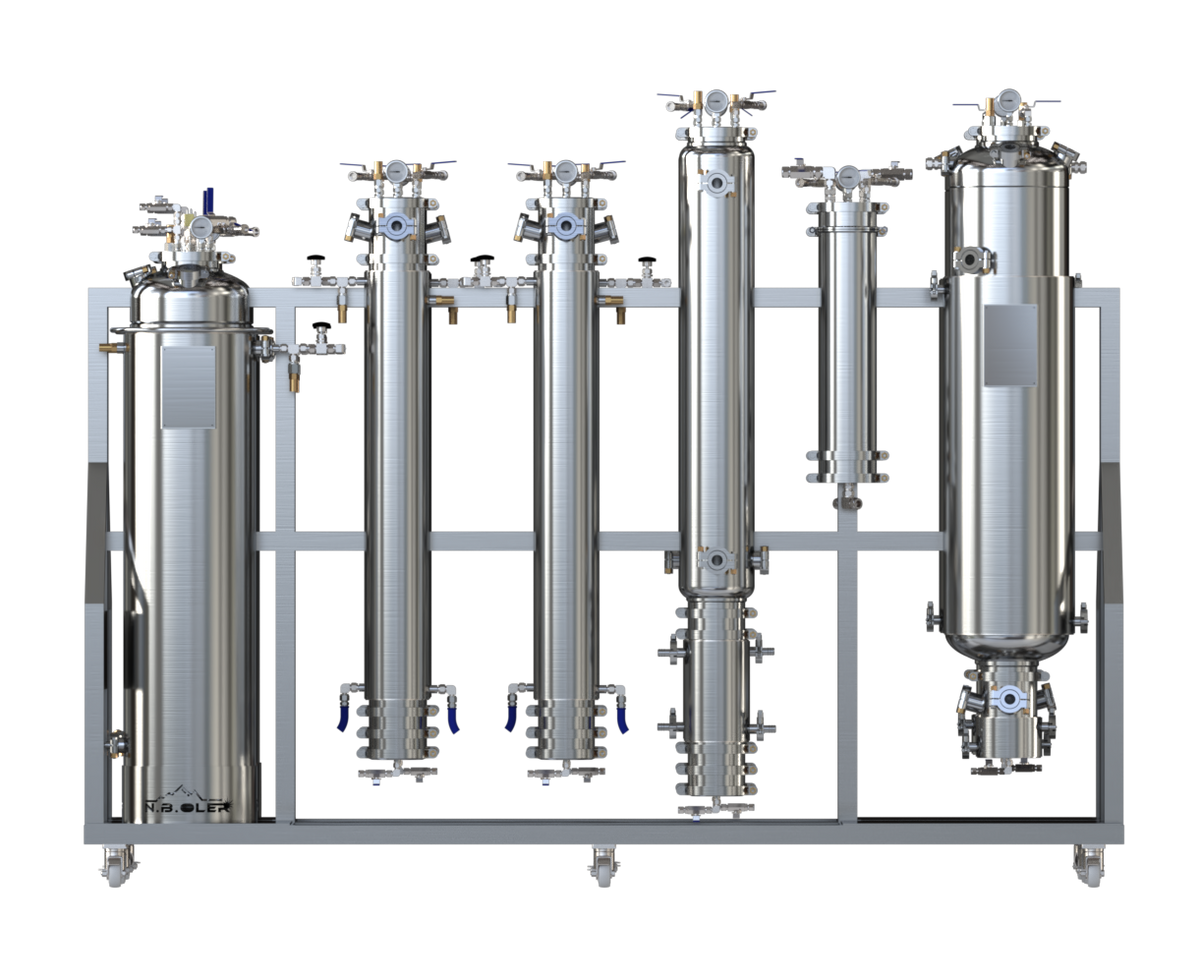

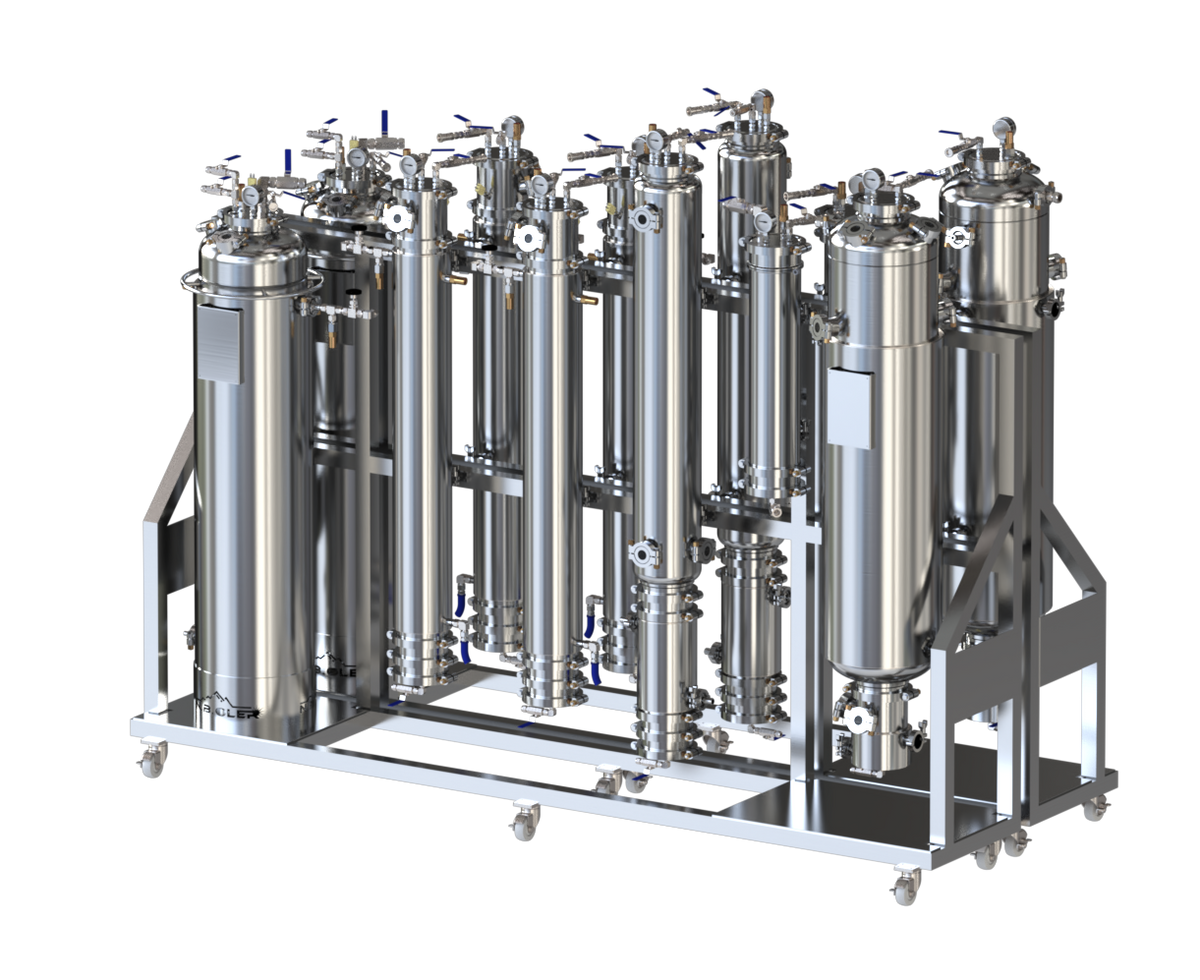

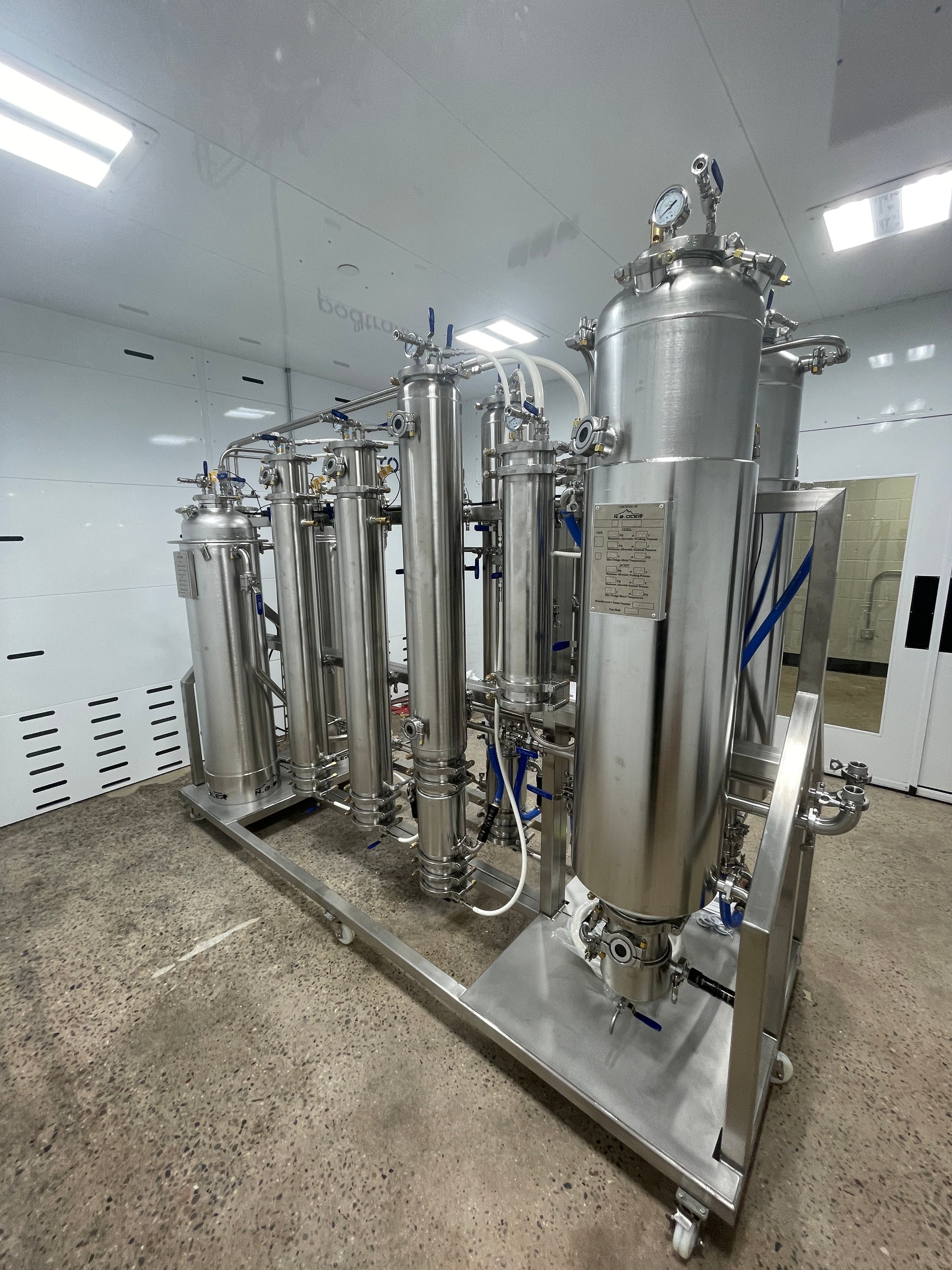

40 LB Passive Double Barrel Hydrocarbon Extractor, ASME Certified
ABOUT THIS PART

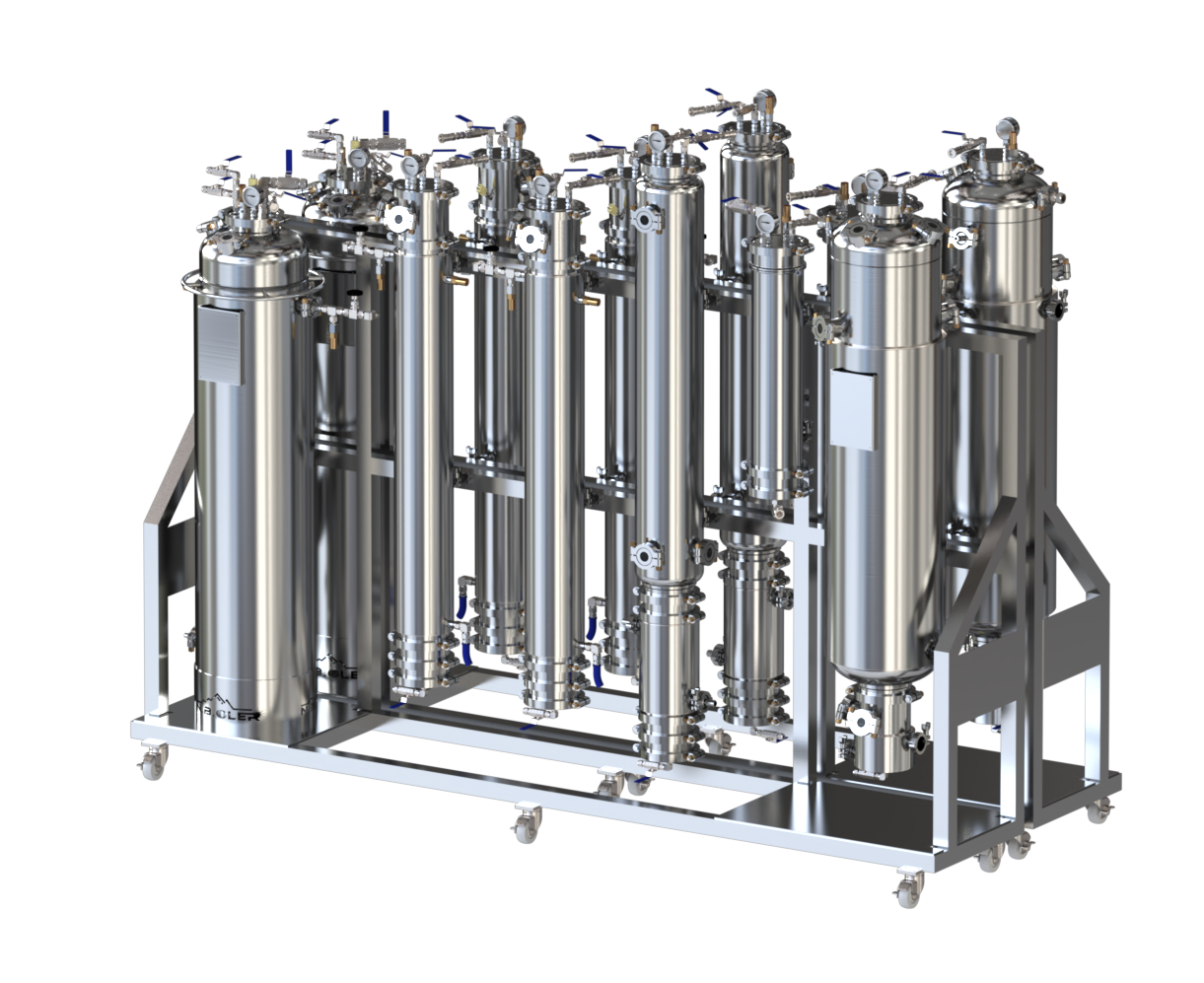

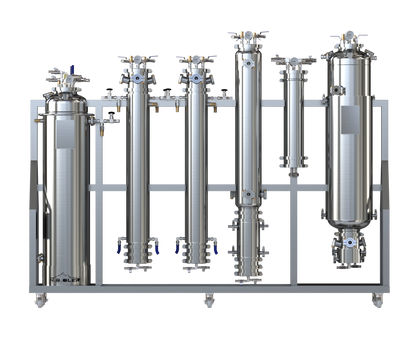

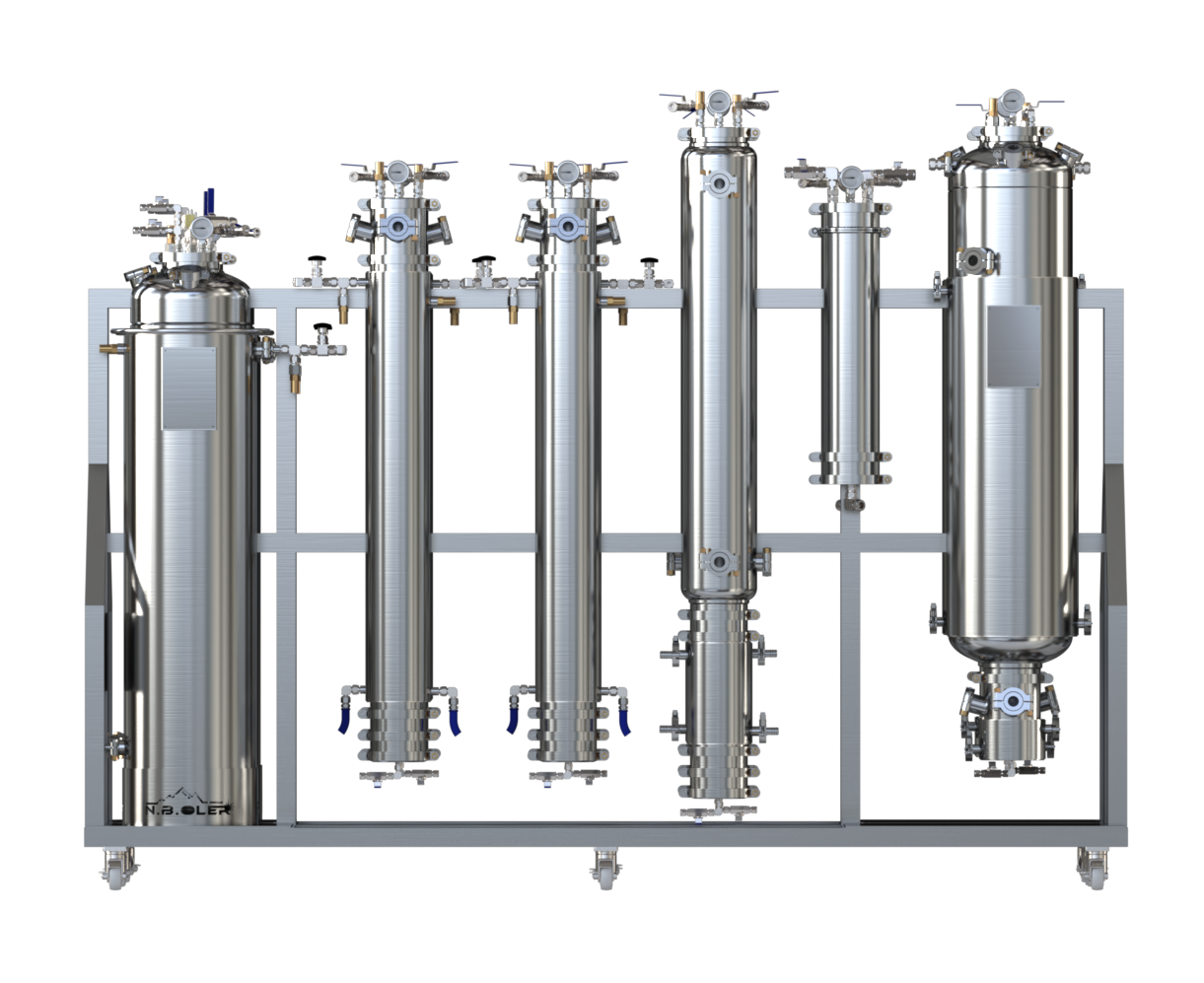

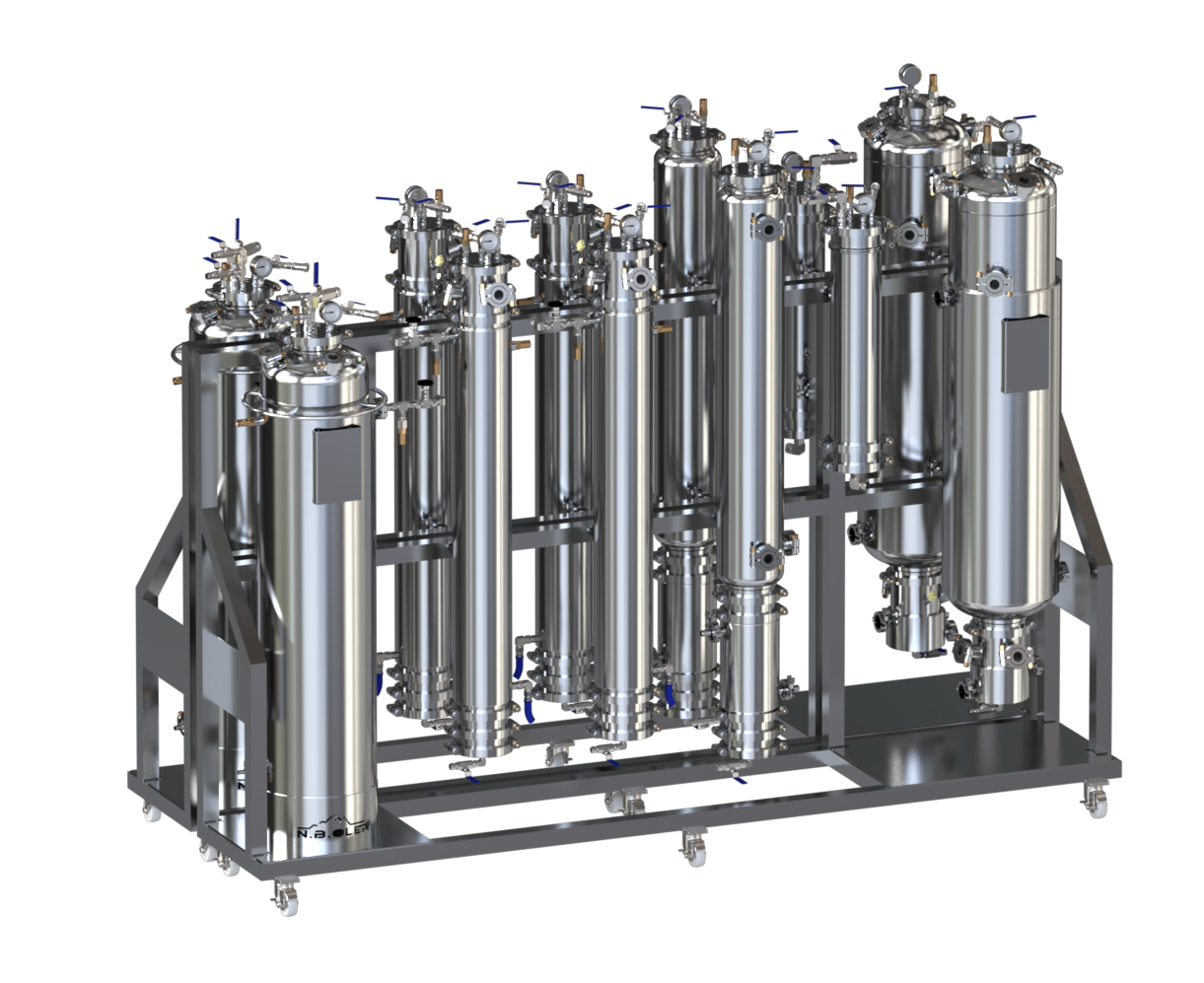

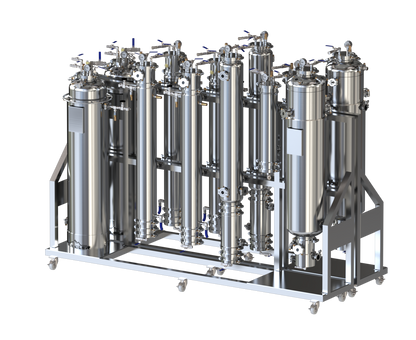

40 LB passive double barrel hydrocarbon extraction system, $350,000. Two complete 20 LB sides on one rack: four 6 in x 48 in chilled material columns, two 12 in ASME recovery vessels, two 100 lb ASME solvent tanks, two color remediation columns and two molecular sieves, tied together by a chilled recovery manifold.
SPECIFICATIONS
| Price | $350,000 |
|---|---|
| SKU | NB-EXT-40 |
| Design operating pressure | 250 psi (17.2 bar) |
| Solvent capacity | 200 lb, two 100 lb ASME tanks |
| Plant material capacity | 40 lb (18,144 g) per run cured, dry or trim, or 72 lb (32,659 g) live resin |
| Minimum solvent temperature | -30 F (-34 C), or -65 F (-54 C) with PTFE or rigid PTFE composite gaskets |
| Approved solvents | n-Butane CAS 106-97-8, Isobutane CAS 75-28-5, Propane CAS 74-98-6 |
| Straight propane | Approved, not only as a blend component. Propane sits at 110 psig at 70 F (21 C) and 174 psig at 100 F (38 C) per N.B. Oler REF-VP-01, inside the 250 psi (17.2 bar) envelope. n-Butane at the same temperatures is 16.5 and 36.9 psig |
| Material columns | Four, 6 in x 48 in, jacketed and chilled, 5.75 in inside diameter |
| Recovery vessels | Two, 12.38 in inside diameter, ASME U stamped, DCR-210020 |
| Solvent tanks | Two, 100 lb, 12.08 in inside diameter, ASME U stamped, DCR-200101-R1 |
| Color remediation columns | Two, 7.78 in inside diameter, ASME U stamped |
| Molecular sieves | Two, 5.72 in inside diameter |
| Vacuum rating, all vessels | -14.7 psi (-1.01 bar), full vacuum |
| U stamp exemption | Material columns and molecular sieves, inside diameter 6 in or less, ASME BPVC VIII-1 U-1(2)(-i) |
| Vessel metal design temperature | -155 F to 200 F (-104 C to 93 C) |
| Solvent tank jackets | 100 psi (6.9 bar), hydro tested at 130 psi (9.0 bar) |
| Column jackets and liquid CO2 inlets | 22 psi (1.5 bar) |
| Heating | 24 to 48 kW hot water, supplied separately |

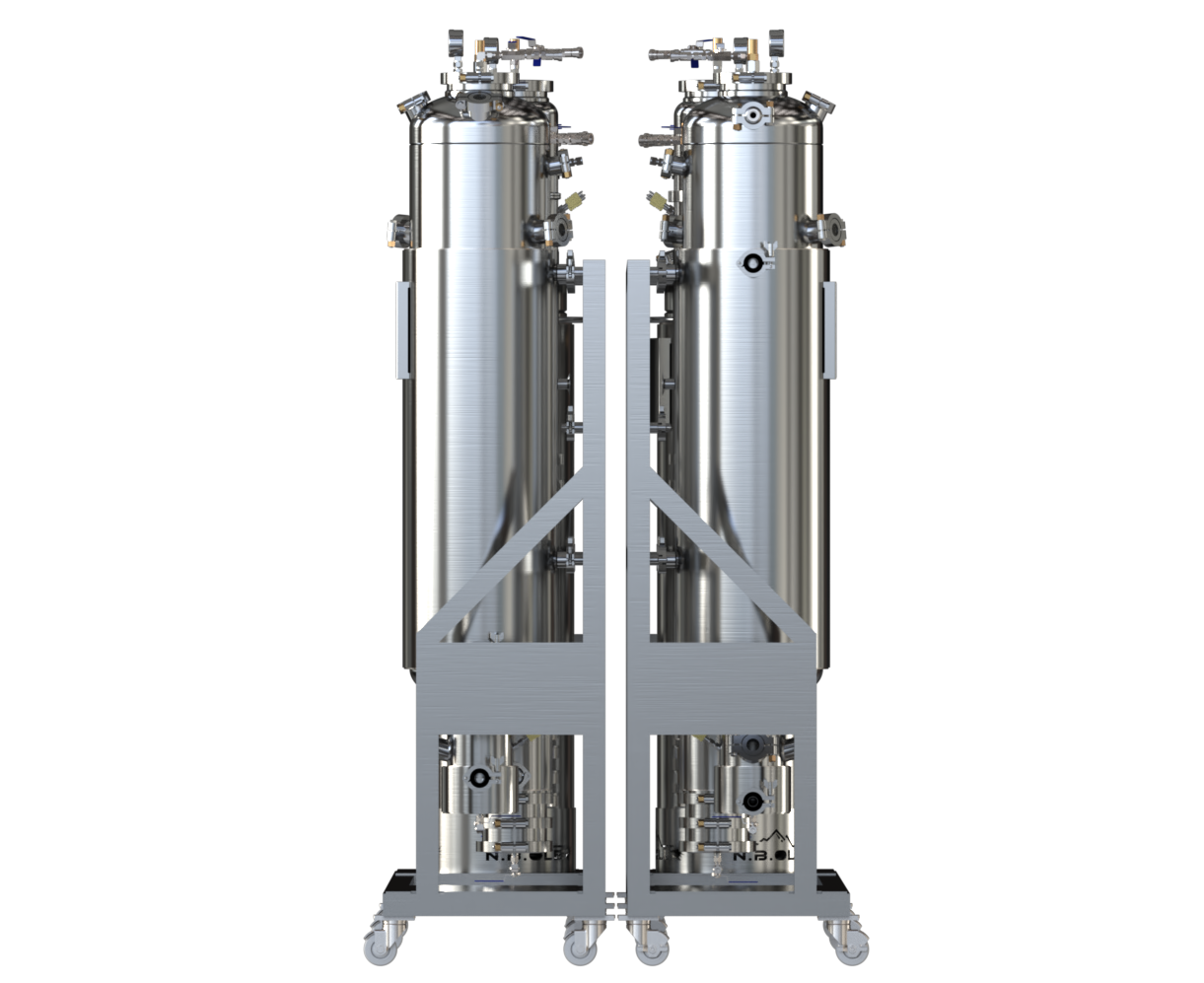

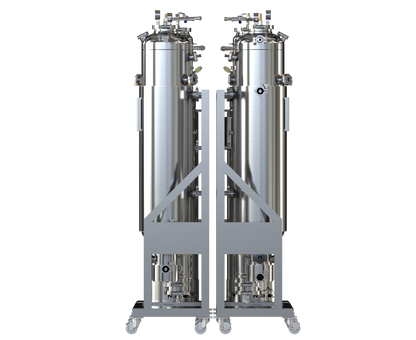

| Assembled footprint | 100 in x 44 in x 87 in, separable into two sides |
| Crated weight | 3,000 lb |
| Crate | One crate, 144 in long x 48 in wide x 90 in tall |
| Shipping | LTL freight, quoted after the crate is measured |
| Installation | Electrically classified C1D1 area |
| Recovery | Fully passive, no solvent pump |
| Certification report | 3P Certz ECR-250902-R0, Revision 0, issued 23 October 2025 |
| Engineer of record | Brian Kester, PE. Reviewed by Craig Beaver |
| Lead time | 26 weeks |
| Recovery manifold | Chilled, for faster recovery across both sides |
| Chilling method, as certified | Mechanical chillers. Liquid CO2 and liquid nitrogen builds are also made, specified at order |
| Filtration | In-line stainless sintered filters |
THE OPERATING ENVELOPE
Two of everything, and one pressure envelope. 250 psi (17.2 bar) is what lets this machine run straight propane.
Propane sits at 110 psig at 70 F (21 C) and 174 psig at 100 F (38 C). n-Butane at the same temperatures is 16.5 and 36.9 psig. A 150 psi machine does not have the room for the first column, whatever its brochure says about solvent compatibility. See running straight propane.
Every vessel also holds full vacuum, -14.7 psi (-1.01 bar). The jacket figures are separate envelopes and lower on purpose: a column jacket is a 22 psi (1.5 bar) space, and putting liquid CO2 or chilled fluid into it at more than that is how jackets get destroyed.
The gasket sets the cold limit on this machine, not the steel.
The steel is good to -155 F (-104 C) and is never what stops you. Standard gaskets put the floor at -30 F (-34 C). PTFE or rigid PTFE composite gaskets take it to -65 F (-54 C), which is the number that matters if you are running cold propane or fresh frozen. See choosing a gasket material.
Every figure is transcribed from 3P Certz report ECR-250902-R0, Revision 0, issued 23 October 2025, engineer of record Brian Kester, PE. Approved solvents are named by CAS number in that report: n-Butane 106-97-8, Isobutane 75-28-5, Propane 74-98-6.
The throughput comes from the layout. One pair of columns soaks while the other pair drains, so the recovery side is never idle waiting on a load. Both sides run every cycle, so an eight-hour day on liquid CO2 is 12 side runs, which is 6 full runs of 40 lb, twice the material of a 20 LB. Each run is 40 lb (18,144 g) of cured, dry or trim material, or 72 lb (32,659 g) of live resin. Recovery is fully passive, so there is no pump in the solvent path. Runs crude or live resin without reconfiguration.
It ships set up for liquid CO2. Add the tube in shell condenser and a chiller, and that goes to 16 side runs, 8 full runs, in an eight-hour day.
The other advantage is redundancy. Every vessel on this machine is doubled, so one side keeps producing while the other is down for a gasket change or an inspection.
It runs straight propane. ECR-250902-R0 names propane by CAS number as an approved solvent in its own right, not only as a blend component, and propane's 110 psig at 70 F (21 C) sits inside the 250 psi (17.2 bar) design pressure. See Running Straight Propane.
BUILT TO TRAIN YOUR NEXT EXTRACTOR
We built the Double Barrel to be the ultimate training system. The two 20 LB sides are mirror images of each other: the same columns, the same valves, laid out the same way. Your lead extractor runs one side and a newer operator runs the other, on the same cycle, side by side. When the lead opens a valve, the trainee opens the same valve on their side, at the same step.
The design came out of a real lab. One of our customers kept having people out sick, and a packer or a helper would have to step in and run the system next to the lead extractor or a trainee. Our trainer laid the machine out so whoever stepped in could follow the person beside them, valve for valve.
That is a different way to learn than watching over someone's shoulder. On a single machine there is one set of controls, so a new person either watches, or takes over while the lead hovers. On the Double Barrel the trainee has their own side from day one, with a full run going right next to them as the example. Every run is practice, and on liquid CO2 that is 6 runs a day on each side.
It is also the safer way to bring someone new into the lab. The lead is an arm's length away, reading the same gauges and watching the same sight glasses, and can catch a valve out of sequence before it becomes a problem. A new operator is never alone with the machine while they learn it.
For the owner, it is insurance on your production. Turnover in this industry is real. A lead extractor moves on, or their helper does, and the person stepping in is often someone from inside the company who is interested but has never run a closed loop system. On a single machine, losing your operator can stop production until someone new is trained. On the Double Barrel there are always two people in the lab who know the system, and the second one learned it on identical equipment next to the first. When someone leaves, the next person is already well along.
Our onsite training and commissioning on the Double Barrel trains two operators together, and there is no limit on how many of your people we train. Five to seven at once is the practical maximum before the room gets too crowded to learn in.
THE MOST THOROUGHLY DOCUMENTED SYSTEM WE BUILD
This is the machine 3P Certz reviewed in full, as 3P Certz report ECR-250902-R0, Revision 0, issued 23 October 2025. Engineer of record Brian Kester, PE, reviewed by Craig Beaver.
- Every pressure vessel is analyzed individually, with its own summary and calculation pages, inside diameter, pressure envelope and U stamp determination.
- Every purchased component on the system is listed by manufacturer, part or model number, and qualified against pressure, temperature and wetted materials. That covers the relief valves, ball valves, needle valves, the compound gauge, the sight glasses, the quick connects, the tubing and the gaskets.
- The report states that components shall not be substituted outside the specifications in that list, which is why we do not swap parts on a certified build.
Every number on this page traces back to it.
BUILT, NOT RESOLD
- N.B. Oler is an ASME U stamp shop. The solvent vessels, the color remediation columns and the recovery vessels are welded, hydro tested and U stamped in our own shop in Bend, Oregon.
- The material columns and molecular sieves are not U stamped and do not need to be. At 5.75 in and 5.72 in inside diameter they fall under the ASME BPVC Section VIII Division 1 exemption for vessels of 6 in inside diameter or less, U-1(2)(-i). They are built to the same shop standard.
- Solvent vessel design calculations are DCR-200101-R1. Recovery vessel design calculations are DCR-210020.
- All stainless is fabricated here. Gaskets, filter cartridges and filter socks are purchased parts and are not represented as ours.
EVERY VESSEL IS RATED FOR FULL VACUUM
That matters because you pull a vacuum on this machine every run, and a vessel rated only for internal pressure can collapse doing it. Every vessel is rated to -14.7 psi (-1.01 bar), full vacuum, and to 250 psi (17.2 bar) max design pressure. Inside diameters and U stamp status, from the report:
| Vessel | Inside diameter | ASME U stamp |
| Solvent vessel | 12.08 in | Required and fitted |
| Collection and recovery vessel | 12.38 in | Required and fitted |
| Color remediation column | 7.78 in | Required and fitted |
| Material column | 5.75 in | Exempt, inside diameter 6 in or less |
| Molecular sieve | 5.72 in | Exempt, inside diameter 6 in or less |
Gasket choice sets the cold limit on this machine, not the vessels. The vessels are good to -155 F (-104 C). The certified minimum solvent temperature is -30 F (-34 C) on standard elastomeric gaskets, and PTFE or rigid PTFE composite gaskets take it to -65 F (-54 C). If you plan to run cold, choose the gasket for it. See choosing a gasket material.
HOW THE COLUMNS ARE PACKED
This machine has four material columns and two color remediation columns, and they are not loaded the same way. Both are built from the bottom up.
Material column: sintered disc 50 micron dull side up, perforated plate, filter paper, two drop-in rings, then pack your material on top. The plate carries the paper. Paper laid straight on an open disc has nothing to sit on and tears through under differential pressure.

Color remediation column: the same build at both ends of the media bed, on finer discs. A 5 micron over a 1 micron at the outlet, perforated plate, filter paper, two drop-in rings, pack the media, then a second perforated plate, filter paper and two drop-in rings, with a 10 micron disc on top. The top plate and rings hold the bed compressed so the media cannot channel, and the top disc caps it so media cannot rise into the oleoresin above.

The full procedure is in How to Stack a Material Column and a CRC Column.
Common add-ons, priced separately: a secondary material column rack, a tube in shell condenser, which lets you cool with a chiller instead of liquid CO2, extra 100 lb ASME solvent tanks and extra 12 in ASME recovery vessels. If you are choosing between sizes, the 20 LB system is the same engineering on one side, and the single barrel compact 40 LB gets the same throughput into a smaller footprint without the redundancy. The System Sizing Calculator shows what each one produces on your schedule and what it costs per pound of capacity.
LEAD TIME, SHIPPING AND TERMS
- 26 weeks from paid order to shipment.
- Paid in full before the system ships. We do not offer net 30 or purchase order terms.
- Ships as one crate, 3,000 lb, 144 in long x 48 in wide x 90 in tall. Measure your dock and your doorway against that before delivery day.
- LTL freight, quoted and invoiced after the crate is measured, not charged at checkout.
- Your room has to be permitted for the solvent quantity you intend to store. Talk to us before you commit to a layout.
WHAT SHIPS WITH IT
Onsite training and commissioning are part of the delivery, not optional paperwork. Systems operated or modified by outside consultants without retraining are the ones that come back damaged.
In the crate: Hydrocarbon Operators Manual, What To Expect guide, onsite training and commissioning checklist, safety and process training with a certification exam and certificate, and an operators run log.
| ASME U STAMP | Built to ASME Section VIII Division 1. |
|---|---|
| FITS | Butane, isobutane and straight propane, named by CAS number in ECR-250902-R0, crude or live resin. Two 20 LB sides on one rack. Takes four 6 in x 48 in material columns, two 12 in ASME recovery vessels, two 100 lb ASME solvent tanks, two CRC columns and two molecular sieves. Accepts a secondary material column rack and a tube in shell condenser. Not an ethanol system. |
▦ IN YOUR MANUAL
This part appears in the operator manual that ships with your system. The QR code there links to this page.
◈ REFERENCE FOR THIS PART
COMMON QUESTIONS
What is the design operating pressure?
250 psi (17.2 bar), per 3P Certz report ECR-250902-R0. Solvent tank jackets are 100 psi (6.9 bar) and the column jackets and liquid CO2 inlets are 22 psi (1.5 bar).
How much solvent and material does it hold?
200 lb of solvent across two 100 lb ASME tanks, and 40 lb of plant material per run, which is 18,144 g of cured, dry or trim material, or 72 lb (32,659 g) of live resin.
How cold can it run?
The certified minimum solvent temperature is -30 F (-34 C). Built with PTFE or rigid PTFE composite gaskets it may run as low as -65 F (-54 C). The gasket sets the limit, not the vessels, which are good to -155 F (-104 C).
Which solvents are approved?
n-Butane (CAS 106-97-8), Isobutane (CAS 75-28-5) and Propane (CAS 74-98-6).
Are all the vessels ASME stamped?
The solvent vessels, color remediation columns and recovery vessels are U stamped. The material columns and molecular sieves are exempt because their inside diameters are 5.75 in and 5.72 in, under the 6 in ASME exemption, so they carry no stamp and do not need one.
Can it hold a vacuum?
Yes. Every vessel on the system is rated to -14.7 psi (-1.01 bar), full vacuum, which is in the pressure table of the certification report.
Is the CRC column included?
Yes, two of them, one per side, and they are certified as part of this system rather than bolted on as an option. Your build sheet governs.
What documentation comes with it?
3P Certz report ECR-250902-R0, signed by Brian Kester, PE. It analyzes every pressure vessel individually and qualifies every purchased component by manufacturer, part number, pressure, temperature and wetted materials.
Can I substitute parts?
Not on a certified build. The report states components shall not be substituted outside the specifications in its purchased components list.
How is it different from two 20 LB systems?
It is two 20 LB sides on one rack sharing a chilled recovery manifold, so one pair of columns soaks while the other drains. Every vessel is doubled, so one side keeps producing while the other is down.
How is it different from the single barrel 40 LB?
Same 40 lb per run. The single barrel puts four columns onto one large recovery vessel and one large solvent tank in a 52 in x 64 in footprint with no redundancy, and it costs more.
What does installation require?
An electrically classified C1D1 area, 24 to 48 kW of hot water, and a room permitted for the solvent quantity you intend to store.
What is the lead time?
26 weeks from paid order to shipment.
Do you offer net 30 or purchase order terms?
No. Systems are paid in full before they ship.
