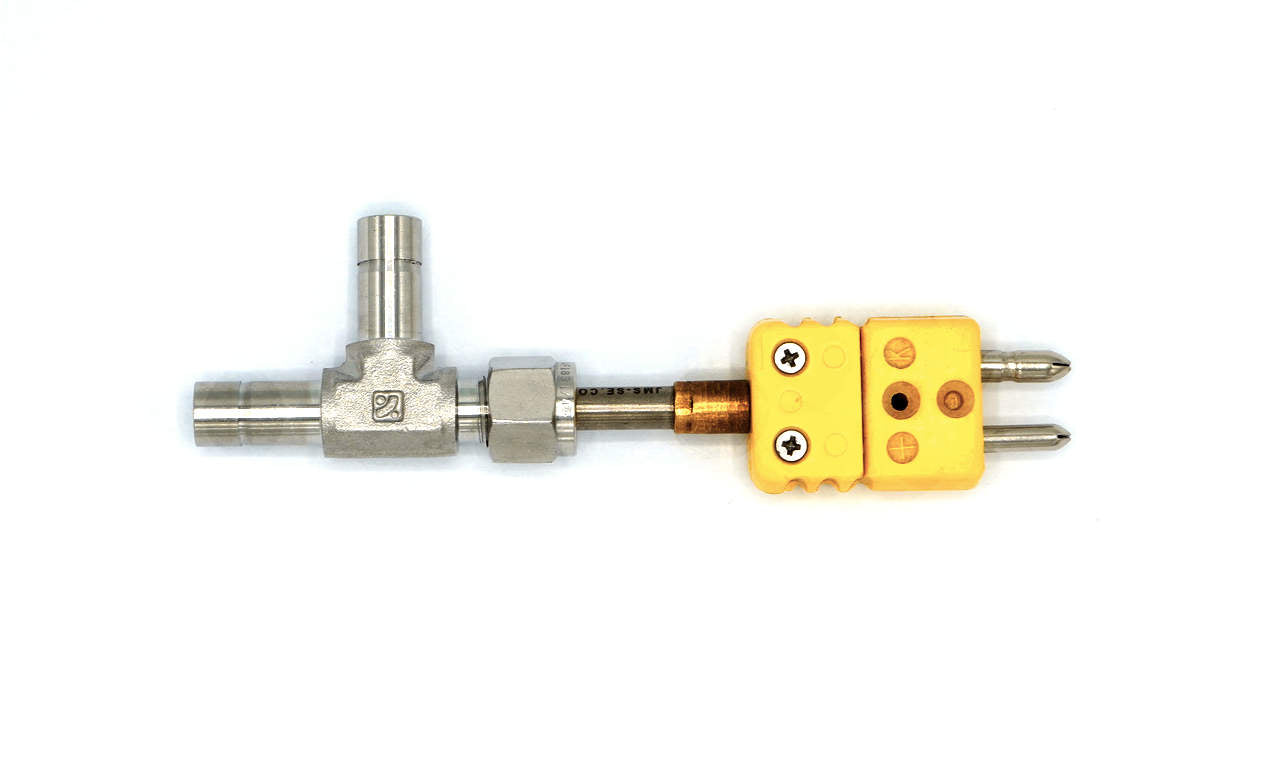

Thermocouple tee, 316 stainless, 3/8 in. compression run with 1/4 in. probe port
Thermo-Tee-Run

Thermocouple Tee, 316 Stainless, 3/8 in. Tube Run, 1/4 in. K Probe Port

$97.00IN STOCK
Ships in 1 business day

ABOUT THIS PART

A 316 stainless tee that puts a 1/4 in. K-type thermocouple probe into a 3/8 in. tube line, with compression ports on the run and a bore-through port on the branch. It reads line temperature without welding a port into a vessel. The probe is sold separately, and no pressure rating is published yet.

SPECIFICATIONS

ConfigurationTee, two run ports and one branch
Run ports3/8 in. compression tube, both ends
Probe port1/4 in. bore-through for a K-type probe
Body and wetted material316 stainless
Typical probe length1 to 4 in.
Pressure ratingNot on file
Probe includedNo
Price$97.00
TECHNICAL DETAILS

A 316 stainless tee that puts a 1/4 inch K-type thermocouple probe directly in the flow, with two 3/8 inch compression tube ports on the run. $97.00. Custom made for N.B. Oler, made to our design, and stocked in Bend, Oregon.

It does the job of a tee, a reducer and a bore-through fitting in one part, so there is one joint to seal instead of three and nothing to weld. No building a cap or a custom port: plumb it into your line and drop the probe in.

What you get

  • Two 3/8 in. compression tube ports on the run
  • One 1/4 in. bore-through port on the branch for a K-type thermocouple probe
  • 316 stainless body, and 316 stainless is what your process touches
  • Made to our design
  • Probe not included

Need the probe?

Pair it with our 1/4 in. K-type thermocouple probe. Short is usually right on an inline tee, 1 to 4 in.

Fitment

  • Takes 3/8 in. tube on both run ports. It is a compression connection, so it seats tube, not pipe thread
  • Takes any of our 1/4 in. K-type thermocouple probes
  • Does NOT fit 1/4 in. or 1/2 in. tube without a reducer outside the tee, and does not thread into an NPT port on its own
  • Does NOT include a probe

Reading it

  • The probe ends in a standard size male K plug and our four channel loggers take mini, so a K to mini-K extension cable goes between them
  • Your logger has to sit well away from the machine in a classified room, so size the cable for the run and not for the tee

Stocked in Bend, Oregon. In-stock parts ship in 1 business day. We do not publish a pressure rating on this part yet, because the documentation is still being pulled together. Ask us and we will tell you what we know.

FITS3/8 inch tube on both run ports, as a compression connection rather than a pipe thread. Takes any of our 1/4 inch K-type thermocouple probes on the branch, probe sold separately, and 1 to 4 inch is the usual length on an inline tee. Use it wherever you want a temperature reading in a 3/8 inch line without welding a bore-through into a vessel wall. Does NOT fit 1/4 or 1/2 inch tube without a reducer outside the tee, does NOT thread into an NPT port on its own, and does NOT include a probe.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Stainless Steel: 304, 316 and 316L →
Why the wetted path on this tee is 316, and how the grade gets proven on paper
Stainless Tubing Burst and Working Pressure Chart →
What the 3/8 in tube either side of this tee is rated to
Line Volume per Length →
Solvent holdup in the 3/8 in run this tee sits in
Site Requirements and Utilities for a Hydrocarbon System →
Where the logger and its cable are allowed to sit relative to a C1D1 room
Maintaining a Laboratory Notebook →
Recording times, temperatures and pressures on every run

COMMON QUESTIONS

Does it come with a probe?

No. The tee is the fitting only. Our 1/4 inch K-type thermocouple probes are sold separately in lengths from 1 inch up.

What size tube does it take?

3/8 inch on both run ports. It is a compression fitting, so it seats tube, not pipe thread. To reach a different tube size, use a reducer outside the tee.

What is it rated to?

We do not publish a pressure figure we cannot document, and the paperwork on this part is still being pulled together. Ask us and we will tell you what we know.

Do I need anything else to read it?

Yes. The probe terminates in a standard size male K plug and our data loggers take mini, so you also need the K to mini-K extension cable between them.
