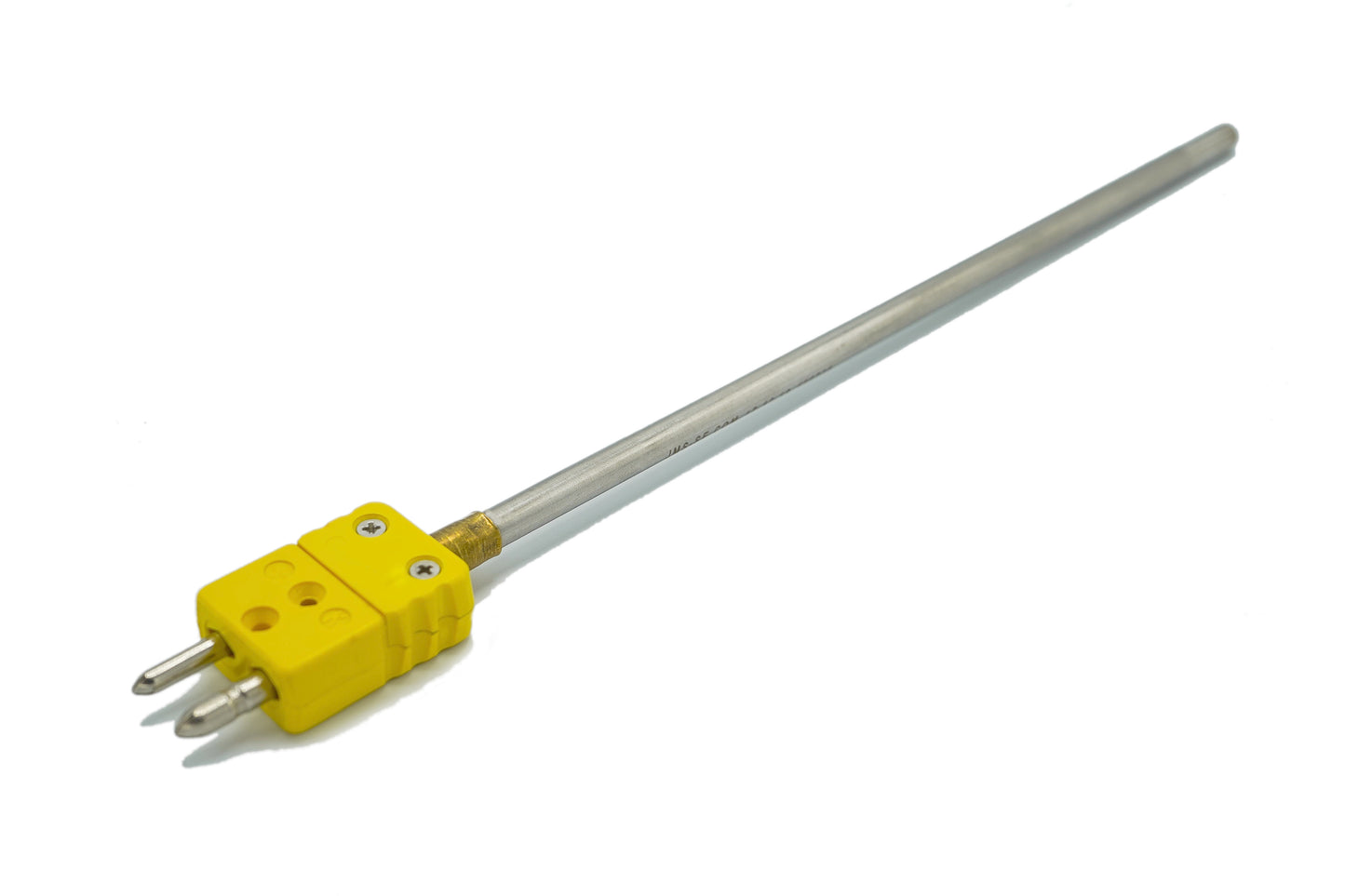

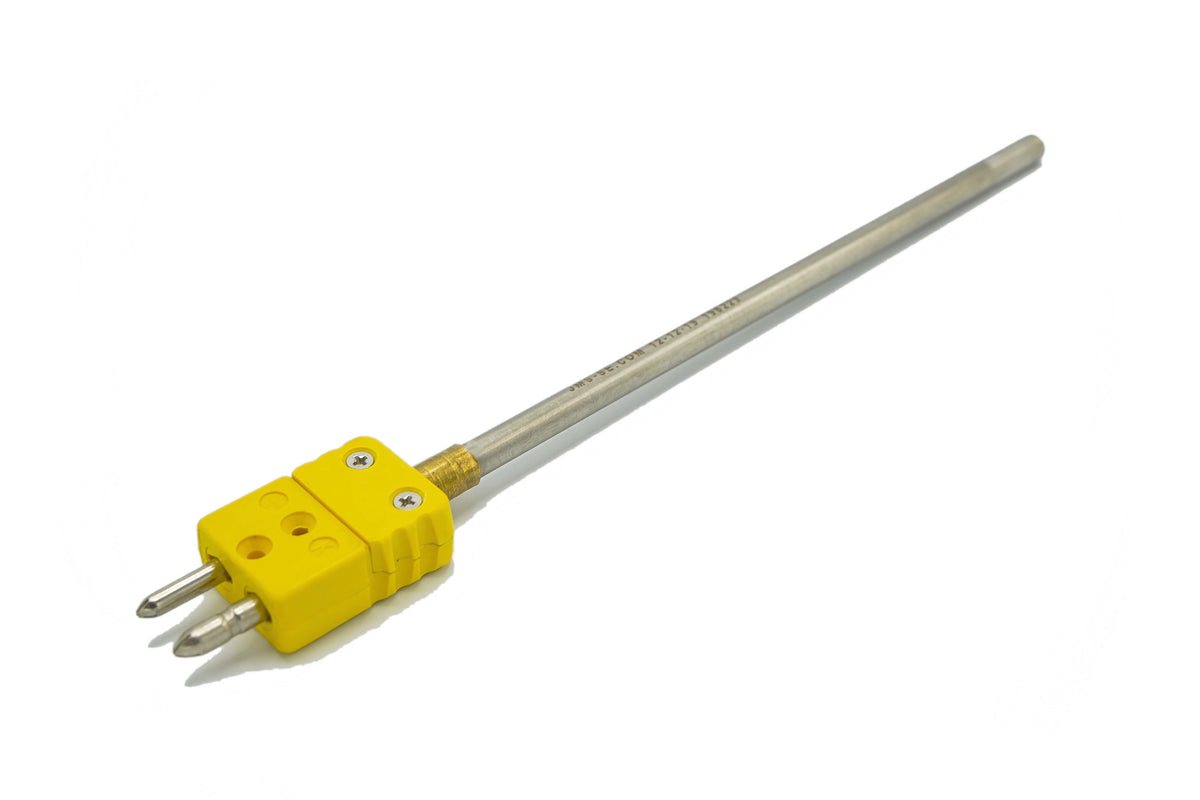

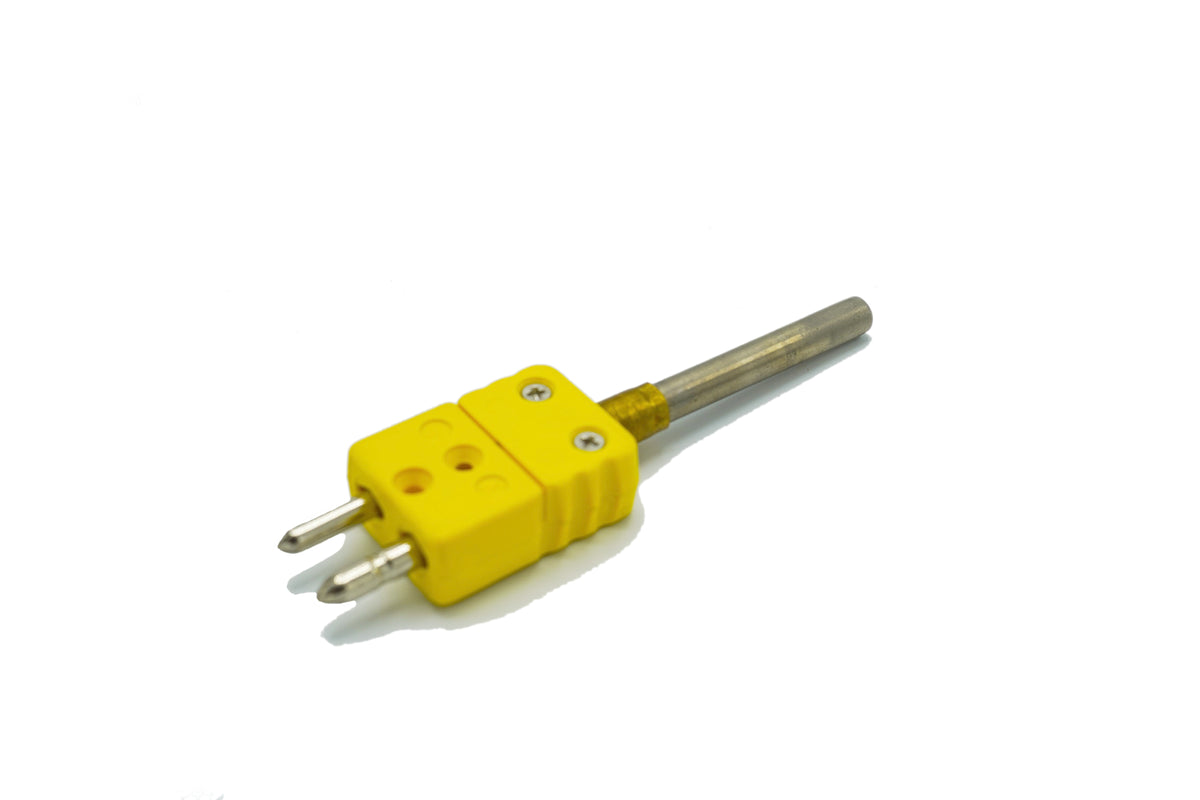

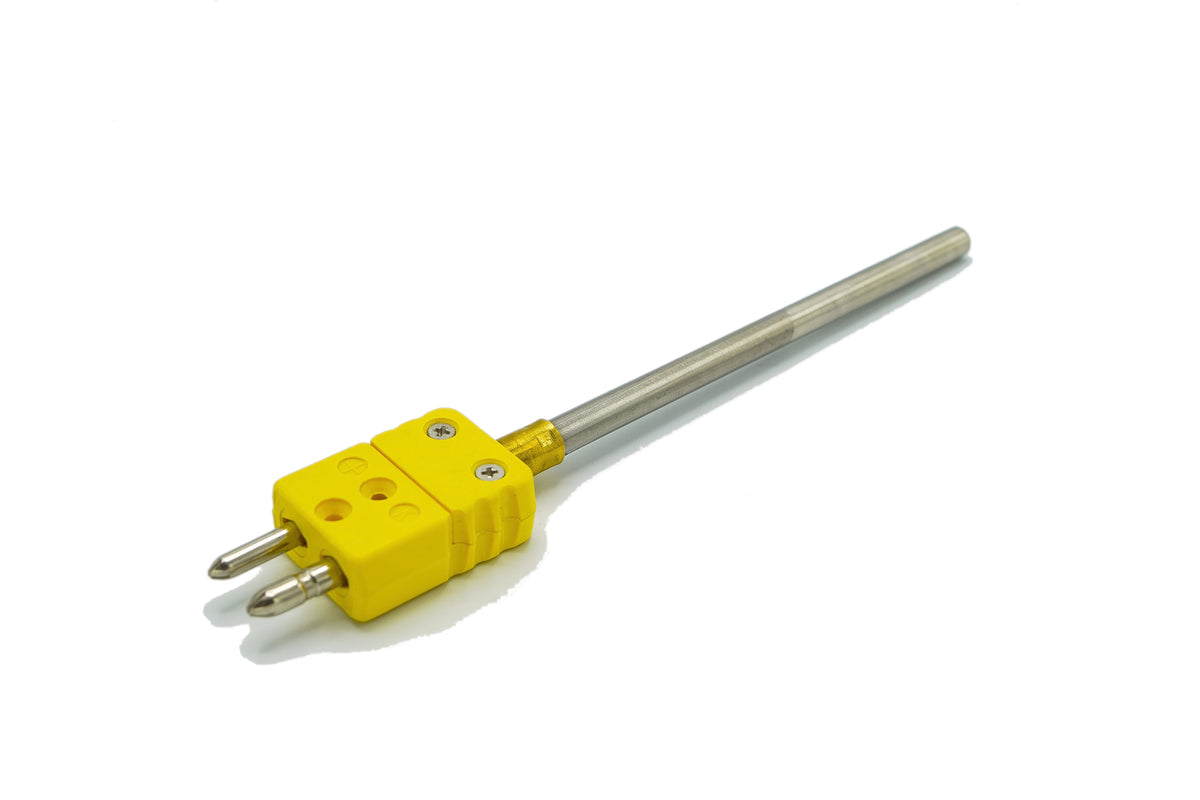

1/4 in. K-type thermocouple probe, short 304 stainless stem with yellow standard male K plug
Thermo-Probe-1

K-Type Thermocouple Probe, 1/4 in. 304 Stainless, Ungrounded, 1 to 64 in.

$80.00IN STOCK
Ships in 1 business day
8 sizes, $80.00 to $260.00
SELECT LENGTH

ABOUT THIS PART

A 1/4 in. K-type thermocouple probe with a mineral insulated 304 stainless stem, an ungrounded junction and a standard male K plug, from 1 to 64 in. long. It is a bare stem. It mounts through a 1/4 in. weld bore-through fitting or our Thermocouple Tee, and it does not thread into an NPT port.

SPECIFICATIONS

Thermocouple typeK, single element
JunctionUngrounded
Stem1/4 in, 304 stainless, mineral insulated
Sheath temperature rating899 °C (1650 °F), per ECR-200023-R0
ConnectorStandard size male K plug
Hazardous locationNonincendive, Class I Division 1, per NFPA 70 Article 500.7
Process connectionNone. Fits a 1/4 in weld bore-through fitting, sold separately. Does not thread into NPT
Lengths stocked1, 4, 6, 8, 48, 51, 58 and 64 in
Custom lengthsBuilt to order, 5 to 7 days, not returnable
TECHNICAL DETAILS

A 1/4 inch K-type thermocouple probe with a 304 stainless stem and an ungrounded junction, in lengths from 1 inch to 64 inches. $80.00 to $260.00. Listed lengths are stocked in Bend, Oregon.

Nonincendive for Class I, Division 1 locations per NFPA 70, Article 500.7, as documented in 3P Certz engineering report ECR-200023-R0.

It is a bare stem. It does not thread into a 1/4 in. NPT port and carries no compression fitting or thermowell.

What it is

  • 1/4 in. stem, 304 stainless, mineral insulated
  • Ungrounded junction, single element, so the sensing element stays electrically isolated from the sheath and from your vessel. On a system where static discharge is a named hazard, that matters
  • Standard size male K plug on top, not bare leads and not mini-K
  • Sheath rated to 899 °C (1650 °F). The plug end is the lower of the two limits, so keep it out of the heat
  • Bare stem. No compression fitting, no thermowell, no process connection of any kind

Lengths and prices

Length SKU Price
1 in. Thermo-Probe-1 $80.00
4 in. Thermo-Probe-4 $86.00
6 in. Thermo-Probe-6 $94.00
8 in. Thermo-Probe-8 $110.00
48 in. Thermo-Probe-48 $199.00
51 in. Thermo-Probe-51 $210.00
58 in. Thermo-Probe-58 $245.00
64 in. Thermo-Probe-64 $260.00

64 inch is the longest length we stock, and it is the one that goes on a tube in shell condenser. The listed lengths are stocked. Custom lengths are built to order in 5 to 7 days. Tell us the depth you need.

Choosing a length

  • Every vessel with a sight glass takes one, so most systems take several
  • 4 in. is the standard on inline sight glasses and sight spools
  • Solvent tanks are all different depths. Measure from the fitting face to where you want to read, rather than guessing from the vessel size
  • Custom lengths are built to order and are not returnable, so measure twice

Need it in a fluid path?

Our Thermocouple Tee puts this probe directly in a 3/8 in. tube line with no welding. Plumb it in and drop a 1 to 4 in. probe through it.

Fitment

  • Mounts through a 1/4 in. weld bore-through fitting, which is a separate part, or through our Thermocouple Tee for an inline reading
  • Does not thread into an NPT port on its own, and does not include a compression fitting or a thermowell
  • To log a run you also need the K to mini-K extension cable. The probe ends in a standard male K plug and our four channel loggers take mini, so the cable is the adapter between them, not an accessory. We build them here

Stocked lengths ship in 1 business day. Custom lengths run 5 to 7 days. More on how these systems are certified in Certifications and Compliance.

FITSAny vessel, column or sight spool with a 1/4 inch weld bore-through fitting. The probe is a bare stem and the fitting is a separate part. 4 inch is the standard length on inline sight glasses and sight spools. Solvent tanks vary, so measure the depth you need before ordering. Pairs with the K to mini-K extension cable, which is what connects the probe's standard male K plug to a mini-K data logger, and with the 4-channel logger for run logging. Does NOT include a compression fitting, a thermowell or a process connection of any kind, and does not thread into an NPT port on its own.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Analyzing CBD Crude for Ethanol: The Loss on Drying Method →
Using a K-type probe to confirm sample temperature on a loss on drying test
Stainless Steel: 304, 316 and 316L →
The 304 sheath on this probe, and what the grade buys you
Site Requirements and Utilities for a Hydrocarbon System →
Where instruments and electrical equipment are allowed to sit in a C1D1 room
Certifications and Compliance →
What a 3P Certz engineering report covers and how N.B. Oler equipment is certified
3P Certz engineering report ECR-200023-R0 →
source for the 899 C (1650 F) sheath rating and the Class I Division 1 nonincendive determination
NFPA 70, Article 500.7
defines nonincendive as a protection technique for Class I Division 1 locations

COMMON QUESTIONS

Which length do I need?

Measure from the fitting face to where you want to read. 4 inch is the standard on inline sight glasses and sight spools, and solvent tanks vary. The listed lengths are stocked. Custom lengths are built to order in 5 to 7 days and are not returnable.

How does it mount?

Through a 1/4 inch weld bore-through fitting, which is a separate part, or through our Thermocouple Tee. The probe is a bare stem with no threads and no compression fitting, so it does not thread into an NPT port.

Is it rated for a C1D1 room?

It is nonincendive for Class I, Division 1 locations per NFPA 70, Article 500.7, as documented in 3P Certz engineering report ECR-200023-R0.

What do I need to read it?

The probe ends in a standard size male K plug and our 4-channel data loggers take mini-K, so you also need the K to mini-K extension cable between them. We build the cables here.
