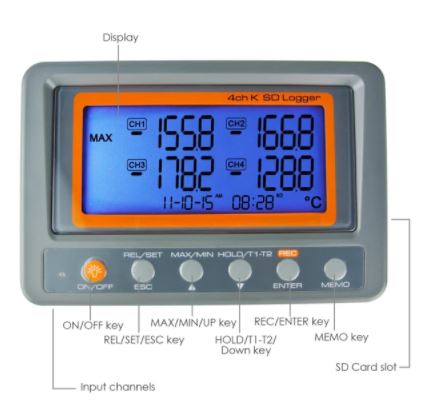

4-channel K-type thermocouple data logger, display, keys, input channels and SD card slot labeled
Thermo-Logger-4Port-2

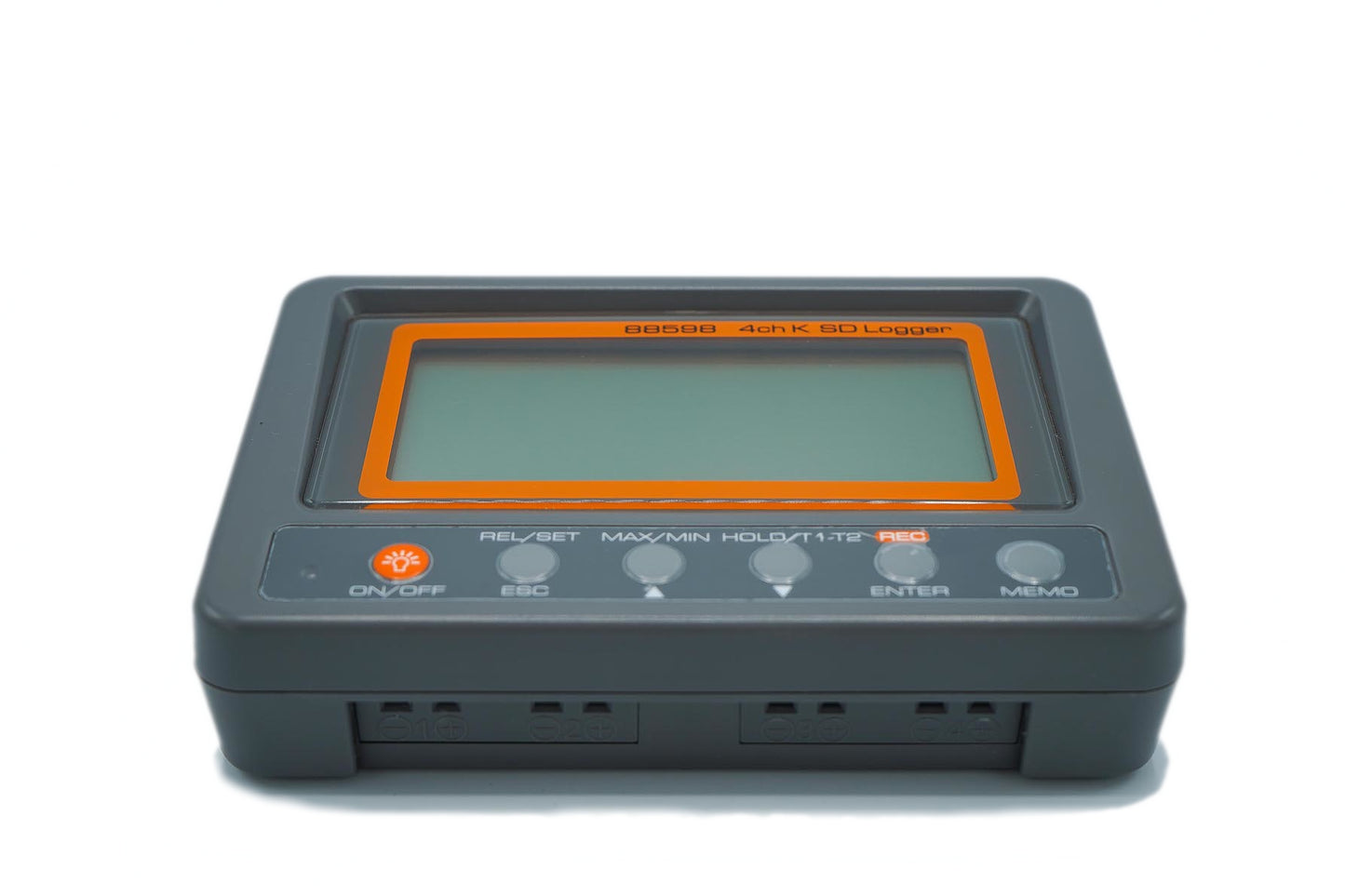

K-Type Thermocouple Data Logger, 4 Channel, SD Card

$280.00IN STOCK
Ships in 1 business day
2 sizes, $280.00 to $312.00

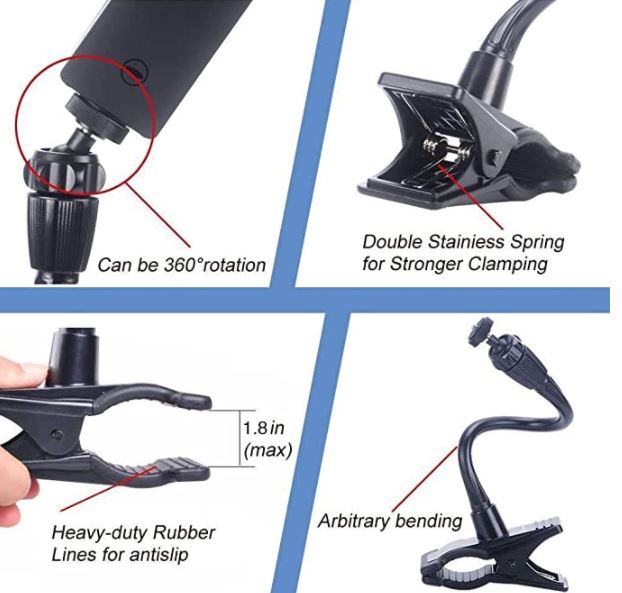

SELECT MOUNT

ABOUT THIS PART

A four channel K-type data logger that records to an SD card with no software or computer attached. Its inputs are mini-K, so our 1/4 in. probes need a K to mini-K cable. It carries CE only, so on our systems it sits at least 12 ft from the machine or outside the room.

SPECIFICATIONS

Channels4, K-type, mini-K inputs
Measuring range-200 to 1370 °C (-328 to 2498 °F)
Resolution0.1 °C, 0.1 °F
Accuracy±(0.3% of reading + 1 °C), at 18 to 28 °C (64 to 82 °F) ambient
Sampling rateProgrammable from 1 second up
MemorySD card, no software required, 8 GB card included
Operating environment0 to 50 °C (32 to 122 °F), relative humidity under 80%
Power4 x AA batteries, included. 9V adaptor not included
Hazardous locationCE only. No C1D1 listing and no intrinsic safety listing
Source for all figures3P Certz engineering report ECR-210006-R1
TECHNICAL DETAILS

A four channel K-type thermocouple data logger that writes straight to an SD card, so a whole run is recorded with no software and no computer attached. $280.00 for the logger, $312.00 with the flex mount.

Four readings on one screen is the point of it. Column, collection, recovery and solvent tank, logged together on one time base, which is how you actually see what a run did.

What it does

  • Four K-type inputs, all four displayed at once on a 104 x 47 mm backlit LCD with a real-time clock
  • Logs to an SD card with no software required and no fixed record limit. An 8 GB card is in the box
  • Sampling rate programmable from 1 second up
  • Programmable high and low temperature alarm limits, with a beeper and an LED
  • Hold, max and min from power on, one-button T1 minus T2, and a temperature offset for trimming a probe
  • Handheld or wall mounted. Runs on 4 AA batteries, included, or a 9V adaptor, not included

What is in the box

  • The logger
  • Two K-type thermocouple wires. They come from the maker in the set and they ship to you with the logger, we do not pull them out
  • One 8 GB SD card
  • 4 AA batteries and the operation manual

Those two K-type items are wires, not probes. They are bare wire thermocouples for reading air, surface or line temperature, and they are not the 1/4 inch stainless thermocouple probes we build into vessels. If you need a stainless probe in a process port, that is a separate part on our thermocouple probe page.

Specification

Every figure below is from 3P Certz engineering report ECR-210006-R1, where this logger is qualified as an electrical component.

Item Value
Channels 4, K-type
Measuring range -200 to 1370 °C (-328 to 2498 °F)
Resolution 0.1 °C, 0.1 °F
Accuracy ±(0.3% of reading + 1 °C), at 18 to 28 °C (64 to 82 °F) ambient
Sampling rate Programmable from 1 second up
Memory SD card, no software, no fixed limit. 8 GB card included
Thermocouples included Two K-type thermocouple wires, in the box, shipped to you
Operating environment 0 to 50 °C (32 to 122 °F), relative humidity under 80%
Storage -20 to 50 °C (-4 to 122 °F)
Power 4 x AA batteries, included. 9V adaptor not included
Size and weight 152 x 100 x 39 mm, about 300 g (0.66 lb)
Certification CE. No C1D1 listing and no intrinsic safety listing

Where it is allowed to sit

  • This logger has no C1D1 listing, so it does not belong inside the classified zone. An extraction room running propane, butane or isobutane is a Class I Division 1 space, and electrical equipment inside it is expected to be listed or labeled for C1D1 by a qualified testing laboratory
  • Our certifier, 3P Certz, has determined that on our systems this logger may stay in the booth as long as it is at least 12 feet from the machine, because the device sits only marginally over the intrinsic safety energy limit. Twelve feet is the floor, not a target
  • If your room will not give you 12 feet, the logger goes outside the wall instead. Confirm either arrangement with whoever certifies your own room before you rely on it
  • If you genuinely cannot get the logger out of the zone, the answer is an intrinsically safe instrument instead of this one. A single input and a dual input intrinsically safe thermocouple thermometer, certified Ex ia IIB T4 Ga, Class I Division 1 Groups C and D, UL and ATEX, is qualified on our systems in the same report. It costs several times what this does. Ask us and we will point you at it
  • Note the operating range as well: 0 to 50 °C (32 to 122 °F). The logger itself is not a cold-room instrument even though its probes read to -200 °C (-328 °F)

Fitment

  • The inputs take mini-K. Our 1/4 inch K-type thermocouple probes end in a standard size male K plug, so a K to mini-K extension cable goes between the probe and this logger. That cable is the adapter, not an accessory
  • Size the cable for the distance the logger has to keep, not for the bench. Our shortest listed cable is 6 feet and that does not cover 12 feet, so most runs need 15 feet or more
  • Four channels means four thermocouples, and most systems have more temperature points than that. Pick the four that matter for the run you are logging
  • The two K-type wires in the box are included in the price. They do not replace a 1/4 inch stainless probe, and buying this logger does not get you two of those

Ships in 1 business day from Bend, Oregon. This is a purchased instrument, not something we fabricate. More on how these systems are certified in Certifications and Compliance.

FITSTakes mini-K on all four inputs, so our 1/4 inch K-type thermocouple probes need a K to mini-K extension cable in between, because the probes terminate in a standard size male K plug. Four channels means four thermocouples on one time base, which covers the column, collection, recovery and solvent tank on a typical run. Two K-type thermocouple wires ship in the box with the logger and they go to you. Those are wires, not probes. Does NOT include any of our 1/4 inch stainless thermocouple probes and does NOT include a K to mini-K extension cable. Does NOT carry a C1D1 or intrinsic safety listing, so it does not belong inside the classified zone. On N.B. Oler systems 3P Certz has determined it may stay in the booth only at 12 ft or more from the machine, otherwise it goes outside the room. Operating environment is 0 to 50 C (32 to 122 F), so the logger itself is not a cold-room instrument even though the thermocouples read far lower.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Maintaining a Laboratory Notebook →
Recording times, temperatures and pressures so a run can be reproduced or defended
Site Requirements and Utilities for a Hydrocarbon System →
Where electrical equipment is allowed to sit relative to a C1D1 classified space
Certifications and Compliance →
What a 3P Certz engineering report covers, and why the listing on an instrument matters
3P Certz engineering report ECR-210006-R1 →
qualifies this logger as an electrical component and is the source for every specification on this page, in...
NFPA 70, Article 500.7
protection techniques for Class I Division 1 locations, and the requirement that equipment inside the zone ...

COMMON QUESTIONS

Can it go in the extraction room?

Not freely. It carries CE only, with no C1D1 or intrinsic safety listing. 3P Certz has determined that on our systems it may stay in the booth at least 12 feet from the machine. If your room will not give you 12 feet, it goes outside the wall. Confirm either arrangement with whoever certifies your own room.

What do I need to use it with your probes?

A K to mini-K extension cable. This logger takes mini-K and our 1/4 inch probes end in a standard size male K plug. We build the cables here in any length.

Are the included thermocouples the same as your 1/4 inch stainless probes?

No. The two in the box are K-type wire thermocouples for air, surface or line readings. Our 1/4 inch probes are a stainless stem for a vessel, column or sight spool port, sold separately.

Does it need software or a computer?

No. It writes to the SD card on its own. An 8 GB card is in the box.
