Superlok 1/2" Bulkhead Union SBHU-8-S316 - N.B.Oler
SBHU-8-S316

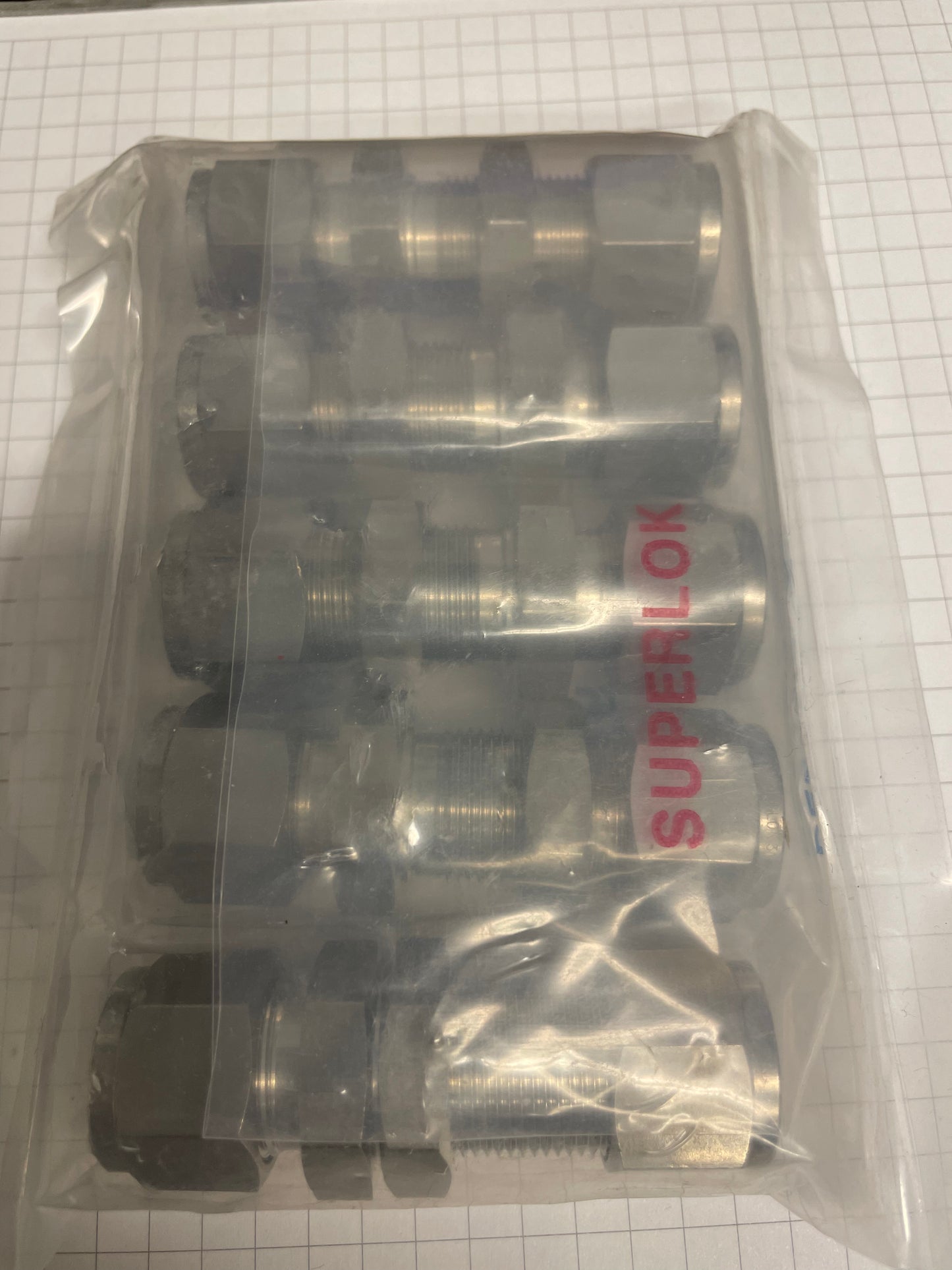

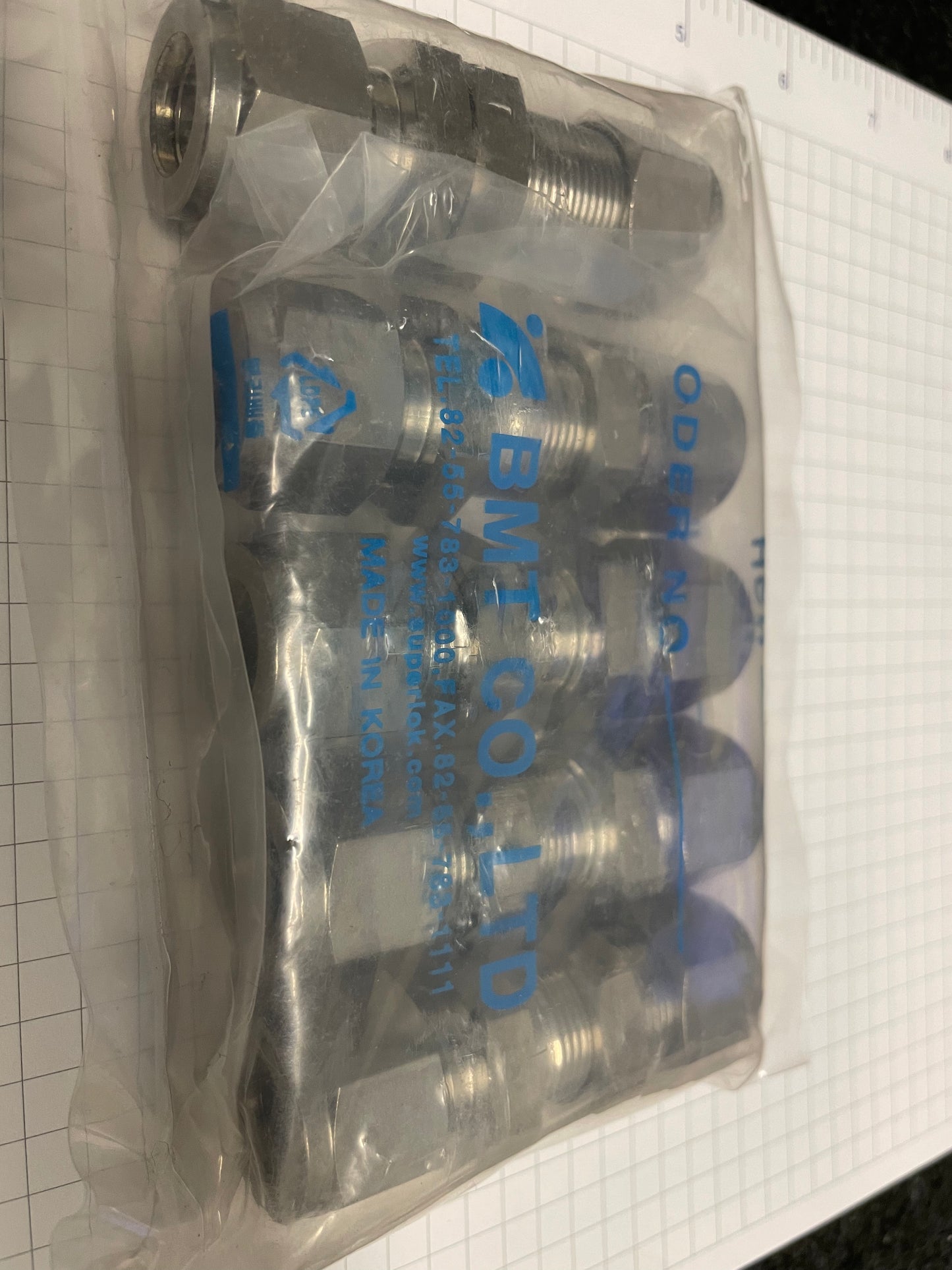

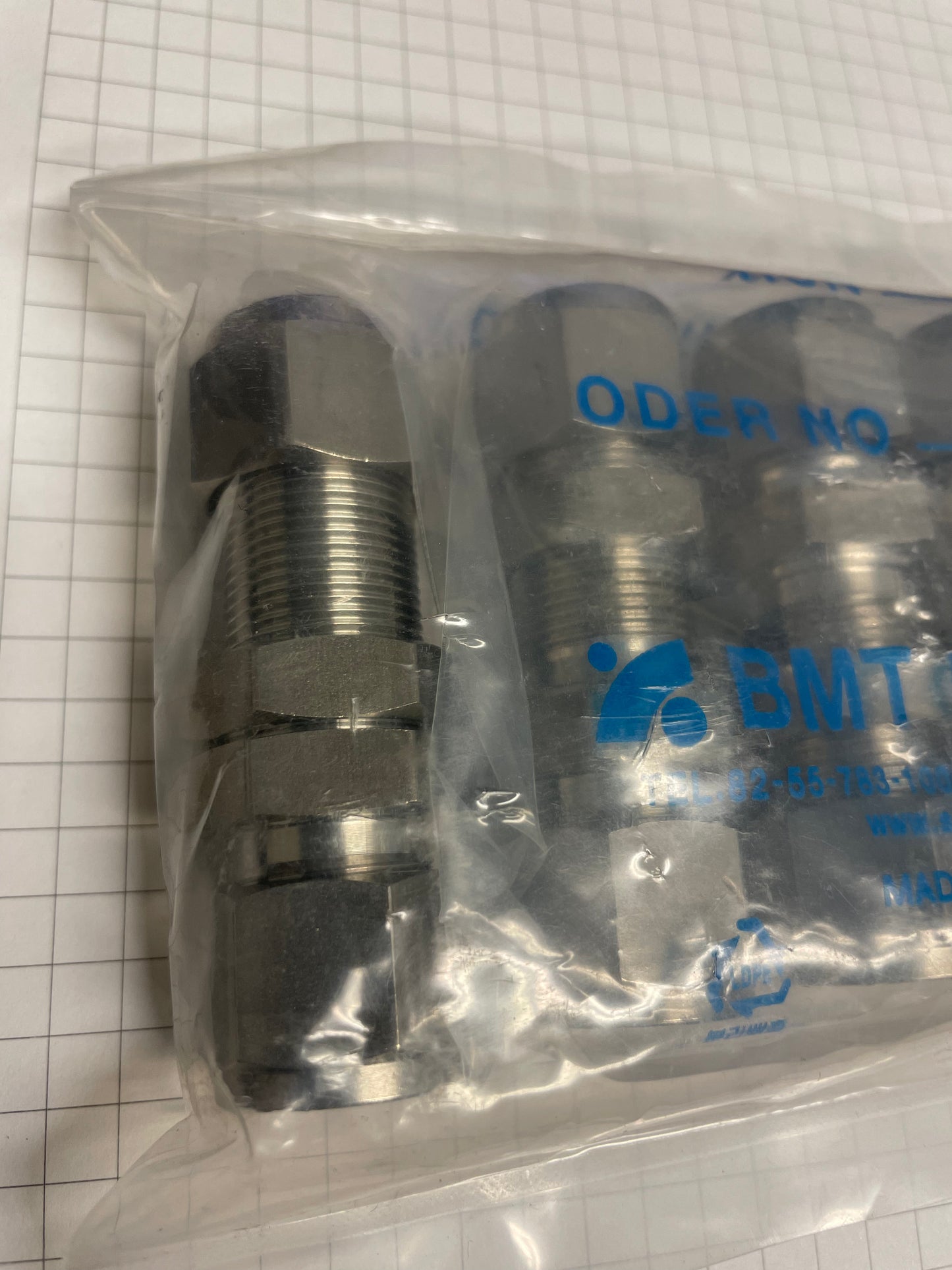

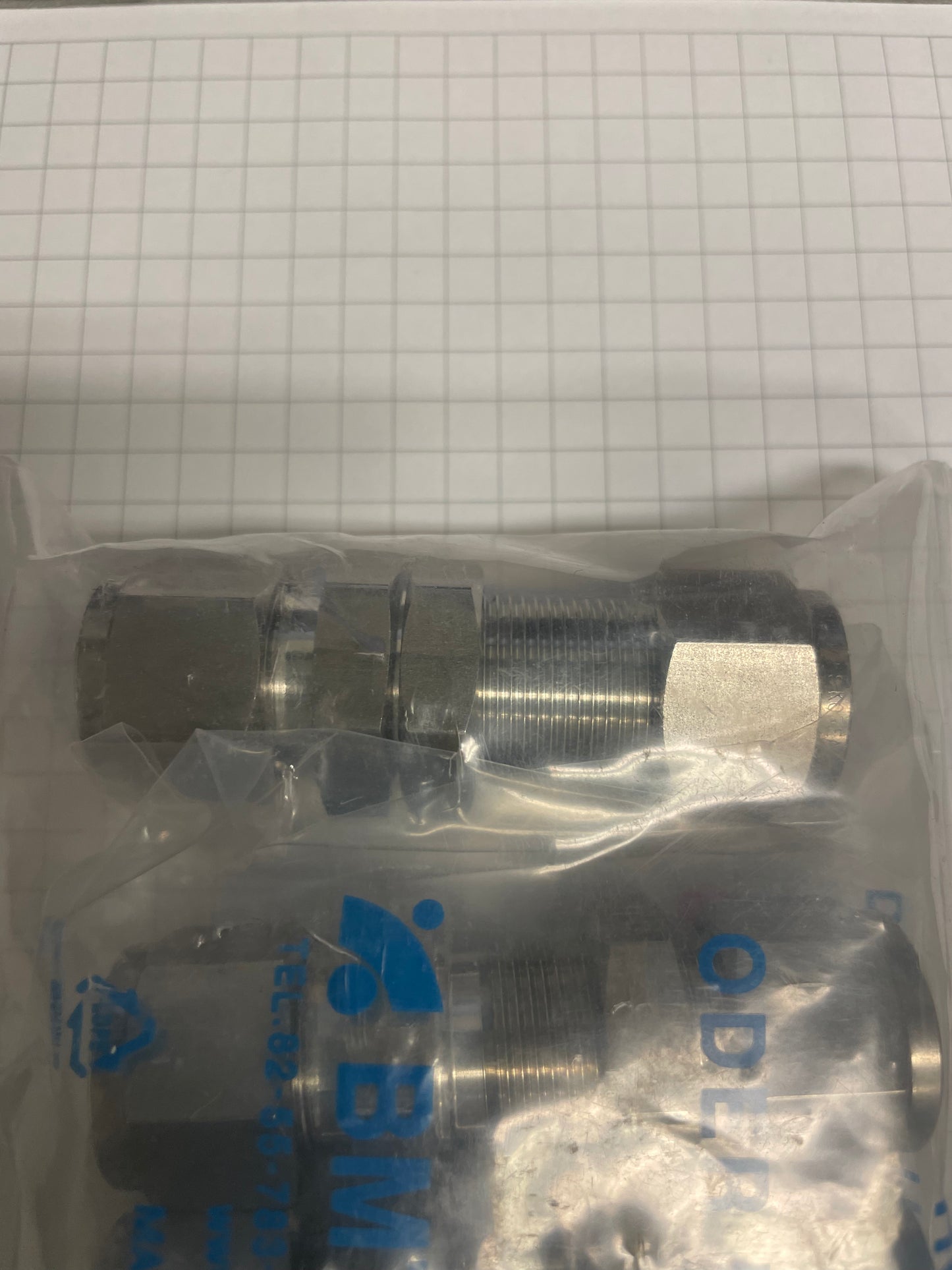

Superlok 1/2" Bulkhead Union SBHU-8-S316, 316 Stainless

$25.00$35.00IN STOCK
Ships in 1 business day

ABOUT THIS PART

Superlok SBHU-8-S316 bulkhead union, 1/2 inch tube on both sides, 316 stainless. It carries a tube line through a panel, an enclosure wall or a skid frame and keeps the joint accessible from both faces. $25.00, down from $35.00.

SPECIFICATIONS

TypeBulkhead union, panel pass-through tube fitting
ManufacturerSuperlok
Part numberSBHU-8-S316
Superlok descriptionStraight bulkhead compression fitting, tube to tube
Size1/2 in. tube OD, both sides
Material316 stainless
SealTwo-ferrule compression, both ends
MountingThreaded barrel with jam nut for a drilled panel
PatternStraight through, not a reducer
Panel hole to drill0.750 in. (19.05 mm), measured on the part in our shop
Maximum panel thickness0.500 in. (12.70 mm)
Width across flats15/16 in.
Minimum bore0.410 in. (10.41 mm)
Overall lengthSuperlok publishes a length table but does not define its letters, so no figure is quoted. Call 541-330-6409 and we will measure the part
Barrel thread sizeNot published by Superlok and not measured yet. Call 541-330-6409 if you need it
Swagelok cross referenceSS-810-61, published by Superlok and its distributors
Bored-through versionSBHU-8-TM, not stocked here
Fitting family rating, per 3P Certz ECR-250902-R0Superlok 316 stainless tube fittings to 1 in., 2400 psi (165 bar), -320 F to 1200 F (-196 C to 649 C)
Working pressure of your lineSet by the tubing wall and the weakest component on the circuit, not by the fitting
Price$25.00, down from $35.00
On hand5
Not includedTube, nuts and ferrule sets for the mating tube
Built or stockedStocked in Bend

Drill a 0.750 inch hole. Panel up to 1/2 inch thick. Those are the two numbers you actually need before you order, and they are both below.

Superlok and its distributors publish the Swagelok SS-810-61 as the cross reference for this part. Genuine Swagelok SS-810-61 was listed at $96.63 in October 2026, and the nearest Superlok distributor price we could find was $27.99 on a one to two week lead. These are on the shelf in Bend.

What it is

  • 316 stainless body, nut and ferrule tube ends on both sides. Superlok's own catalog calls it a straight bulkhead compression fitting, tube to tube.
  • 1/2 inch tube OD in, 1/2 inch tube OD out. Not a reducer, and not a tube to NPT adapter.
  • Threaded barrel with a jam nut, so the fitting is held by the panel and the line lands square on both faces
  • Two-ferrule compression seal, the same make-up as the rest of the Superlok tube fitting family

Installing it in a panel

Panel hole to drill 0.750 in. (19.05 mm)
Maximum panel thickness 0.500 in. (12.70 mm)
Width across flats 15/16 in.
Minimum bore 0.410 in. (10.41 mm)

Drill the 0.750 inch hole, pass the barrel through, run the jam nut down on the back face and tighten against the panel. The hex sits proud of the hole on the front face, so the fitting cannot pull through. Thicker than 1/2 inch and the barrel will not leave enough thread for the jam nut, so measure the wall before you order.

The 0.750 inch figure is measured on the part here in the shop. Superlok does not publish a panel hole diameter or a barrel thread size for the SBHU series, so rather than leave a blank or copy a number off a distributor page, we put calipers on it. The maximum panel thickness, the hex and the bore are Superlok's published figures. Superlok also publishes a length table for this part but does not define what its letters mean, so no overall length is quoted here. We would rather leave a blank than have somebody cut a tube to a number we guessed at. Call 541-330-6409 and we will measure it.

Where it goes

  • Bringing solvent, nitrogen or CO2 lines through the wall of an enclosure or a C1D1 room partition
  • Panel-mounted gauge, transducer and instrument runs, where the line has to be broken at the panel
  • Skid frame pass-throughs, so a line can be disconnected outside without pulling the tube through the hole

Ratings

3P Certz engineering report ECR-250902-R0 covers Superlok 316 stainless tube fittings up to 1 inch at 2400 psi (165 bar) and -320 F to 1200 F (-196 C to 649 C). That is the fitting family figure in the report. Superlok does not publish a working pressure for this part on its own, and what your line actually holds is set by your tubing wall and by the weakest component on the circuit, not by the fitting.

Fitment

  • Fits 1/2 inch OD tube, both sides. It does not fit 3/8 inch or 3/4 inch, and it is not a tube-to-NPT adapter.
  • Needs a 0.750 inch hole in a panel no thicker than 1/2 inch.
  • Not a tri-clamp part and not a hose fitting.
  • Tube, nuts and ferrules for the mating tube are not included. We sell nut and ferrule sets separately.
  • If you need a plain union rather than a panel pass-through, we stock the Swagelok SS-810-6 in the same 1/2 inch size.
  • If you need four ways instead of two, we stock the Superlok SUC-8 union cross.

$25.00, priced on this page rather than behind a quote form. Five on the shelf. Ships from Bend, Oregon.

FITS1/2 inch OD tube on both sides, for carrying a tube line through a panel, enclosure wall or skid frame with a jam nut. Drill a 0.750 in. (19.05 mm) hole in a panel no thicker than 0.500 in. (12.70 mm). It does not fit 3/8 or 3/4 inch tube, it is not a tube-to-NPT adapter, it is not a reducer, and it is not a tri-clamp or hose fitting. The Swagelok cross reference is SS-810-61. Tube, nuts and ferrules for the mating tube are not included.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Stainless Steel: 304, 316 and 316L →
Why this bulkhead union is 316, and how the grade gets proven on paper
Stainless Tubing Burst and Working Pressure Chart →
What the 1/2 in. tube either side of the panel is rated to
Line Volume per Length →
Solvent holdup in the 1/2 in. run this union sits in
3P Certz engineering report ECR-250902-R0 →
the report covering Superlok 316 stainless tube fittings on N.B. Oler certified builds
Superlok SBHU bulkhead union catalog data
maximum panel thickness 0.500 in., width across flats 15/16 in., minimum bore 0.410 in., and the SS-810-61 ...
Panel hole diameter, measured in our shop
0.750 in. (19.05 mm), because Superlok does not publish it

COMMON QUESTIONS

What size hole do I drill?

0.750 in., which is 19.05 mm. We measured the part here rather than guess, because Superlok does not publish a panel hole diameter for this series.

What panel thickness will it take?

Up to 0.500 in., which is 12.70 mm, and that is Superlok's published figure. Thicker than that and the barrel will not leave enough thread for the jam nut, so measure the wall before you order.

What does a bulkhead union do that a plain union does not?

It mounts in the panel. The barrel is threaded and takes a jam nut, so the fitting is held by the wall and the tube lands square on both faces. A plain union just joins two tubes and has to be supported by the tube itself.

Is it 1/2 inch on both sides?

Yes. 1/2 inch tube OD in and 1/2 inch tube OD out, compression both sides. It is not a reducer and it is not a tube to NPT adapter.

How does it go in?

Drill the 0.750 in. hole, pass the barrel through, run the jam nut down on the back face and tighten against the panel. The hex sits proud of the hole on the front face so the fitting cannot pull through.

What is the thread on the barrel?

Superlok does not publish it and we have not measured it yet. Call 541-330-6409 if you need the thread rather than the hole size.

What is the Swagelok equivalent?

SS-810-61. Superlok and its distributors publish that cross reference themselves. Genuine Swagelok SS-810-61 was listed at $96.63 in October 2026.

What is it rated for?

3P Certz engineering report ECR-250902-R0 covers Superlok 316 stainless tube fittings up to 1 inch at 2400 psi (165 bar) and -320 F to 1200 F (-196 C to 649 C). Superlok does not publish a working pressure for this part on its own. In practice your working pressure is set by your tubing wall and by the weakest component on the circuit.

What is the hex size?

15/16 in. across the flats.

Is there a bored-through version?

Yes, SBHU-8-TM, which lets the tube pass straight through instead of butting at the fitting. We do not stock it.

Does it come with nuts and ferrules for my tube?

The fitting has its own nuts and ferrules on both ports. Tube and any spare nut and ferrule sets are separate items.

Will it work on a tri-clamp line?

No. This is a tube fitting. Tri-clamp needs a tri-clamp part.

How many do you have?

Five on the shelf. Inventory is tracked on this page, so the number you see is the number we have.

What does it cost?

$25.00, down from $35.00, priced on this page.
