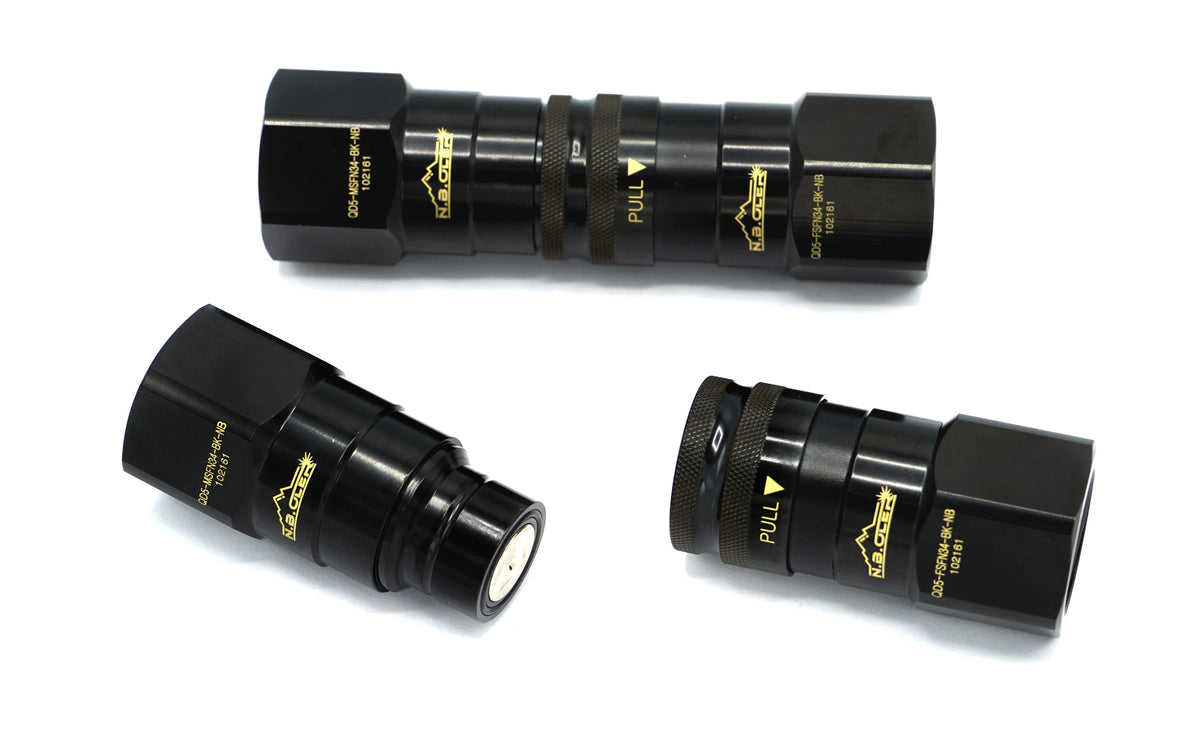

Zero spill quick connect couplings, 3/4 in. FNPT, black with gold marking
NB-QC-SET

Zero Spill Quick Connect Coupling Set, 3/4 in. FNPT, EPDM, Water and Glycol

$137.50IN STOCK
Ships in 1 business day

ABOUT THIS PART

A flat face, zero spill quick connect set: one male half and one female half, each with a 3/4 in. FNPT port. It is for hot water and glycol loops only. The EPDM seals must not go on a solvent line.

SPECIFICATIONS

Set contents1 male, 1 female half
Connection3/4 in. FNPT, each half
Max working pressure113.8 psi (7.8 bar) at 77 F
Temperature-4 F to 176 F (-20 C to 80 C)
SealEPDM
BodyNickel plated brass, black paint
Spill on disconnectAbout 0.2 ml at up to 7 psi (0.5 bar)
RebuildableNo
Price$137.50 the pair
TECHNICAL DETAILS

A zero spill quick connect coupling set for 3/4 inch water and glycol lines, built to N.B. Oler specification. One male half, one female half, 3/4 inch female NPT on the back of both. $137.50 the pair.

Why 3/4 inch

We needed 3/4 inch for hot water and glycol lines, so we had these made to our specification, with our own gold N.B. Oler marking on the body.

On a heating loop the coupling is usually the tightest restriction in the circuit. Stepping a 3/4 inch line down to a 1/2 inch coupling costs you heat transfer at the jacket, every hour it runs.

Water and water glycol only

The seals are EPDM, which is the right elastomer for water and glycol and the wrong one for hydrocarbons. These do not go on a solvent line. They are not a coolant or chiller fitting either. A chiller or glycol loop running colder than -20 C (-4 F) is outside the rating. These belong on the hot water side.

Specifications

Price $137.50 the pair, which buys both halves
Set contents One male half, one female half
Connection, each half 3/4 in FNPT
Maximum working pressure 113.8 psi (7.8 bar) at 25 C (77 F)
Temperature range -20 C to 80 C (-4 F to 176 F)
Freezing The fluid must not be allowed to freeze inside the coupling
Seal material EPDM
Body Nickel plated brass, black paint, gold N.B. Oler marking
Fluid released on disconnect About 0.2 ml at up to 7 psi (0.5 bar)
Serviceability Not rebuildable, no rebuild kit or spare seals
Sizes stocked 3/4 in
Sizes available to order 1/4 in and 1/2 in, NPT or push barb

The 0.2 ml figure, with its condition

Both halves close as they separate, so roughly 0.2 ml is released instead of a line's worth onto the floor. That 0.2 ml holds up to 7 psi (0.5 bar). Break the line above that and more comes off, so vent the loop first when you can.

Not rebuildable

There is no rebuild kit and no spare seals for these. When a coupling is worn out it gets replaced, not serviced. Keep a spare set on the shelf if the loop cannot be down.

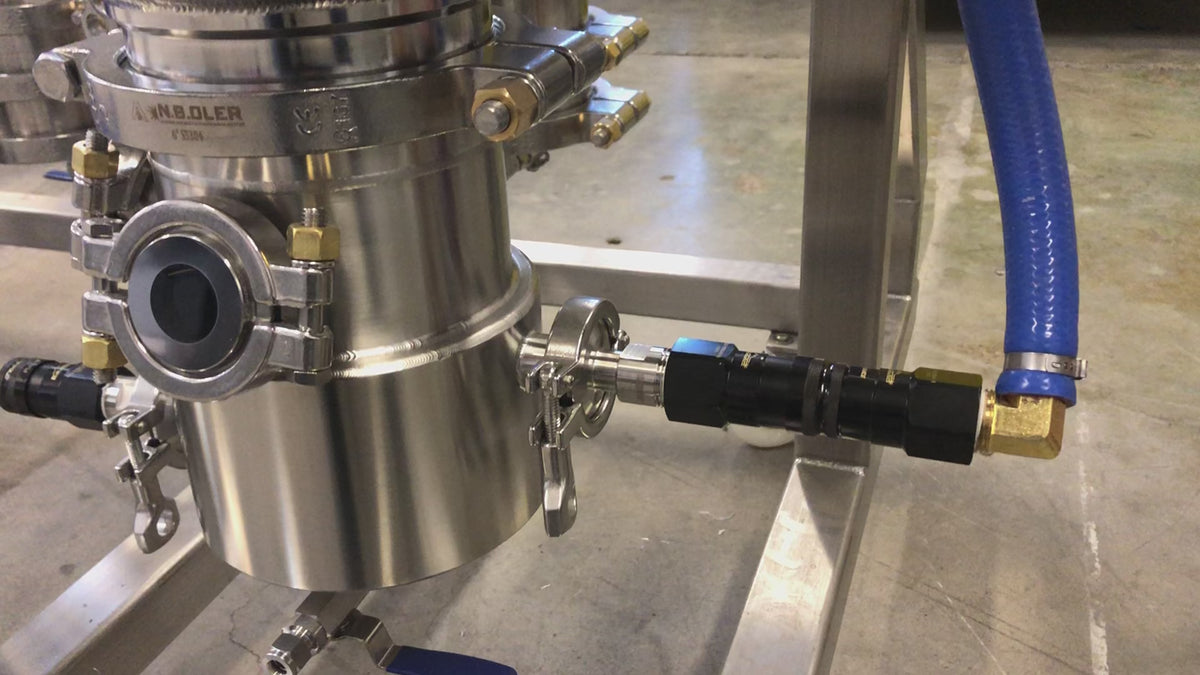

FITSThe hot water heating recirculation loop on N.B. Oler hydrocarbon systems, and any 3/4 inch water or water glycol line under 113.8 psi (7.8 bar) and between -20 C (-4 F) and 80 C (176 F). Does NOT fit solvent lines, and must not be used on one, because the EPDM seals are not hydrocarbon compatible. NOT a coolant fitting and NOT a chiller fitting. A glycol loop running colder than -20 C (-4 F) is outside the rating.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Chemical Compatibility: Seals, Gaskets and Stainless →
EPDM rates D against butane and propane, which is why these stay off a solvent line
Site Requirements and Utilities for a Hydrocarbon System →
The hot water and thermal fluid loop these couplings belong on
Certifications and Compliance →
What N.B. Oler certifies, and what a utility fitting sits outside of

COMMON QUESTIONS

What do I actually get for the price?

Both halves, one male and one female, for $137.50. Each has a 3/4 inch female NPT port on the back.

Can I use these on a solvent line?

No. The seals are EPDM, which swells in hydrocarbons. These are for water and water glycol only.

How much fluid comes out when I disconnect?

About 0.2 ml at up to 7 psi (0.5 bar). Above that more is released, so vent the loop before you break it if you can.

Can I run these on my chiller or a coolant loop?

No. These are hot side only. A chiller or glycol loop running colder than -20 C (-4 F) is outside the rating.
