3/8-16 304 stainless bolt, brass nut and split washer set for high pressure tri clamps
13MHP-RPLCMT-NUT

High Pressure Tri-Clamp Bolt Set, 3/8-16, 304 Stainless Bolt, Brass Nut

$1.65IN STOCK
Ships in 1 business day
5 sizes, $1.65 to $6.45
SELECT SIZE

ABOUT THIS PART

Replacement hardware for double bolted high pressure tri clamps. Each set is one 3/8-16 304 stainless bolt, one brass nut and one stainless split washer, in four lengths covering 3/4 to 12 in. clamps, and each clamp takes two sets. It does not fit our 6 in. heavy duty clamp, which uses M12.

SPECIFICATIONS

Thread3/8-16
Materials304 stainless bolt, brass nut, stainless split washer
Set contents1 bolt, 1 nut, 1 washer
Lengths and fits2 in. (3/4 in. clamp), 2.25 in. (1.5 in.), 2.75 in. (2, 2.5, 3 in.), 3.25 in. (4 to 12 in.)
Per clamp2 sets
Torque30 in-lb on elastomeric gaskets, 50 in-lb on rigid gaskets
ServiceReplace nuts every 6 months, bolts every 12 months
Price$4.95 to $6.45 a set, brass nut alone $1.65
Certification3/8-16 304 stainless bolts with brass nuts are the hardware on the 13MHP clamps listed in ECR-250902-R0, Appendix A
TECHNICAL DETAILS

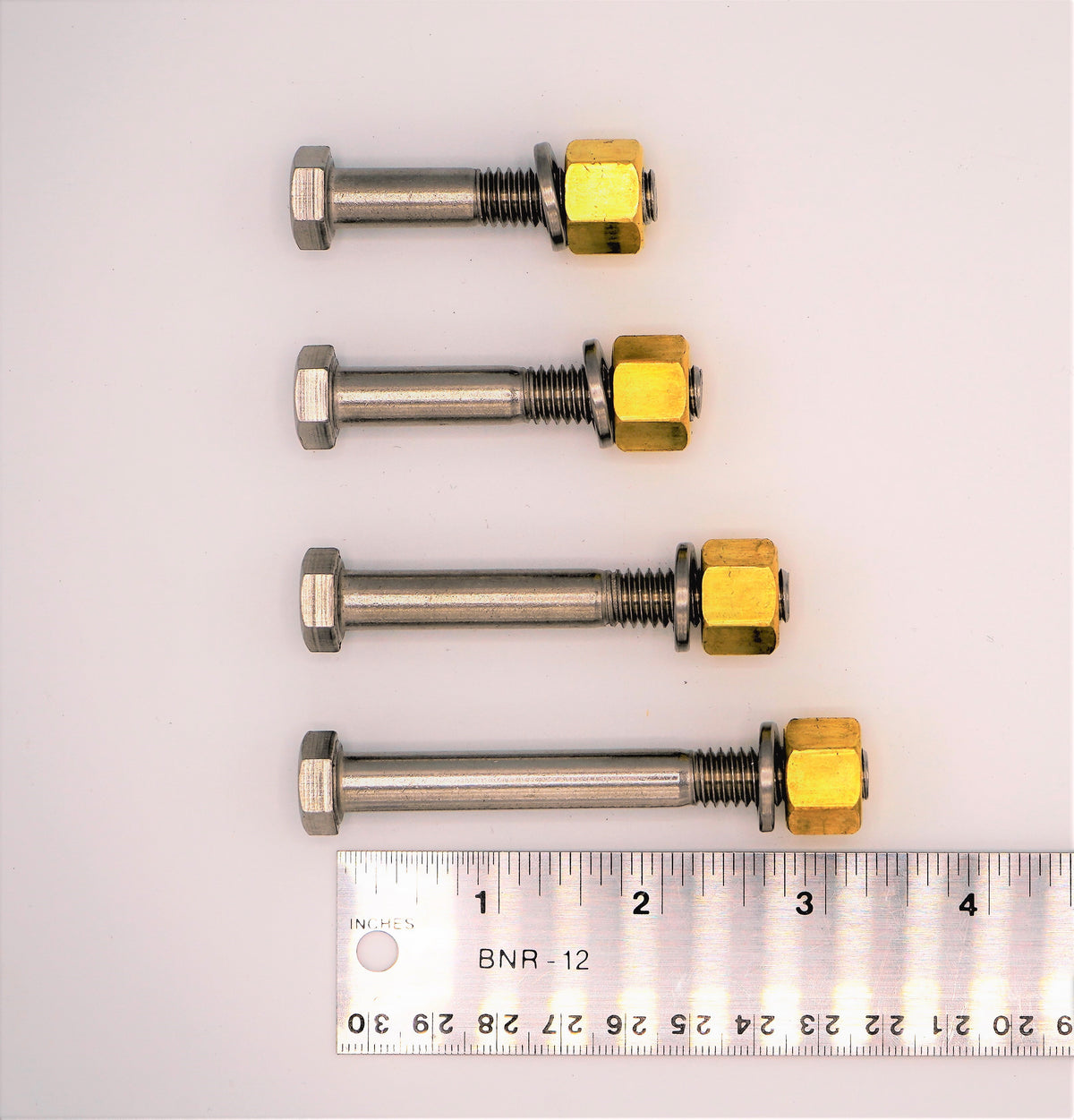

Replacement nut and bolt sets for bolted high pressure tri clamps. Each set is one 3/8"-16 304 stainless bolt, one brass nut and one stainless split washer, sold one at a time from $4.95. Four lengths cover every clamp size from 3/4 inch to 12 inch. Brass nuts on their own are $1.65.

Which length fits your clamp

Bolt length Fits these clamps Price
2" 3/4" $4.95
2.25" 1.5" $5.45
2.75" 2", 2.5", 3" $5.95
3.25" 4", 6", 8", 10", 12" $6.45
Brass nut on its own All of the above $1.65
  • Measure the shaft only, from the base of the head to the end of the thread, not including the head. That is how these are sized and it is where most wrong orders come from.
  • Each clamp takes two sets.
  • These are 3/8"-16. They do not fit our 6 inch heavy duty clamp, which closes on M12 x 1.75 hardware with a larger deep brass nut. Put a wrench on the nut before you order: 5/8 inch means 3/8 inch hardware, 3/4 inch means M12.
  • They do not fit standard single hinge tri clamps, which are wing nut clamps and are not bolted at all.

Why the nut is brass

The bolt is 304 stainless and the nut is brass, deliberately. Stainless threaded into stainless galls, seizes and eventually has to be cut off. Brass running on a stainless bolt does not, which is what lets these joints be broken and remade hundreds of times over the life of a system.

The trade is that the brass is the part that gives. The nut wears out well before the bolt does, which is why it is sold on its own at $1.65.

Torque and service

Elastomeric gasket, Buna-N, Viton, EPDM, silicone 30 in-lbs
Rigid gasket, PTFE or Tuf-Steel 50 in-lbs
Clamp casting maximum 130 in-lbf to 3 in, 200 in-lbf from 4 in up
Replace the brass nut Every 6 months
Replace the bolt Every 12 months

The gasket sets the torque, not the bolt, and the gasket figure is always the lower of the two, so it is always the one that governs. Torquing an elastomeric gasket to the casting maximum will extrude it and it will leak. Replace on the interval regardless of how the hardware looks, because a brass nut deforms internally before there is anything to see on the outside.

Which gasket you run decides which torque figure applies: Choosing the Right Gasket Material for Tri-Clamp Connections.

Ordering

Sets are sold individually so you can buy exactly what you need. If a length shows sold out, call the shop at 541-330-6409 and we will get it on order. Stocked in Bend, Oregon. In-stock parts ship in 1 business day.

FITSFits bolted high pressure tri clamps 3/4 in to 12 in: 2 in bolt for 3/4 in, 2.25 in for 1.5 in, 2.75 in for 2, 2.5 and 3 in, 3.25 in for 4, 6, 8, 10 and 12 in. Does NOT fit the heavy casting 6 in clamp, which takes M12 x 1.75, and does not fit single hinge tri clamps.
