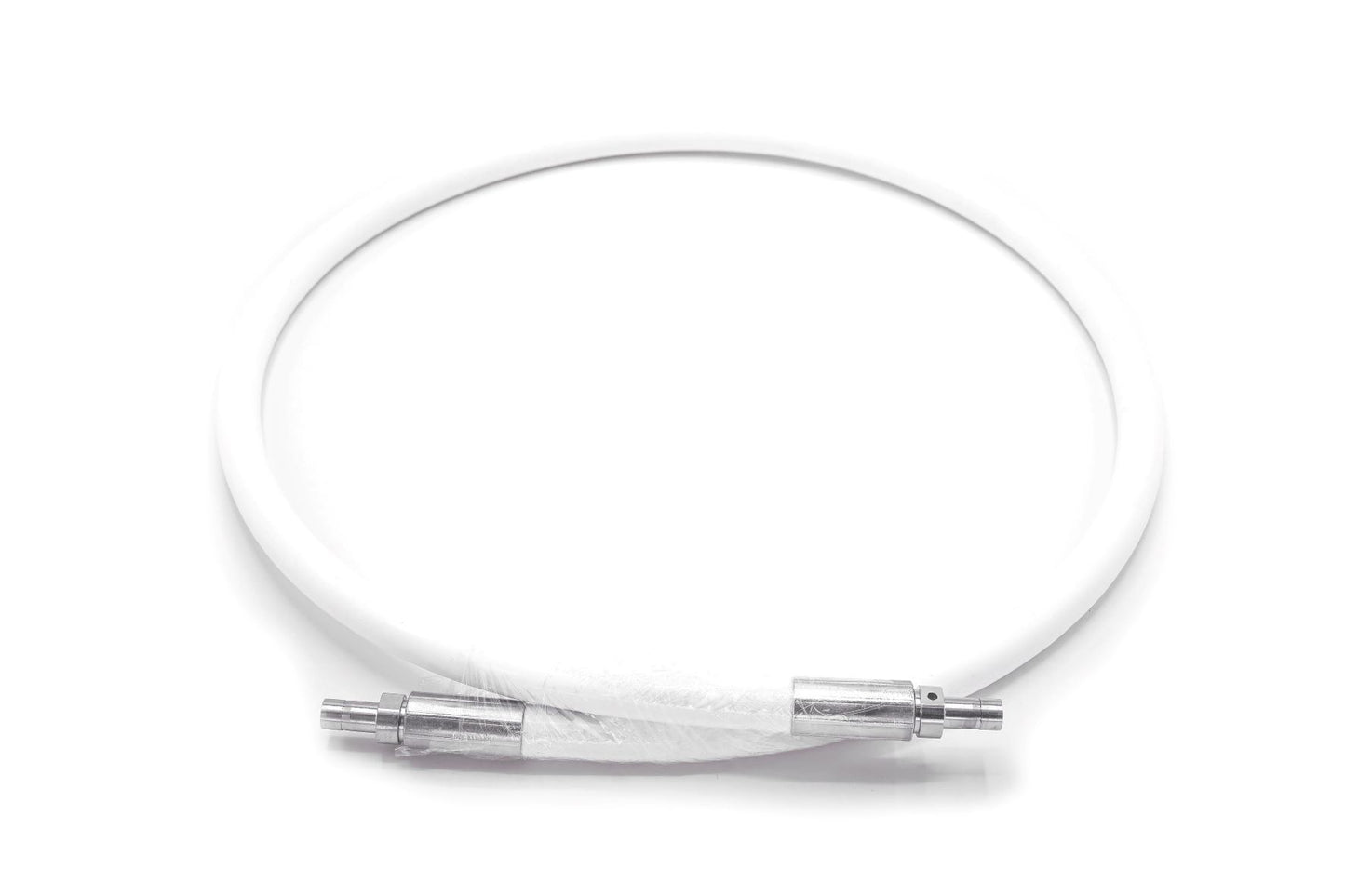

Static dissipative PTFE hose with white outer cover and 316 stainless compression tube stub ends
06STB3232-12

Static Dissipative PTFE Hose, Stainless Braid, 316 SS Tube Stub Ends, 3/8 to 3/4 in.

$154.95IN STOCK
Ships in 1 business day
21 sizes, $154.95 to $1,054.95
SELECT LENGTH AND SIZE

ABOUT THIS PART

A static dissipative (carbon-filled) PTFE hose: PTFE liner, stainless steel braid and a white outer cover, with 316 stainless compression tube stubs crimped on both ends, in 3/8, 1/2 and 3/4 in. The 3/8 in. assembly, NBO-PTFE-6, is rated 1000 psi and listed static dissipative in ECR-250902-R0. The report covers the 3/8 in. size only. It is a process hose for solvent service, not a sanitary hose.

SPECIFICATIONS

LinerPTFE with carbon blended in
Static dissipative3/8 in. NBO-PTFE-6, per ECR-250902-R0 Appendix A item 22. The report covers the 3/8 in. size only
BraidStainless steel, under a white outer cover
End fittings316 stainless compression tube stub, crimped, both ends
Wetted materials316 stainless and PTFE, per ECR-250902-R0
Maximum pressure1000 psi (68.9 bar), 3/8 in. NBO-PTFE-6, per ECR-250902-R0
Temperature range-80 °C to 200 °C (-112 °F to 392 °F), 3/8 in. NBO-PTFE-6, per ECR-250902-R0
Bore0.245 in (3/8), 0.37 in (1/2), 0.62 in (3/4)
LengthMeasured tip to tip. Custom lengths built to order
Minimum bend radiusNot published, and not listed in ECR-250902-R0
TECHNICAL DETAILS

A static dissipative PTFE hose assembly: PTFE liner, stainless steel braid, and a white outer cover over the braid, with 316 stainless compression tube stub ends crimped on both sides. In 3/8, 1/2 and 3/4 inch, from 12 to 144 inches. $154.95 to $1,054.95. Crimped in Bend, Oregon.

Static dissipative liner. The PTFE liner has carbon blended into it, so the charge that solvent builds moving through the bore is carried to the fitting instead of stored in the wall. The 3/8 in. assembly, N.B. Oler part NBO-PTFE-6, is listed as static dissipative in 3P Certz engineering report ECR-250902-R0, Appendix A item 22. The report covers the 3/8 in. size only. The 1/2 and 3/4 in. sizes are not in it. The same report instructs the operator directly: do not attach hoses without an approved static dissipative rating to the collection port, and the required warning label on a certified system reads "Use static dissipative hoses."

Ratings

Item Figure Source
Maximum pressure, NBO-PTFE-6 (3/8 in.) 1000 psi (68.9 bar) ECR-250902-R0, Appendix A item 22
Temperature range, NBO-PTFE-6 (3/8 in.) -80 to 200 °C (-112 to 392 °F) ECR-250902-R0, Appendix A item 22
Wetted materials 316 stainless and PTFE ECR-250902-R0, Appendix A item 22
Parker 06-STB braided PTFE hose, a separate item in the same report 900 psi (62.1 bar), -100 to 450 °F ECR-250902-R0, Appendix A item 21
NFPA 58 minimum after couplings 700 psig (48.3 bar) NFPA 58, 5.11.6.4(C)

NFPA 58 requires an LP-Gas hose assembly to hold at least 700 psig (48.3 bar) once the couplings are on. The 3/8 in. assembly is rated 1000 psi (68.9 bar) in ECR-250902-R0.

Sizes and bore

The hose is named by its fitting size, not its bore. Size from these numbers if you are working out flow.

Hose size Actual inside diameter Lengths
3/8 in. 0.245 in. 12, 24, 36, 48, 60, 72, 84, 96, 108, 120, 144 in.
1/2 in. 0.37 in. 24, 36, 48, 60, 72, 96 in.
3/4 in. 0.62 in. 24, 48, 60, 72 in.

Ordering and fitment

  • Length is end to end, tip to tip, across the whole assembly including both fittings. Order the length you need to span, not the hose between the ferrules
  • The fitting size has to match the hose size. We cannot crimp a 3/4 inch fitting onto a 3/8 inch hose. Going from one size to another is done with a reducer compression fitting outside the assembly, which adds length at each end
  • Any length, built to order. We have built 18, 30 and 54 inch assemblies among others, so ask
  • Not a sanitary hose. This is a process hose for solvent service. If you need a wash-down or food contact hose, this is not the part
  • On bend radius, because it is the most common disappointment: black braided PTFE, white PTFE and stainless braided hose all bend about the same, because all three are built around the same PTFE core. Changing the cover does not meaningfully tighten the radius. For a hard turn in a confined space the answer is bent stainless tubing fabricated to your geometry, and we do that work too

Inspection, per the certifier

  • Before each run, check every hose for cracking, splitting or kinking. A failed hose is replaced before the process continues
  • At least once a year, remove and inspect every hose, including the runs you cannot see in place
  • Never try to clear a blocked or kinked hose with pressure. Replace it

Crimped in our own shop in Bend. Related reading: Certifications and Compliance.

FITSAny 3/8, 1/2 or 3/4 inch compression tube fitting port. The end is a 316 stainless tube stub of the same nominal OD as the hose size, crimped on, and it seats in a standard compression fitting. To connect to a different size, use a reducer compression fitting outside the hose assembly. We cannot crimp a mismatched fitting onto the hose. The 3/8 inch size is the hose specified as NBO-PTFE-6 on N.B. Oler certified systems. Stainless braid under a white outer cover. Not a sanitary hose.
