Diamond Mine jacketed crystallization vessels, 1,000, 2,000 and 6,000 mL
NB-DM-1000J

Diamond Mine Jacketed Crystallization Vessel, 1,000 to 6,000 mL, 299 psi

$3,950.00IN STOCK
Ships in 1 business day
3 sizes, $3,950.00 to $6,355.00
SELECT DM OPTION

ABOUT THIS PART

A jacketed 304L stainless vessel for growing THCa crystal by slow solvent release, in 1,000, 2,000 and 6,000 mL. It is analyzed to ASME Section VIII Division 1 at 299 psi, and each unit ships with its own 3P Certz serial number and Certificate of Conformance. It is not an extractor and carries no electrical.

SPECIFICATIONS

Sizes1,000, 2,000 and 6,000 mL jacketed, $3,950 / $5,455 / $6,355
MAWP299 psi (20.6 bar). The 6 in. cap governs under UG-34 (ECR-190082-R3)
Shell304L stainless, calculates to 716.6 psi under UG-27 (ECR-190082-R3)
Max PRV set pressure200 psi (ECR-190082-R3)
Code basis2019 ASME BPVC Section VIII Div 1. No U stamp required because the ID is under 6 in. (ECR-190082-R3)
Paperwork3P Certz serial number and Certificate of Conformance per unit, including an ASCE7-16 seismic analysis for the install address
Connections6 in. MHP tri-clamp main joint, 2 in. MHM port, jacket inlet and outlet
Solvents reviewedButane, propane, ethanol, heptane, hexane
Lead time and shipping12 weeks, built to order. Freight, quoted after crating. Crate is 9 x 9 x 18 in.
Not includedHeater, chiller, hose, vacuum oven
TECHNICAL DETAILS

WHERE THE RATINGS COME FROM

Four components get calculated. The lowest one sets the vessel, and it is the cap.

Shell, UG-27 circumferential716.6 psiTorispherical head, UG-32492.4 psiFlat reinforced head, UG-34395.3 psi6 inch cap, UG-34this is what governs299 psiMAWP 299 psi0100200300400500600700psi

The cap governs, so the vessel is rated 299 psi (20.6 bar) and the shell is good for more than twice that. This is the whole of the ASME Section VIII Division 1 calculation in 3P Certz report ECR-190082-R3, and it is why the Diamond Mine does not need a U stamp: the inside diameter is less than 6 inches, so it falls outside the stamp requirement while still being calculated to the code.

Two relief valves, because one valve cannot do both jobs.

Adjustable PRV, the process controlmoves every day of the run10 psi250 psiFixed Generant CRV, the safety devicenever moves200 psi, fixedVessel MAWP299 psi050100150200250300psi

The adjustable PRV is the process. You bring the vessel up, then step it down ten to twenty psi a day toward 10 psi (0.7 bar), which is what grows clean crystal instead of cloudy fractured crystal. So that valve is moving the entire run. The fixed 200 psi (13.8 bar) Generant CRV takes no part in the process and never moves, which is what makes it a safety device. On a single PRV vessel both jobs land on one valve, so every process adjustment also moves your safety setting. See diamond formation.

The component calculations above are transcribed from 3P Certz report ECR-190082-R3. Reviewed for butane, propane, ethanol, heptane and hexane.

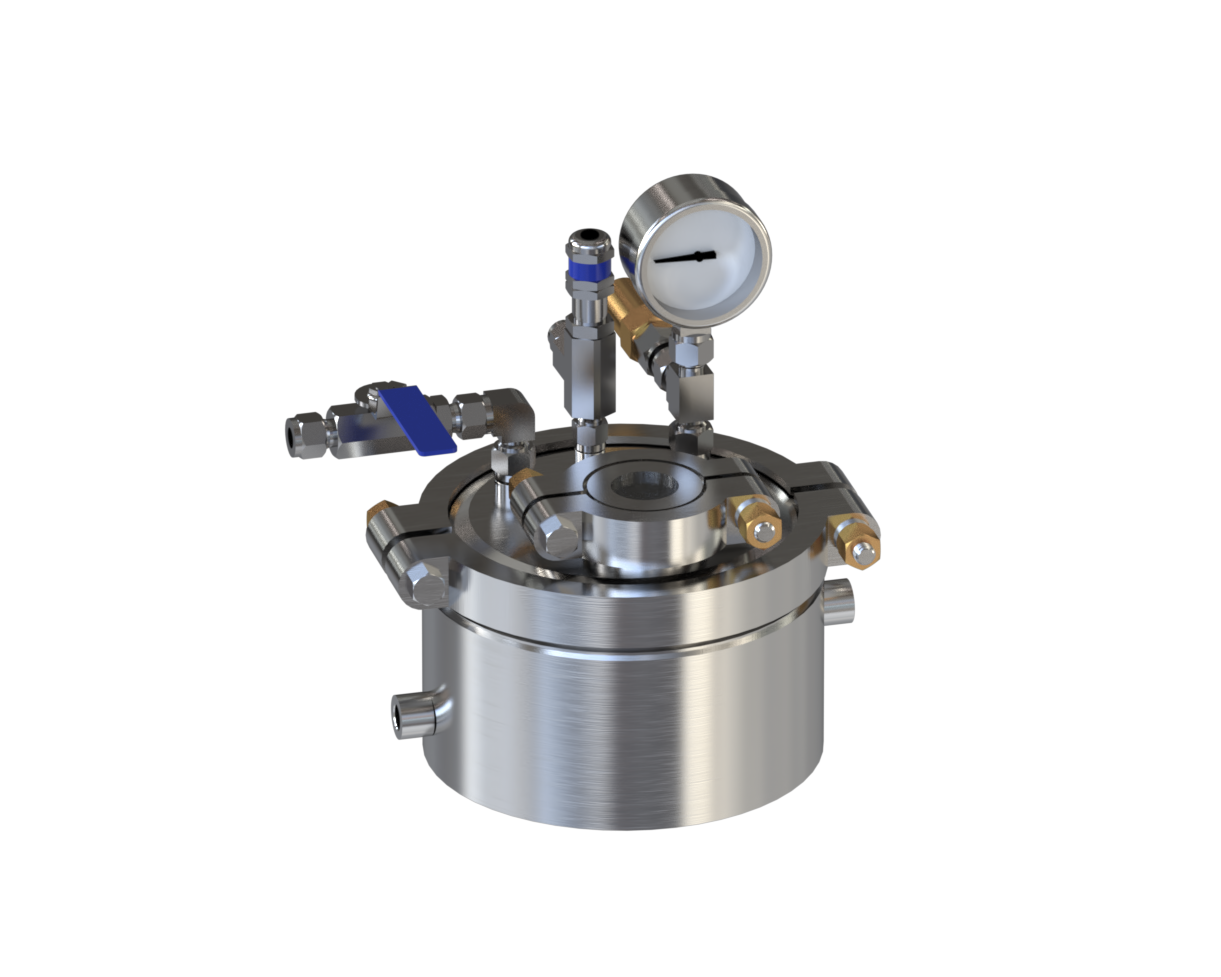

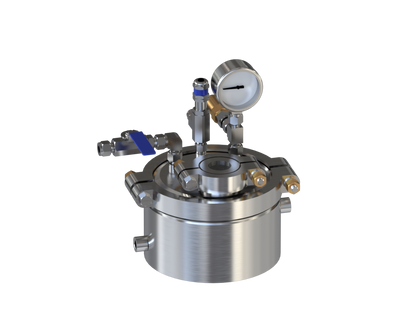

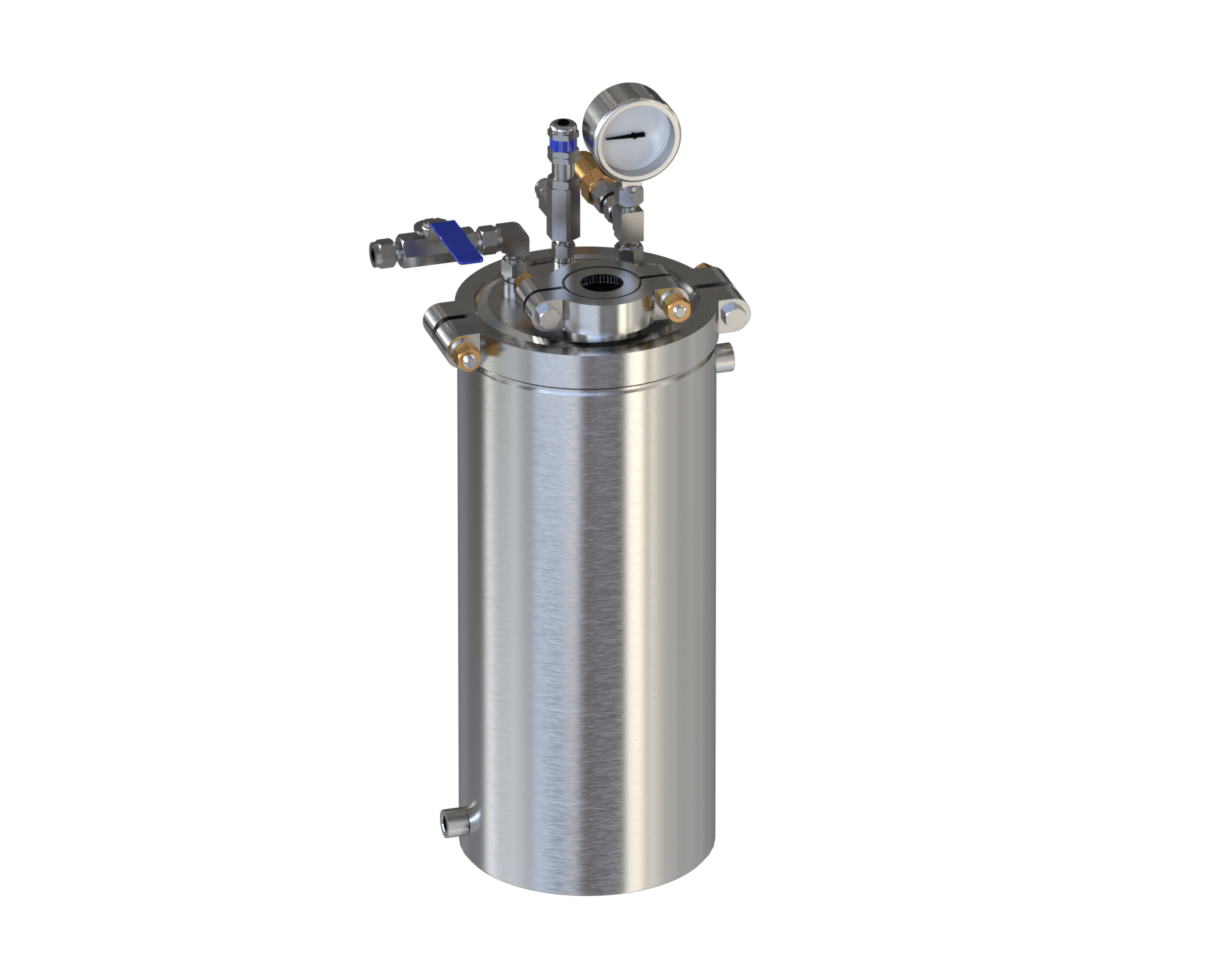

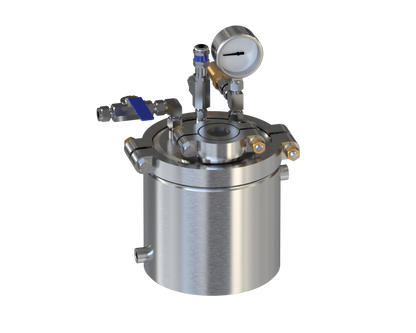

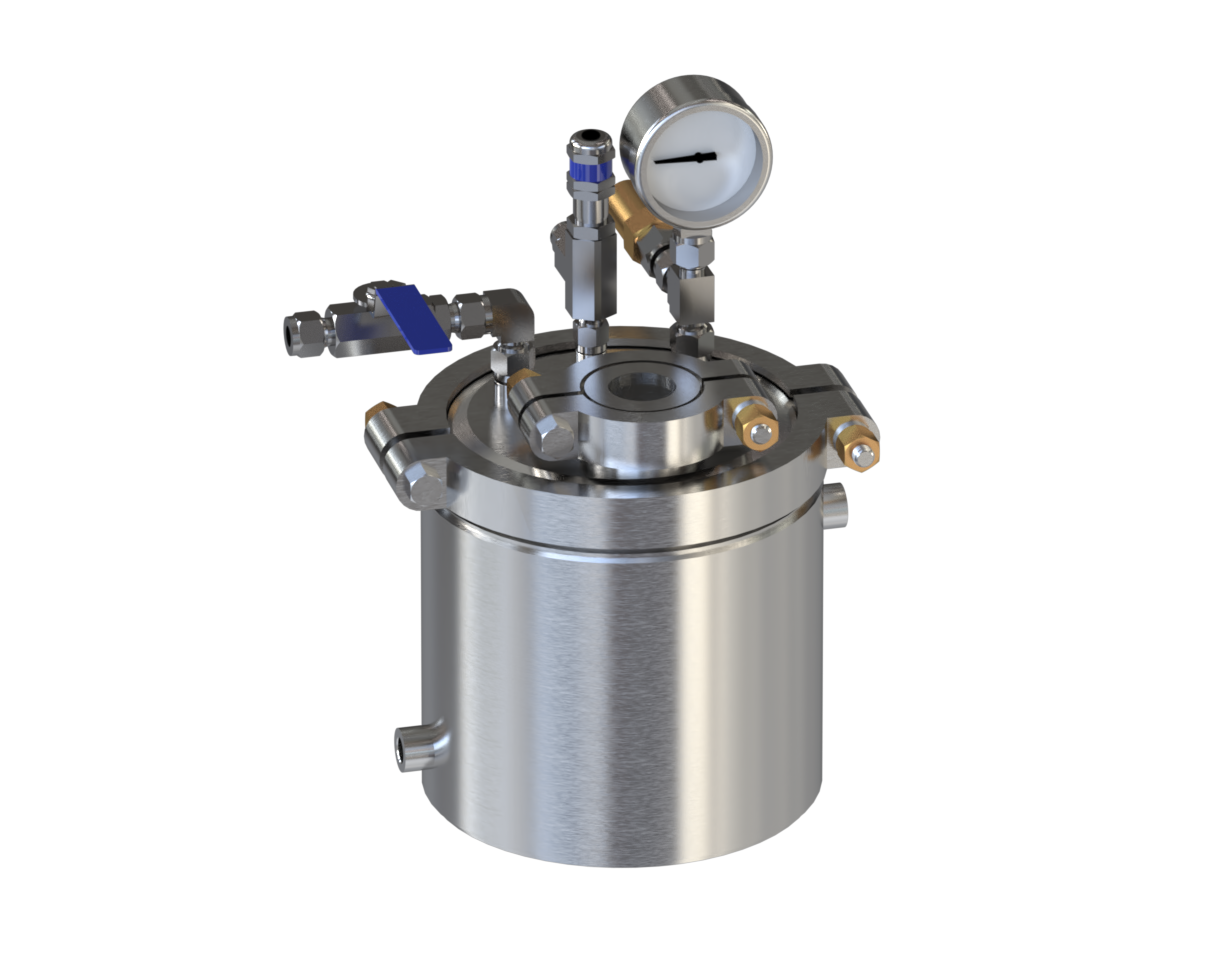

The Diamond Mine, also called a Diamond Miner, is a jacketed stainless pressure vessel built for growing THCa diamonds by slow solvent release. Three jacketed sizes: 1,000 mL at $3,950, 2,000 mL at $5,455 and 6,000 mL at $6,355.

  • Maximum allowable working pressure 299 psi (20.6 bar), calculated to ASME Section VIII Division 1.
  • Every unit ships with its own serial number and Certificate of Conformance from 3P Certz.
  • Twelve week lead time, built to order in Bend, Oregon.
  • Runs in a classified room or inside a vacuum oven. The vessel carries no electrical of its own.

How diamonds grow in it, and why there are two relief valves

Bring the vessel to temperature, start high, then step the pressure down ten to twenty psi a day toward 10 psi (0.7 bar). Pull it off fast and the solvent leaves in a rush, giving cloudy fractured crystal. Step it down daily and the THCa comes out of solution slowly enough to build clean, well formed diamonds. The chemistry is set out in Diamond Formation.

The two relief valves are not redundant.

  • Adjustable, 10 to 250 psi (0.7 to 17.2 bar). The process control, turned down day by day to meter solvent off the batch, so in normal operation it is always moving.
  • Fixed 200 psi (13.8 bar) Generant CRV. This is the safety device. It does not move and takes no part in the process.

On a single PRV vessel both jobs land on one valve, so every process adjustment also moves your safety setting. That is the argument for the dual PRV build.

Pressure and temperature

Component Calculation Rating
Shell UG-27 circumferential 716.6 psi (49.4 bar)
Torispherical head UG-32 492.4 psi (33.9 bar)
Flat head UG-34 395.3 psi (27.3 bar)
6 inch cap UG-34 299 psi (20.6 bar)

The cap governs, so the vessel is rated 299 psi (20.6 bar) and the shell is good for more than twice that. Maximum PRV set pressure is 200 psi (13.8 bar).

Reviewed for butane, propane, ethanol, heptane and hexane.

What is on it

  • 2 inch Metaglas sight glass, borosilicate window in a stainless ring. Metaglas publishes 232 psi (16 bar) and 536 F (280 C) maximum, so the window, not the vessel, sets your relief.
  • Compound pressure gauge, reads vacuum and pressure.
  • 3/8 inch ball valve for venting.
  • Adjustable PRV and fixed 200 psi (13.8 bar) Generant CRV, as above.
  • 6 inch MHP tri-clamp main joint and a 2 inch MHM tri-clamp port.
  • Jacket inlet and outlet for your heater or chiller, and a top cap with inlet valve for charging and draining into a closed loop.

Certification, stated exactly

The Diamond Miner is covered by 3P Certz engineering report ECR-190082-R3. On the ASME question the report says, word for word:

"This Diamond Miner has been analyzed using the 2019 ASME Boiler and Pressure Vessel Code, Section VIII, Division I. However, this vessel does not require an ASME U-Stamp since the inside diameter is less than 6"."

The same report finds it compliant with IFC 2018 Section 5003.2, NFPA 1 2018 Section 60.5.1.6, NFPA 30-2018 and NFPA 58-2017.

It also requires that "Each manufactured unit shall be reviewed by 3P Certz and issued a serial number and Certificate of Conformance prior to operation." Your Certificate also carries a site specific seismic analysis to ASCE7-16 for your install address, ending in a written determination on whether the unit needs anchoring where you are putting it. That is a document your fire marshal or AHJ can act on directly.

How it ships

One crate, 9 in x 9 in x 18 in tall, covers all three sizes. Freight, not parcel. Nothing is charged for freight at checkout, it is quoted and invoiced after the crate is measured.

Sizes, lead time and what it is not

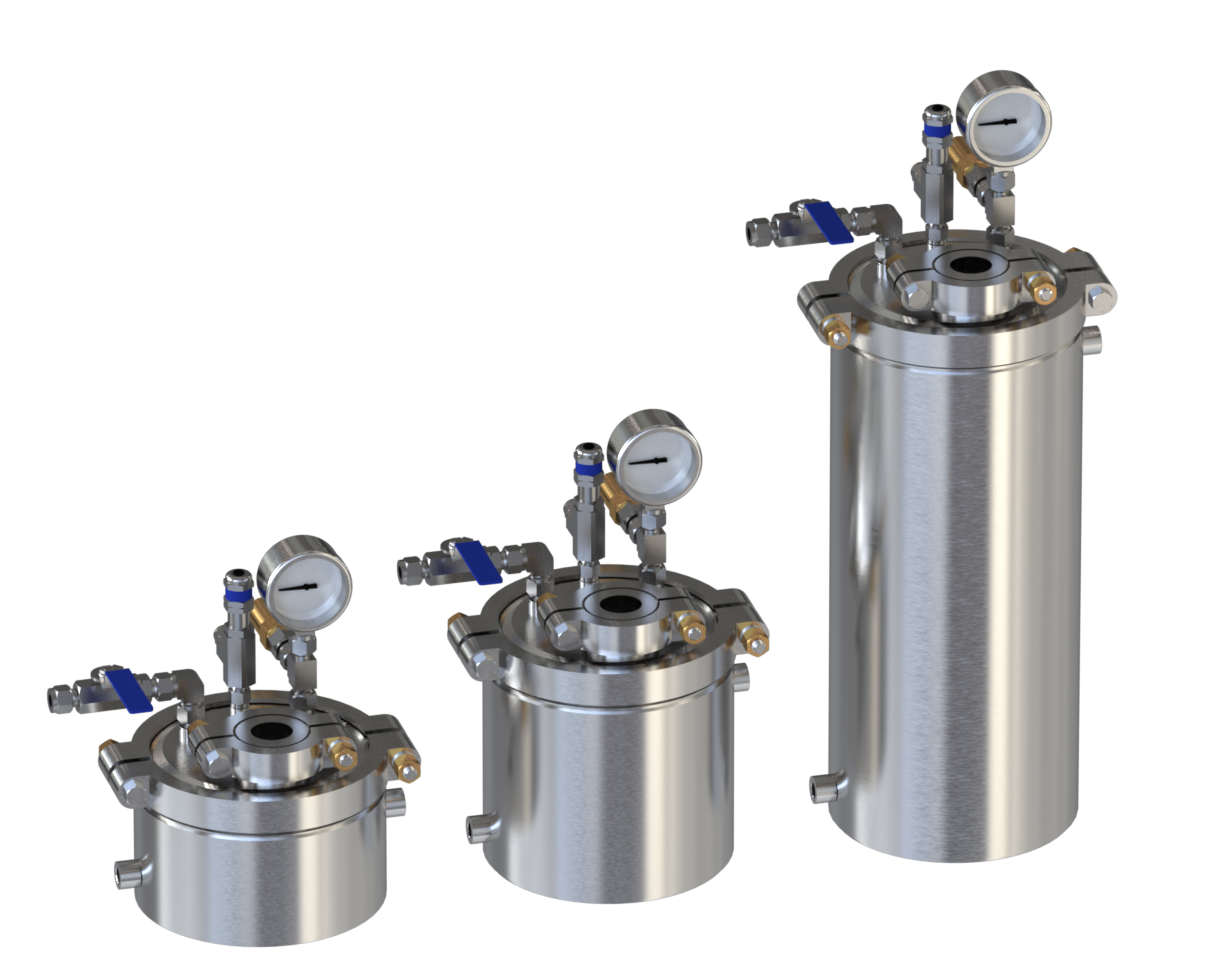

The three jacketed sizes here are what most labs buy. The certification covers fourteen configurations, dual and single PRV, flat reinforced and torispherical bottoms, 3 inch and 6 inch extensions, jacketed and unjacketed, and we still build most of them. Email info@nboler.com with what you are running. A non-standard build falls under the same report, so you are not starting a certification from scratch.

  • Twelve weeks, plus 3P Certz review and serialization before it ships. Tell us your permit deadline when you order and we will say honestly whether it is achievable.
  • No heater, chiller, hose or vacuum oven included.
  • Not an extractor. It does not run a closed loop. It is the vessel the oil goes into afterward.
  • The non-reinforced bottom is a different and much lower rated vessel at 51.5 psi (3.6 bar), and is not sold here.
FITSSits downstream of extraction, taking oil and residual solvent for nucleation and crystallization. Fits any classified extraction room and works inside a vacuum oven, because the vessel carries no electrical of its own. The jacket takes any recirculating heater or chiller through its inlet and outlet, not included. Main joint is a 6 inch MHP tri-clamp and the secondary port is a 2 inch MHM tri-clamp, so our 6 inch high pressure clamps, gaskets and end caps all fit it. Reviewed for butane, propane, ethanol, heptane and hexane. Does NOT include a heater, chiller, hose or vacuum oven, is NOT an extractor and does not run a closed loop on its own, and does NOT carry an ASME U stamp, which the certification report states it does not require because the inside diameter is under 6 inches.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Metaglas published ratings, MetaClamp Type 80, 2 in ASME BPE size →
the manufacturer's published 232 psi (16 bar) for the 2 inch sight glass on this vessel
Diamond Formation →
How slow solvent release grows clean THCa crystal, which is the whole job of this vessel
ASME vs Non-ASME Extraction Equipment →
Why this vessel is calculated to Section VIII Division 1 and still does not need a U stamp
Certifications and Compliance →
What the per-unit Certificate of Conformance and seismic analysis give you with an AHJ
Cryogenic Relief Valve Selection →
Choosing between the adjustable process valve and the fixed safety valve
Storage for THC, CBD and CBN →
Holding the product once the crystal is grown

COMMON QUESTIONS

What is it for?

Growing THCa crystal by slow solvent release. Bring the vessel to temperature, then step the pressure down a little each day so the THCa leaves solution slowly enough to form clean crystal.

Is it ASME certified?

It is analyzed to the 2019 ASME BPVC, Section VIII, Division 1. It does not carry a U stamp and does not need one, because the inside diameter is under 6 in. Report ECR-190082-R3 states this.

What paperwork comes with it?

3P Certz reviews every unit and issues it a serial number and Certificate of Conformance before operation. The certificate includes a seismic analysis to ASCE7-16 for your install address.

How long does it take?

12 weeks, built to order in Bend, plus the 3P Certz review and serialization.
