Stand-Alone Aqua-Tech CRC Column, 4" and 6"

$7,067.72BUILT TO ORDER
20 weeks from deposit
2 sizes, $7,067.72 to $8,606.63
SELECT COLUMN DIAMETER
Built to order and sold on a written quote, not through the cart.

ABOUT THIS PART

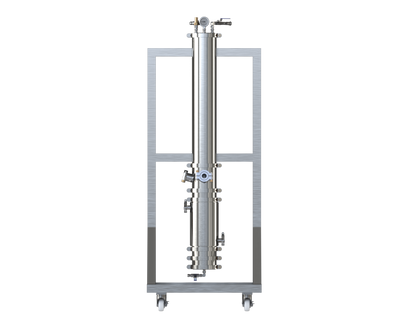

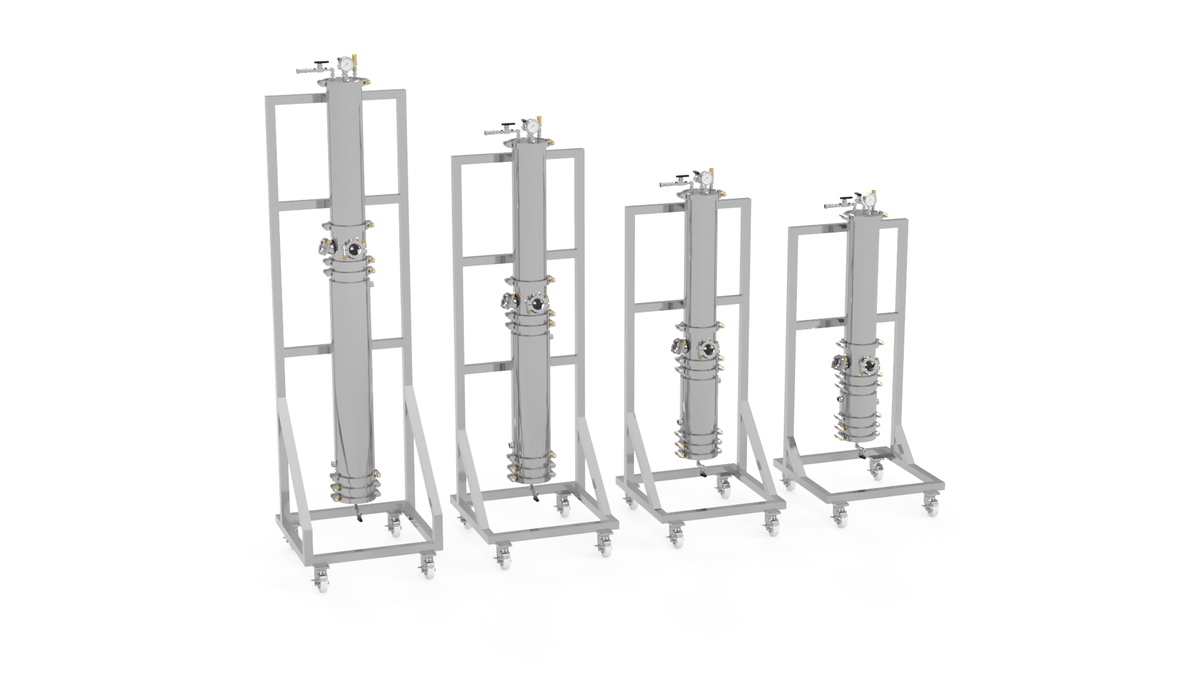

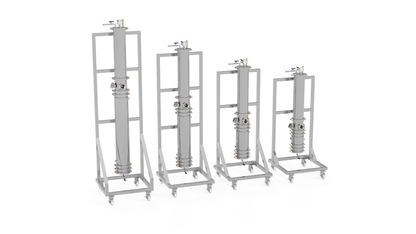

Stand-alone color remediation column on its own rolling rack, in 4 in and 6 in. $7,067.72 for the 4 in and $8,606.63 for the 6 in. Standard build is a 36 in top spool over a 12 in jacketed bottom spool, filters included. Certification is not in the price, see below.

SPECIFICATIONS

Sizes4 in and 6 in
Prices$7,067.72 for the 4 in, $8,606.63 for the 6 in
SKUsNB-CRC-COL-04IN, NB-CRC-COL-06IN
Standard build36 in top spool over a 12 in jacketed bottom spool
Jacket4 in column in a 5 in jacket; 6 in column in a 7 in jacket
Jacket connections1/2 in FNPT inlet and outlet
Top lidTwo 3/8 in compression ports, 250 psi (17.2 bar) relief valve, -30 inHg to 300 psi (-1.0 bar to 20.7 bar) compound gauge
Sight portsTwo 2 in. Metaglas 232 psi (16 bar), -22 F to 536 F (-30 C to 280 C), per Metaglas's published ratings. Rayotek substituted when supply requires it, at 300 psi (20.7 bar) and -40 F to 572 F (-40 C to 300 C)
Sight glass and certificationThe Rayotek is the window named by part number in ECR-250902-R0 and the MetaClamp is not. Both are fitted in this spool. Confirm the window with your own certifier if you are certifying or matching an as built
Top filter50, 25, 10 or 5 micron, your choice. We run a 10 micron
Bottom filtersTwo sintered discs, a 5 micron over a 1 micron
Bottom lidOne 3/8 in compression fitting with ball valve
RetentionTwo perforated plates and four drop-in rings, one plate group at each end of the media bed
Loading order, bottom upSintered discs 5 micron over 1 micron each dull side up, perforated plate, filter paper, two drop-in rings, pack the media, perforated plate, filter paper, two drop-in rings, then the 10 micron disc on top
GasketsBuna-N, Viton or PTFE envelope; Viton recommended
MountingOwn rolling rack
FiltersIncluded, along with both perforated plates and all four rings
CertificationNOT included. Peer Review and Certification is a separate $3,250 line item
Custom spool heightsAvailable on inquiry
Lead time16 weeks
Weights450 lb on the 4 in, 600 lb on the 6 in
ShippingLTL freight, quoted after the crate is measured
Built or stockedFabricated in our own shop in Bend, Oregon

Sizes, prices and weights

Column SKU Price Jacket Weight
4 in NB-CRC-COL-04IN $7,067.72 4 in column in a 5 in jacket 450 lb
6 in NB-CRC-COL-06IN $8,606.63 6 in column in a 7 in jacket 600 lb

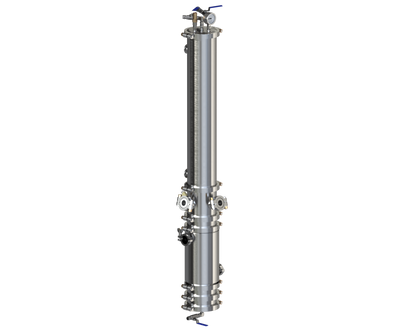

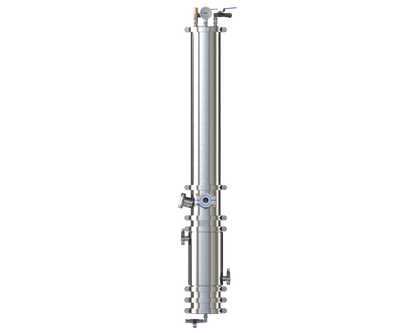

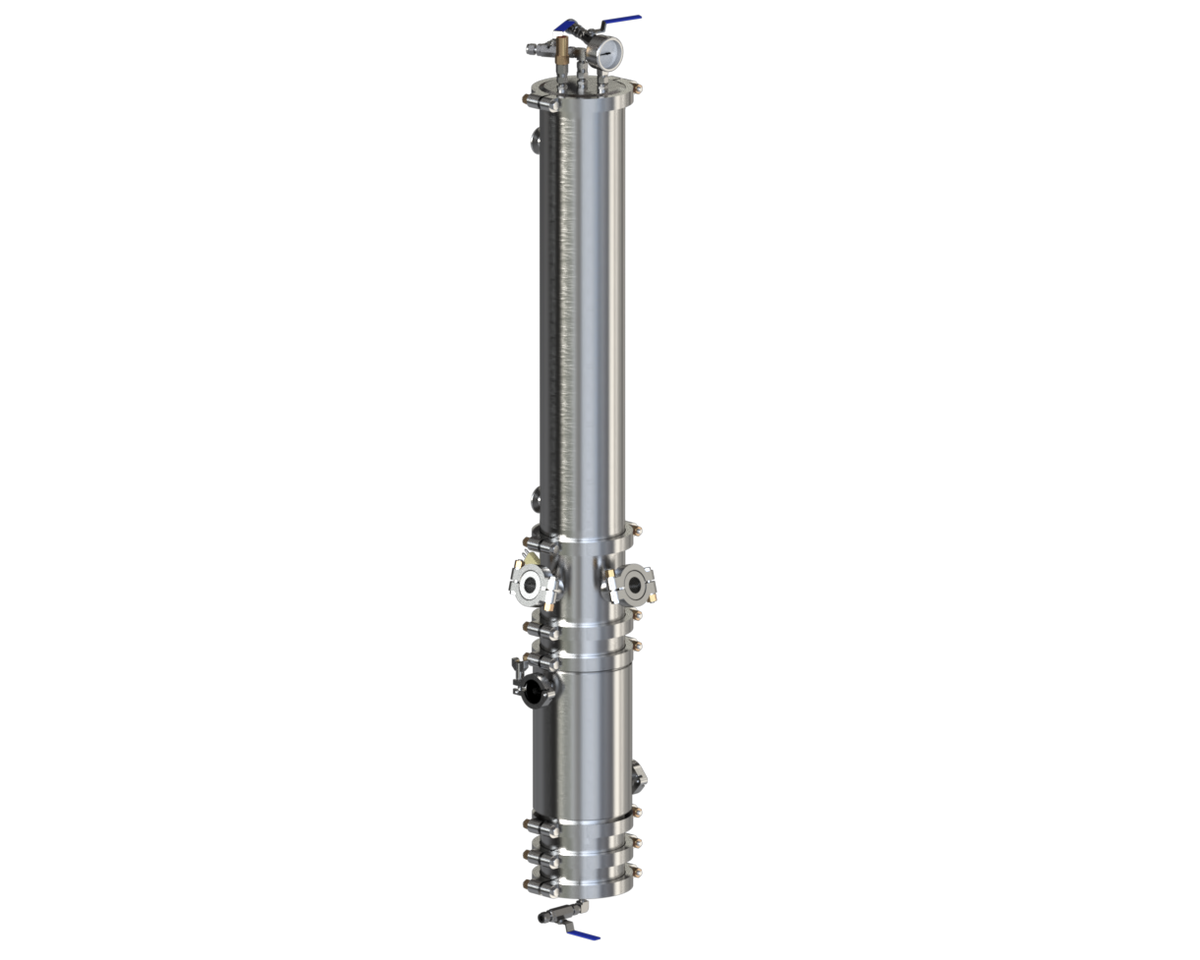

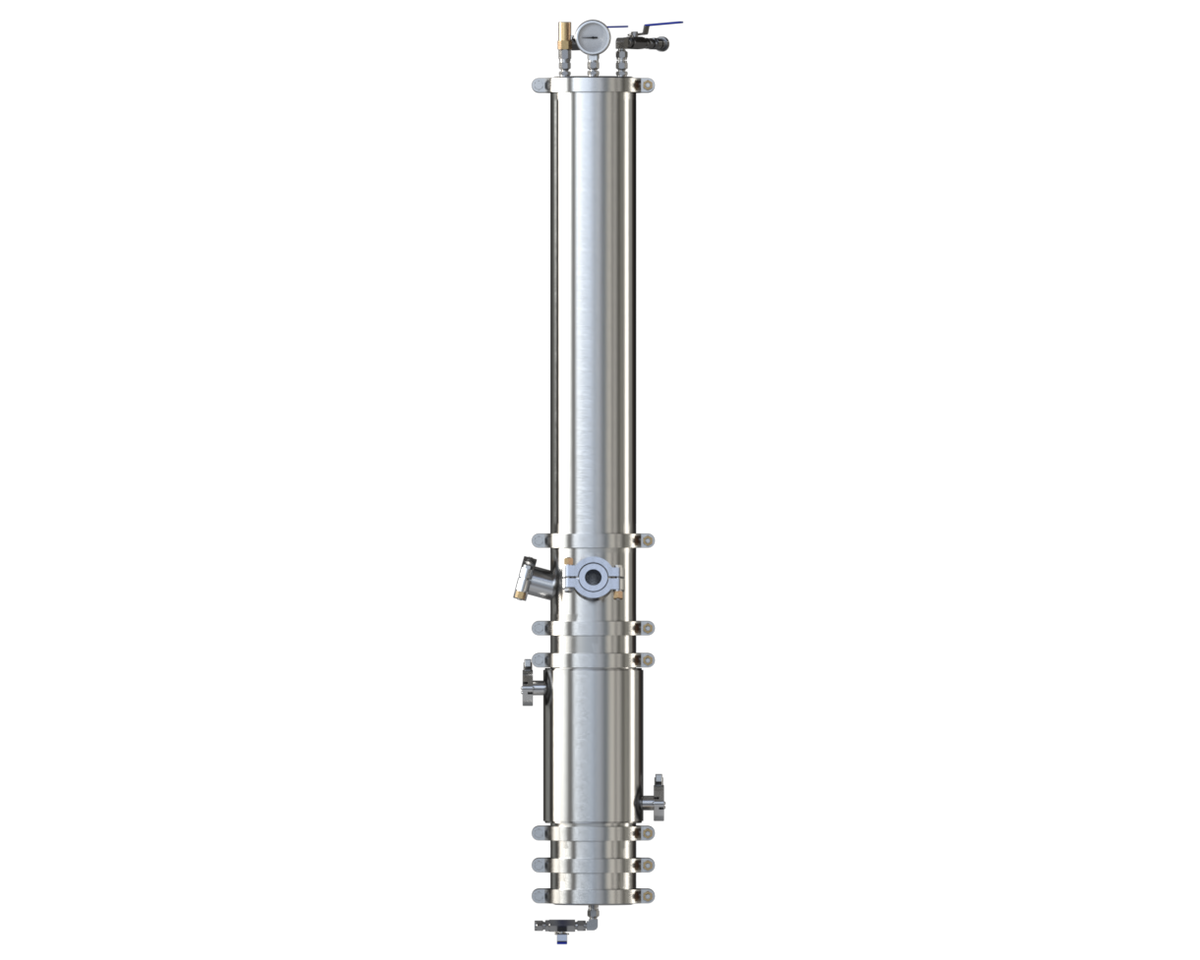

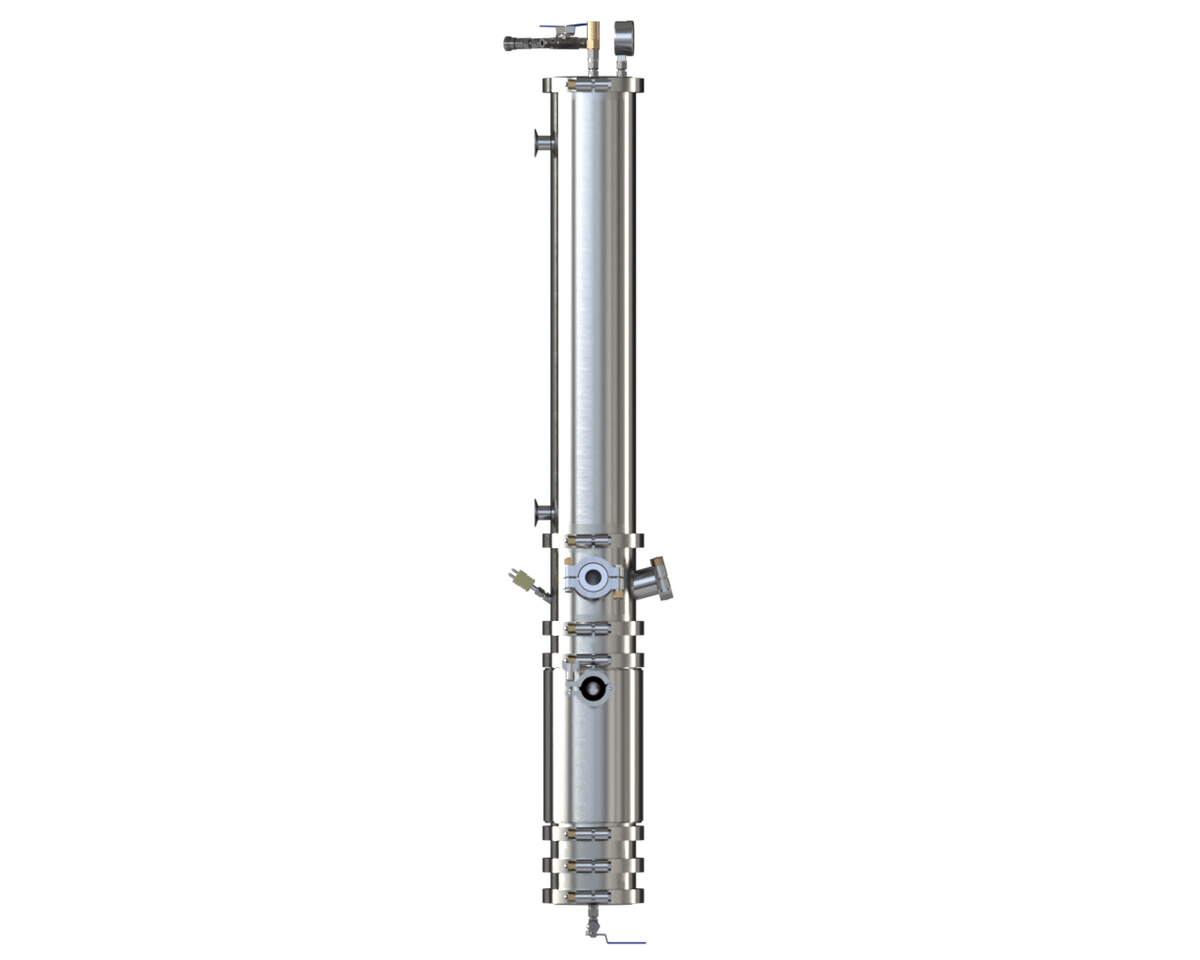

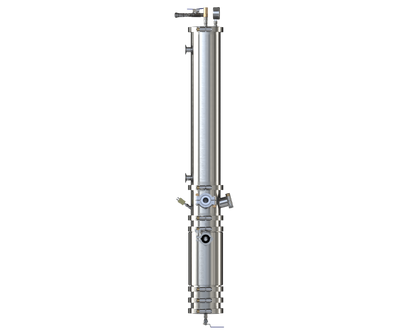

What is on the column, top to bottom

Position What it is
Top lid Two 3/8 in compression connections for material inlet, solvent injection, vacuum or N2 pressure assist, plus a 250 psi (17.2 bar) relief valve and a -30 inHg to 300 psi (-1.0 bar to 20.7 bar) compound gauge
Top spool 36 in, not jacketed
Sight spool Two 2 in sight ports. Metaglas glass, 232 psi (16 bar), -22 F to 536 F (-30 C to 280 C), per Metaglas's published ratings. Rayotek substituted when supply requires it, at 300 psi (20.7 bar). The Rayotek is the window named by part number in ECR-250902-R0 and the MetaClamp is not, so confirm the window with your certifier if you are matching an as built
Top filter Your choice of 50, 25, 10 or 5 micron. We run a 10 micron
Bottom spool 12 in, jacketed, 1/2 in FNPT jacket inlet and outlet. This is where the media goes
Bottom filters Two sintered discs, a 5 micron over a 1 micron, so the media stays in the column
Bottom lid One 3/8 in compression fitting with a ball valve on the outlet
Retention Two perforated plates and four drop-in rings, one plate group at each end of the media bed

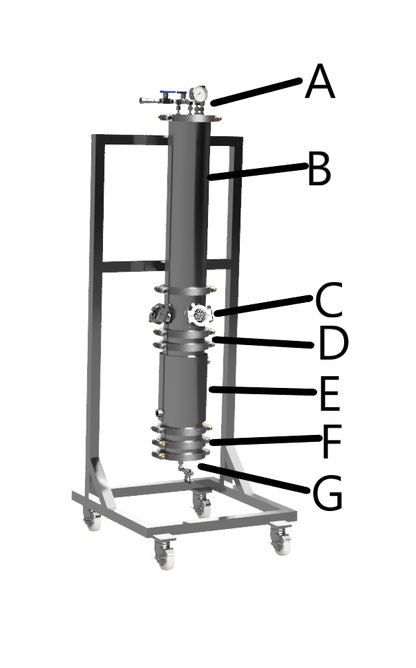

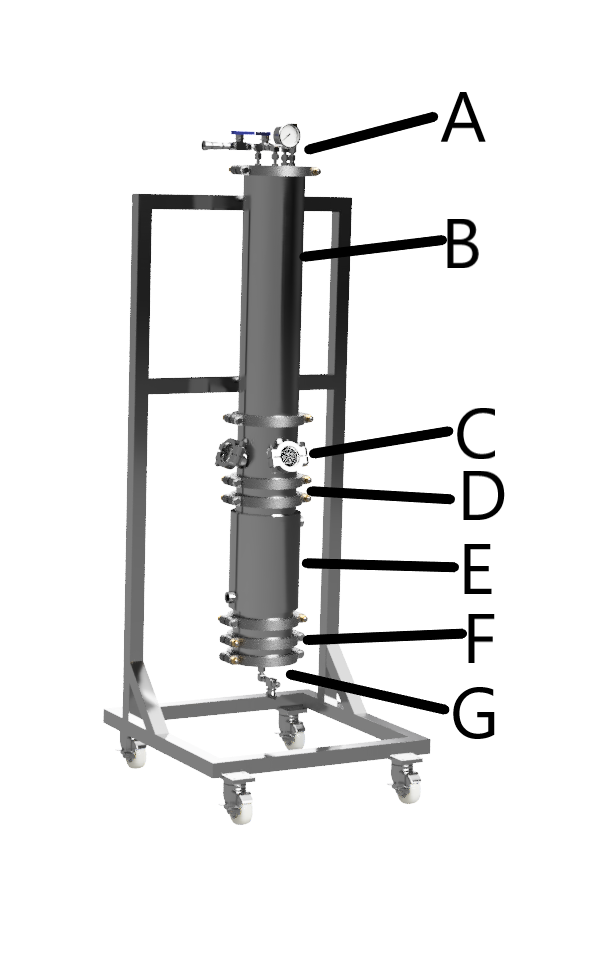

Rack Its own rolling rack, so it does not need space on your extractor frame

Gasket material is your choice of Buna-N, Viton or PTFE envelope. We recommend Viton.

How to load it

Build it from the bottom up. Both ends are built the same way as the bottom of a material column, just on finer discs. The column ships with both perforated plates and all four rings, so everything in this list is in the crate.

  1. Sintered discs at the outlet, a 5 micron with a 1 micron below it, each dull side up.
  2. Perforated plate.
  3. Filter paper.
  4. Two drop-in rings.
  5. Pack your media.
  6. Perforated plate on top of the media.
  7. Filter paper.
  8. Two drop-in rings, for weight.
  9. A 10 micron sintered disc on top, dull side up.

Color remediation column loading order, bottom up: 1 and 5 micron sintered discs, perforated plate, filter paper, two drop-in rings, packed media, then plate, paper, rings and a 10 micron disc on top

The plate and the rings on top are what hold the bed compressed. Activated alumina, carbon and the packaged remediation blends will mix around and channel if the bed is loose, and a column that has shifted mid run is no longer doing what you packed it to do. The 10 micron disc at the top is finer than the 50 micron at the bottom of a material column, so you filter harder at this stage, and it caps the bed so media cannot rise into the oleoresin sitting above it.

The full procedure for this column and for a material column is in How to Stack a Material Column and a CRC Column.

Certification is a separate line item

  • The column price above does not include certification
  • Peer Review and Certification for the Aqua-Tech CRC is $3,250 and buys a 3P Certz Certificate of Conformance and a 3P Certz serial number tag
  • Order it with the column if your jurisdiction, insurer or fire marshal wants a stamped file. Ask us and we will put it on the quote

Fitment and media

  • Plumbs into an existing closed loop hydrocarbon system between the material columns and the recovery vessel
  • Comes complete and on its own rack, so it goes onto a running system without a rebuild

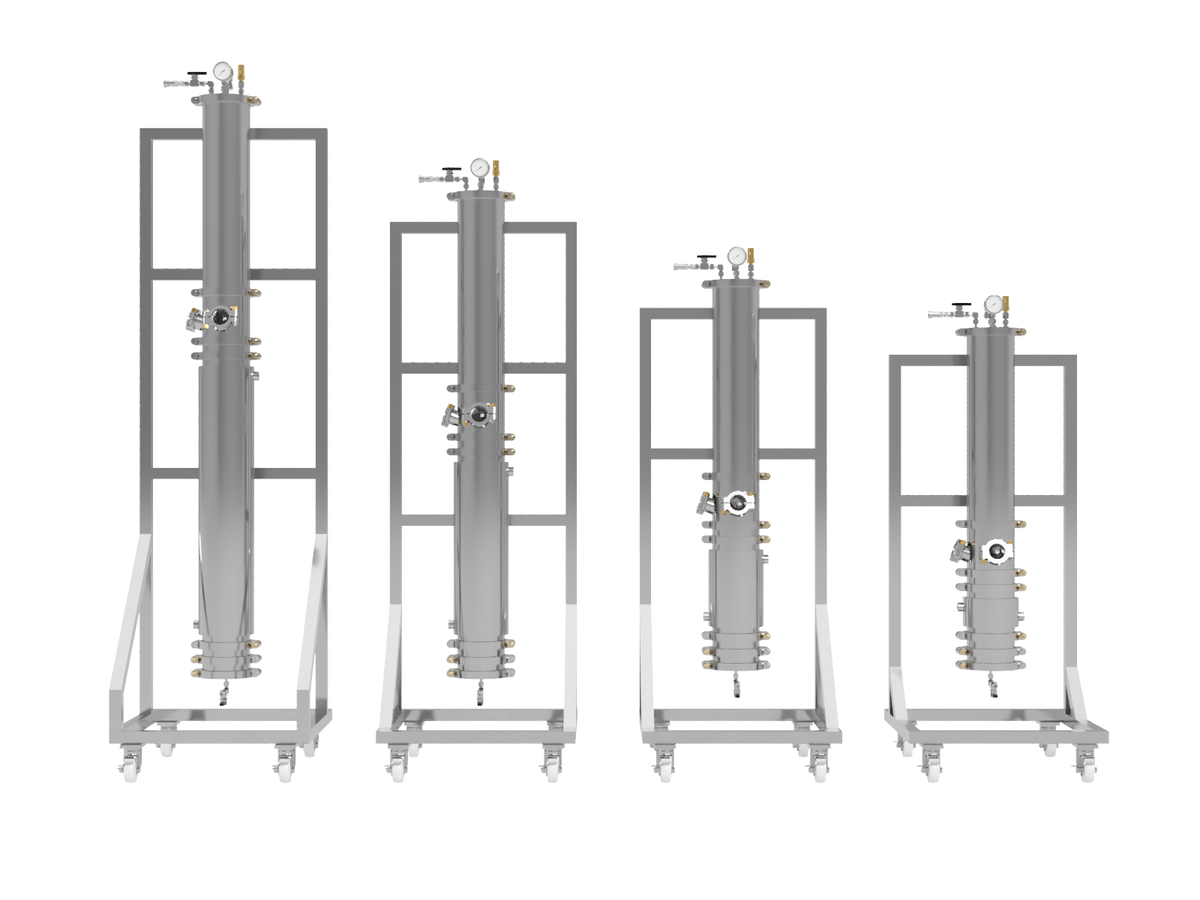

  • Custom spool heights on inquiry. The 36 in over 12 in is the standard, not the limit
  • Jacket runs on the same hot water or chilled circuit you already have, 1/2 in FNPT in and out
  • Which media to pack it with is the question that decides your result. Read What CRC Media Should You Use? before you buy media
  • Replacement filters: sintered filter plates and the perforated plate with rings

Lead time and shipping

  • 16 weeks
  • 450 lb and 600 lb, so both ship LTL freight. Nothing is charged for freight at checkout, it is quoted and invoiced after the crate is measured
  • Call 541-330-6409 if you want to talk through spool heights or media before you order

FITSPlumbs into an existing closed loop hydrocarbon extraction system between the material columns and the recovery vessel. The 6 in pairs with the N.B. Oler 20 LB and 40 LB Double Barrel systems. Comes on its own rolling rack so it needs no space on the extractor frame. Jacket runs on an existing hot water or chilled circuit through 1/2 in FNPT ports. Replacement filters are the sintered filter plates and the perforated plate with rings. Certification is not included and is a separate $3,250 line item.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Metaglas published ratings, MetaClamp Type 80, 2 in ASME BPE size →
the manufacturer's published 232 psi (16 bar) for the two 2 inch sight ports
What CRC Media Should You Use? →
Which media to pack the bottom spool with, and what each one actually removes
Remediation vs. Chromatography →
When a CRC column is the right tool and when it is not
Sintered Filter Technical Specifications →
The discs that sit under the media bed
Certifications and Compliance →
What the $3,250 Certificate of Conformance covers
Selling into Canada, CRN Registration →
What Canadian buyers need on the paperwork
Lead Times, Published →
Where the 16 weeks comes from

COMMON QUESTIONS

Is certification included in the price?

No. The column price is the column. Peer Review and Certification for the Aqua-Tech CRC is a separate $3,250 line item and it buys a 3P Certz Certificate of Conformance plus a serial number tag. Add it if an inspector, insurer or fire marshal is going to ask.

Are filters included?

Yes. The top filter and both bottom sintered discs ship with the column, along with two perforated plates and four drop-in rings, one plate group for each end of the media bed.

How do I load it?

Bottom up: sintered discs 5 micron over 1 micron each dull side up, perforated plate, filter paper, two drop-in rings, pack your media, then a second perforated plate, filter paper and two drop-in rings, with a 10 micron disc on top. Both ends are built the same way as the bottom of a material column, just on finer discs.

Why two perforated plates?

One at each end of the media bed. The bottom plate carries the filter paper and keeps the media off the discs. The top plate plus two rings hold the bed compressed, because activated alumina, carbon and the packaged remediation blends mix around and channel if the bed is loose.

Can I get spool heights other than 36 in and 12 in?

Yes, on inquiry. The 36 in over 12 in is the standard build because it is what most people run, not because it is all we make.

What media do I pack it with?

That is the decision that sets your result, and it depends on what you are pulling out. Read our article on CRC media before you buy any.

4 in or 6 in?

Match the column to the throughput of the system it is going on. The 6 in is the one that pairs with a 20 LB or 40 LB N.B. Oler system.

Does it need space on my extractor rack?

No. It comes on its own rolling rack, which is the point of the stand-alone version.

What runs the jacket?

The same hot water or chilled circuit you already have, through 1/2 in FNPT ports.

What is on the top lid?

Two 3/8 in compression ports, a 250 psi (17.2 bar) relief valve and a -30 inHg to 300 psi (-1.0 bar to 20.7 bar) compound gauge.

Is the sight glass Metaglas or Rayotek?

Whichever is in stock. They are not identical on paper: Metaglas publishes 232 psi (16 bar) and -22 F to 536 F, which is -30 C to 280 C, for the 2 inch MetaClamp, and Rayotek publishes 300 psi (20.7 bar) and -40 F to 572 F, which is -40 C to 300 C. The Rayotek is also the one named by part number in ECR-250902-R0. Both are fitted in this spool, so if you are certifying or matching an as built, confirm the window with your own certifier.

What is the lead time?

16 weeks.

How does it ship?

LTL freight, at 450 lb or 600 lb. Nothing is charged for freight at checkout. We measure the crate and invoice the freight after.
