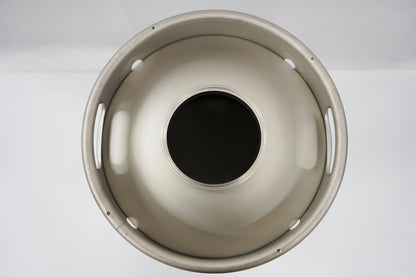

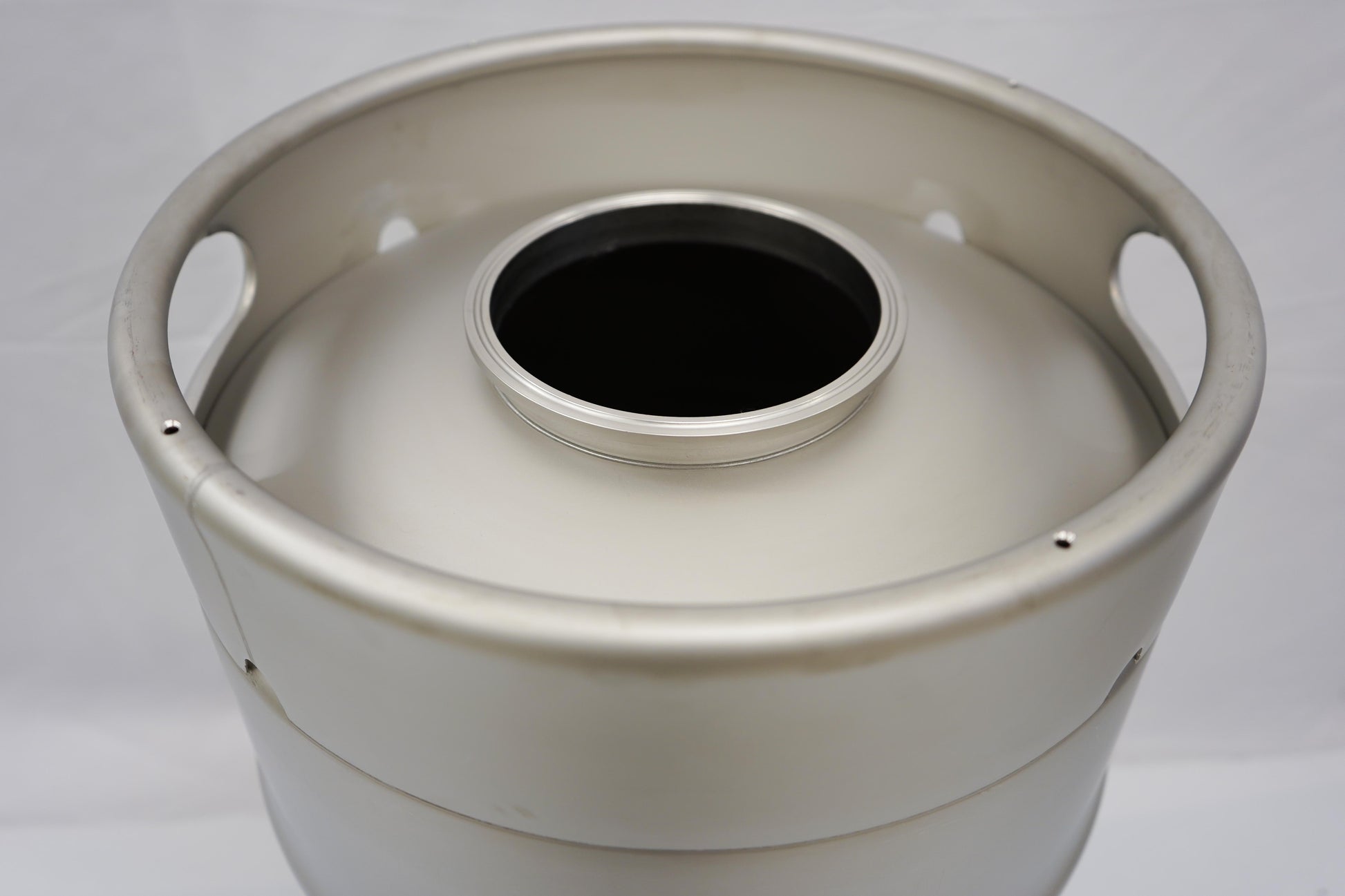

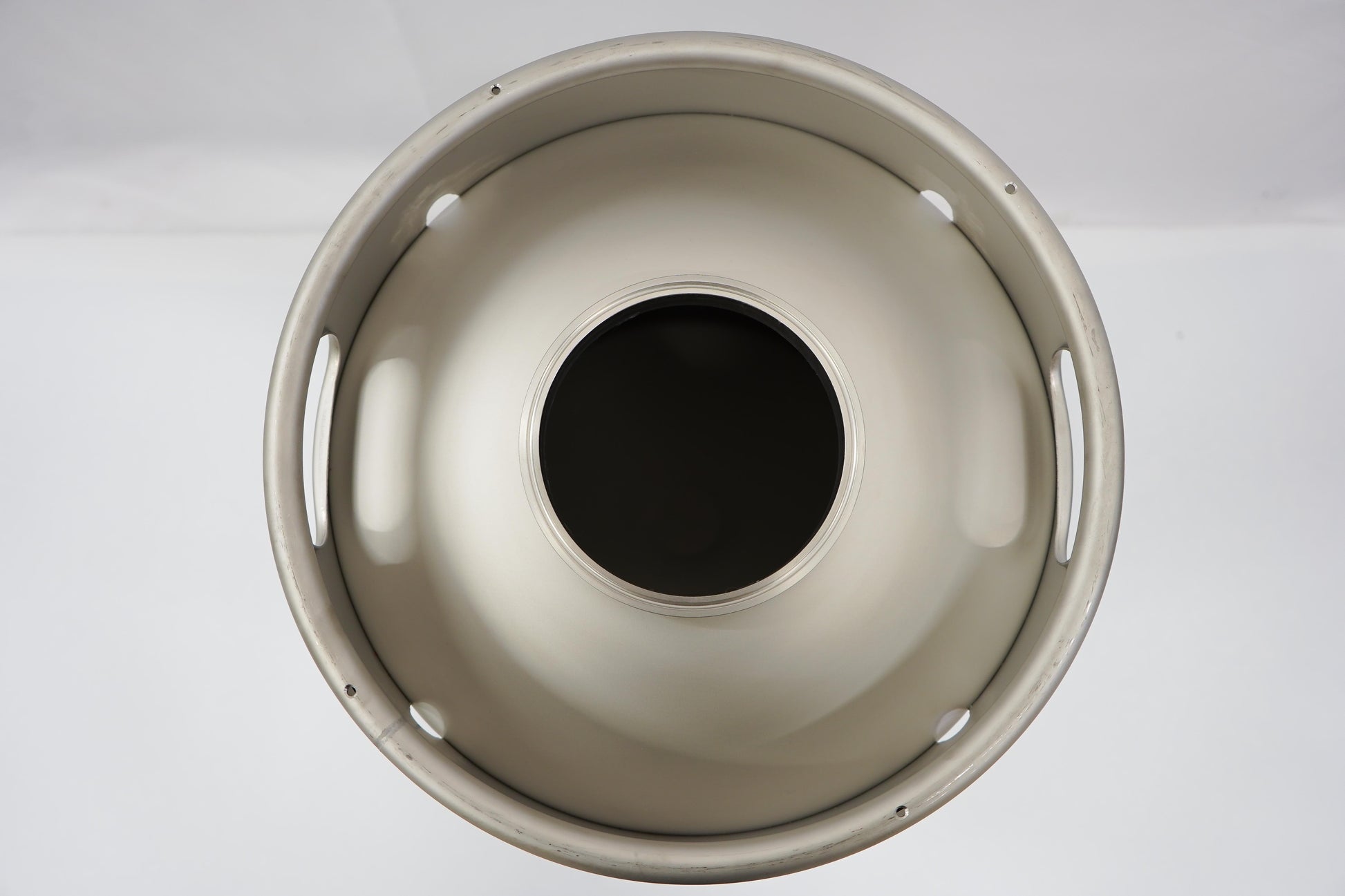

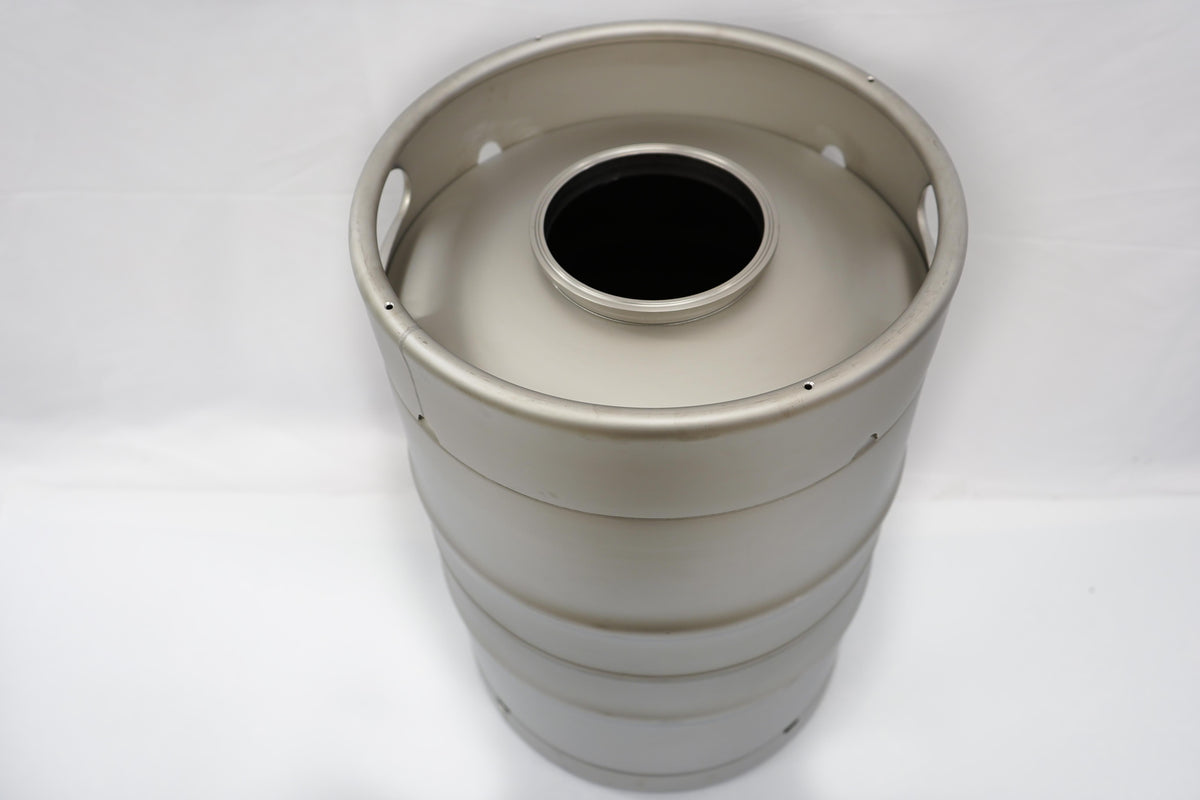

Stainless keg with 6 in. tri-clamp opening in the top
NB-KEG-TC6-QTR

Stainless Keg, 6 in. Tri-Clamp Top, 304L, 15.5 and 7.75 gal

$165.00IN STOCK
Ships in 1 business day
2 sizes, $165.00 to $180.00
SELECT SIZE

ABOUT THIS PART

A standard stainless keg with the top cut out and a 6 in. tri-clamp ferrule welded in. It is for storing, moving and decanting ethanol at low pressure. It ships with no cap, clamp or gasket.

SPECIFICATIONS

Material304L stainless
Opening6 in. tri-clamp ferrule, welded into a 5.87 in. hole
Pressure, rated30 psi (2 bar), keg rating, pressure tested by N.B. Oler
Pressure, recommended working15 psi (1 bar) or below
Half barrel15.5 gal (58.7 L), 23-3/8 in. tall, 16-1/8 in. dia., $180
Pony keg7.75 gal (29.3 L), quarter barrel shell, $165
Pressure vessel statusNot a pressure vessel. No ASME stamp
JacketedNo
Sanke fittingRemoved
Not includedCap, clamp, gasket, dip tube
TECHNICAL DETAILS

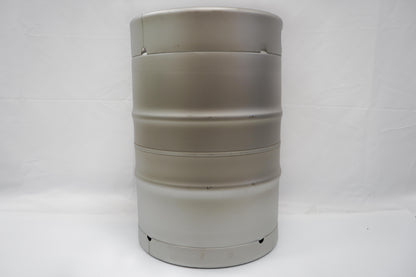

A standard stainless beer keg with the top cut out and a 6 inch tri-clamp ferrule welded in its place, so you get a large sanitary opening on a vessel that already rolls on every keg dolly. 304L stainless, built for ethanol handling. 15.5 gallon half barrel $180, 7.75 gallon pony keg $165.

These are the last units of an old run. When they are gone that is the end of the run unless somebody wants a batch.

Specification

Material 304L stainless steel
Opening 6 in tri-clamp ferrule, welded into a 5.87 in hole cut in the top
Pressure, rated 30 psi (2 bar), the keg rating, pressure tested by us
Pressure, recommended working 15 psi (1 bar) or below
Half barrel 15.5 gallons (58.7 L), 23-3/8 in tall, 16-1/8 in diameter, $180
Pony keg 7.75 gallons (29.3 L), quarter barrel shell, $165
Pressure vessel status Not a pressure vessel. No ASME stamp, not in any of our certification reports
Built Bend, Oregon

If you need more than 15 psi (1 bar) to move ethanol out of a keg, something else in your setup is wrong, and turning the regulator up is not the fix. We are not going to pretend a keg is something it is not. It is a robust, sanitary, low pressure liquid vessel with a big lid.

Quarter barrel shells come in a squat and a slim version. We will confirm the exact height and diameter of the pony keg before it ships if the footprint matters to you.

What we do to it, and what it is for

  • We start with a finished keg, cut a 5.87 inch hole in the top, and weld a 6 inch tri-clamp ferrule in. About an hour of work per keg.
  • The 6 inch opening is the whole point. A hand, a hose, a filter sock or a dip tube go straight in, and you can see and scrub the inside, instead of working through a 2 inch sanke opening with a bent wand.
  • We made these for ethanol. Bulk storage and transfer, decanting, holding a batch between steps, anything where you want a sealed sanitary container one person can move and that does not cost what a jacketed vessel costs.
  • The shell keeps standard keg dimensions, so it fits any keg dolly, rack, cooler or keg washer you already own.

What comes with it, and what does not

  • The keg with the ferrule welded on. That is it.
  • No cap, no clamp, no gasket. Almost everyone who buys one of these wants something specific on the lid, a port arrangement, a dip tube, a valve, a fitting for their own line, so we do not guess. Email info@nboler.com with what you want on the lid and we will build the cap to suit.
  • Our 6 inch tri-clamp end caps, 6 inch high pressure clamps and 6 inch gaskets are sold separately and any of them will fit this.
  • No dip tube. We do not stock one, and if you want one it goes on the custom cap.
  • Not jacketed, so there is no way to heat or cool it through the wall.
  • The sanke fitting is gone, so a beer coupler will not attach.
  • Not rated for hydrocarbon service at pressure, and it cannot be certified as a pressure vessel.

Stock, and ordering a batch

These ship from the shelf in Bend. When they sell the listing goes empty, and we have not run a batch of these in a long time. We can make them again, but it takes a minimum of 10 to 20 units to be worth setting up for. Email info@nboler.com if you want a quantity quoted. One or two at a time is not something we can restart production for, and we would rather tell you that than take your money and leave you waiting.

$220 was our regular price on the half barrel. These are the last units of an old run and we would rather see them working than sitting on the floor.

More on where a stamped pressure vessel is required and where it is not: ASME vs Non-ASME Extraction Equipment.

FITSTakes any 6 inch tri-clamp cap, clamp and gasket, all sold separately, including our own 6 inch tri-clamp end caps and 6 inch high pressure clamps. The shell keeps standard keg dimensions, so it fits any keg dolly, rack, cooler or keg washer you already own. It does NOT come with a cap, clamp, gasket or dip tube, it is NOT jacketed, it is NOT an ASME pressure vessel and cannot be certified as one, and it will NOT accept a beer coupler because the sanke fitting has been removed. Not rated for hydrocarbon service at pressure.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Stainless Steel: 304, 316 and 316L →
The 304L shell on this keg, and what the grade buys you
Tri-Clamp Pressure Ratings by Clamp Style and Size →
What the 6 inch joint on the lid you put on it is rated to
Choosing the Right Gasket Material for Tri-Clamp Connections →
Which gasket goes in the 6 inch joint on the lid you put on it
ASME vs Non-ASME Extraction Equipment →
This keg is not a pressure vessel, and this is where a stamp is and is not required
Storage for THC, CBD and CBN →
What to think about when holding product between steps

COMMON QUESTIONS

Does it come with a lid?

No. No cap, no clamp, no gasket. Most buyers want something specific on top, so we build the cap to order. Email info@nboler.com with what you need.

What pressure should I actually run?

15 psi (1 bar) or below. If you need more than that to move ethanol out of a keg, something else in your setup is wrong.

Is it a pressure vessel?

No. It has no ASME stamp, is not in any of our certification reports, and cannot be certified as one. It is a low pressure sanitary vessel.

What clamp and gasket do I need?

A 6 inch tri clamp and a 6 inch gasket, both sold separately here. Our 6 inch tri clamp end caps also fit.
